Gearshift Lever

Gearshift Lever

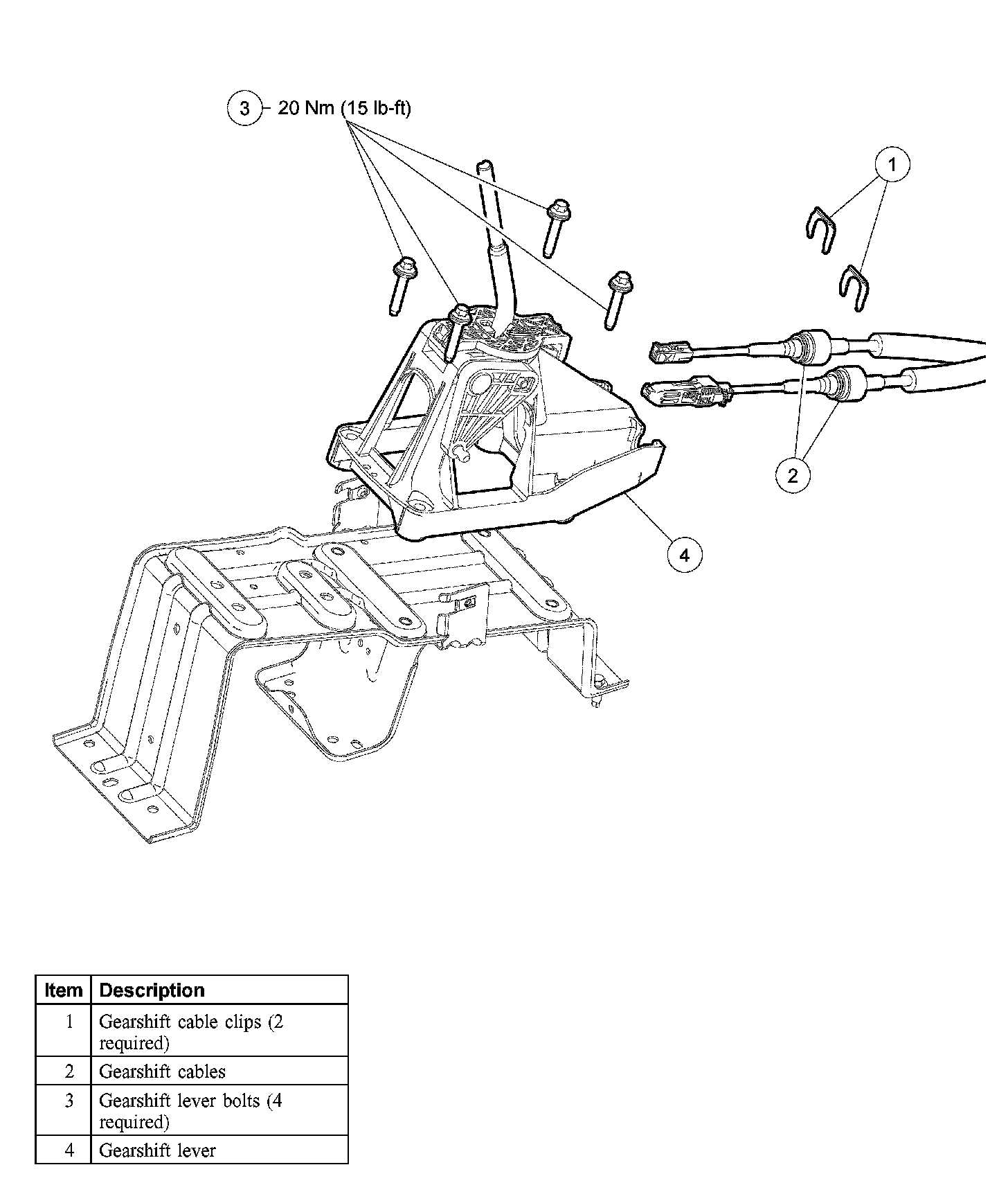

Removal
1. Remove the floor console.
2. Remove the 2 gearshift cable clips.
3. Disconnect the gearshift cables from the gearshift lever.
4. Remove the 4 gearshift lever bolts.
5. Remove the gearshift lever.

Installation
1. Position the gearshift lever.

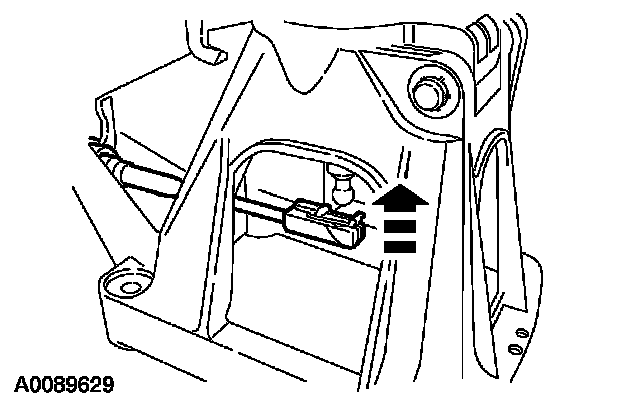

2. Connect the select cable.

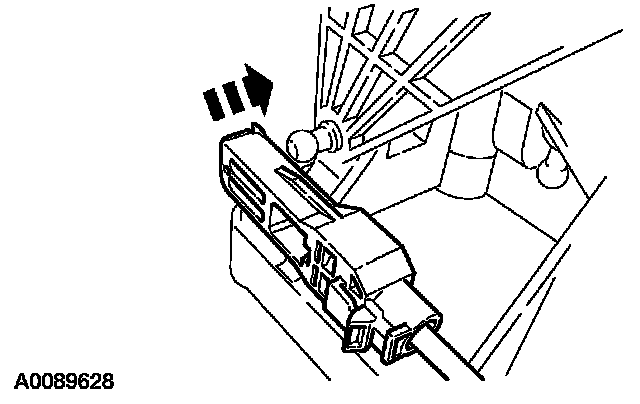

3. Connect the gearshift cable.

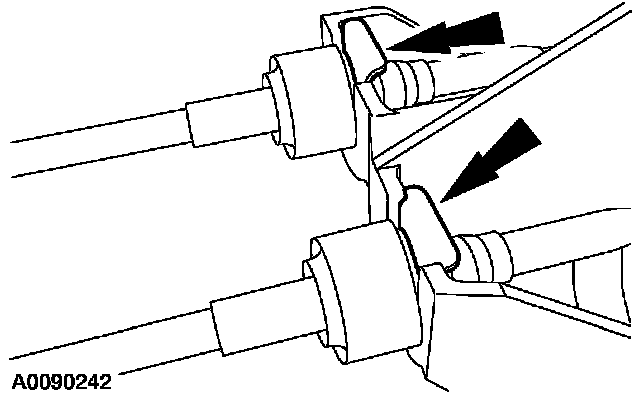

4. CAUTION: Make sure the clips are set completely within the cable adapter groove and fully seated.

Install the 2 gearshift cable clips.
5. Install the 4 gearshift lever bolts.
^ Tighten to 20 Nm (15 ft. lbs.).
6. Adjust the gearshift cables.
7. Install the floor console.
