ideal diode projects:

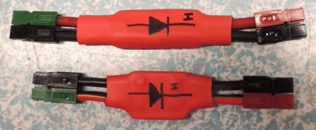

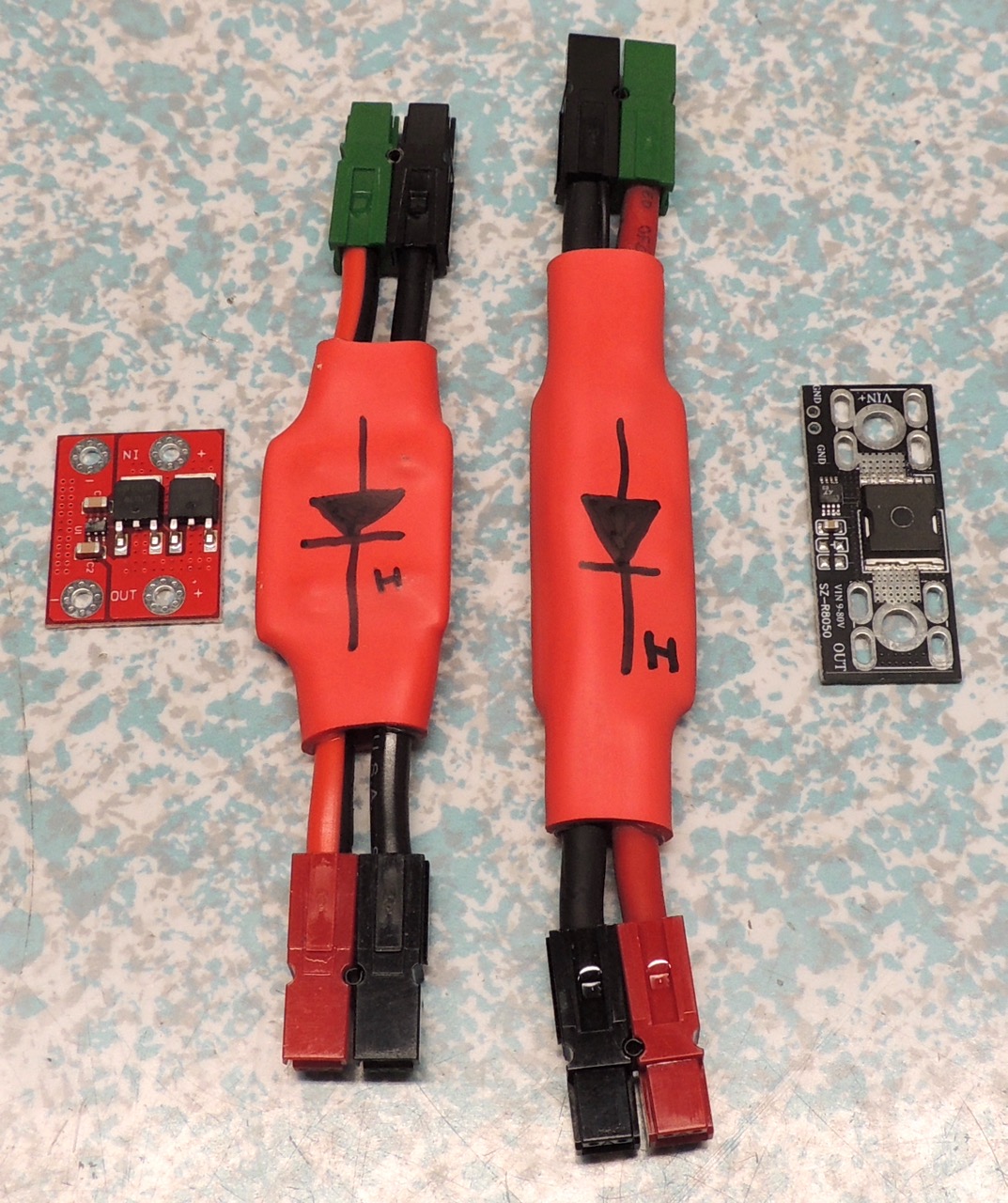

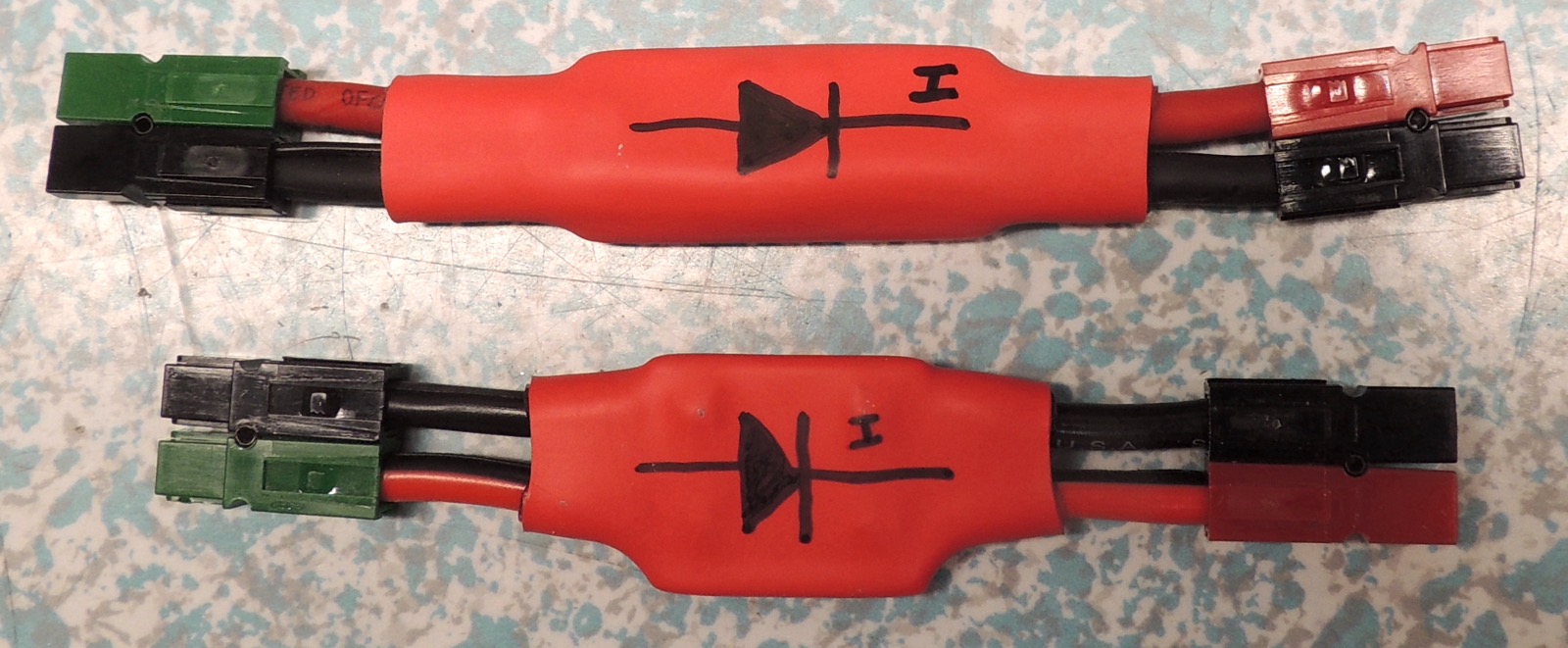

After deciding ideal diodes weren't very useful for solar panel combiners, I decided to try to build a few for
use in isolating batteries. Similar to isolating with schottky modules, ideal diodes promise slightly higher
charge voltages.

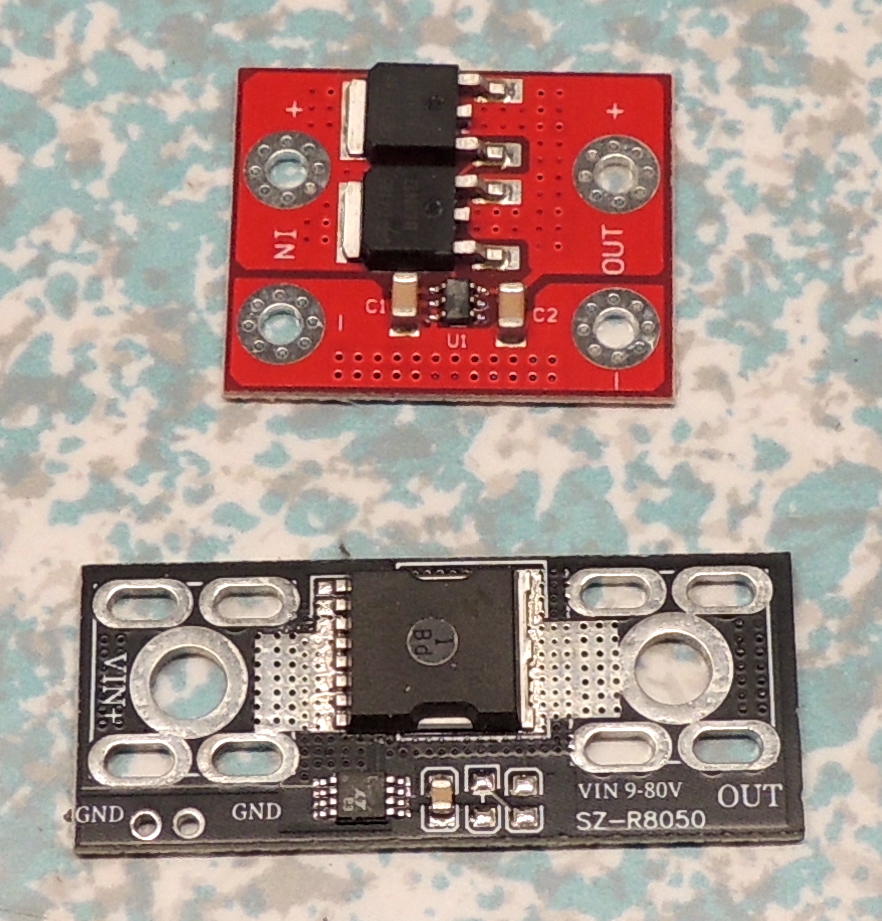

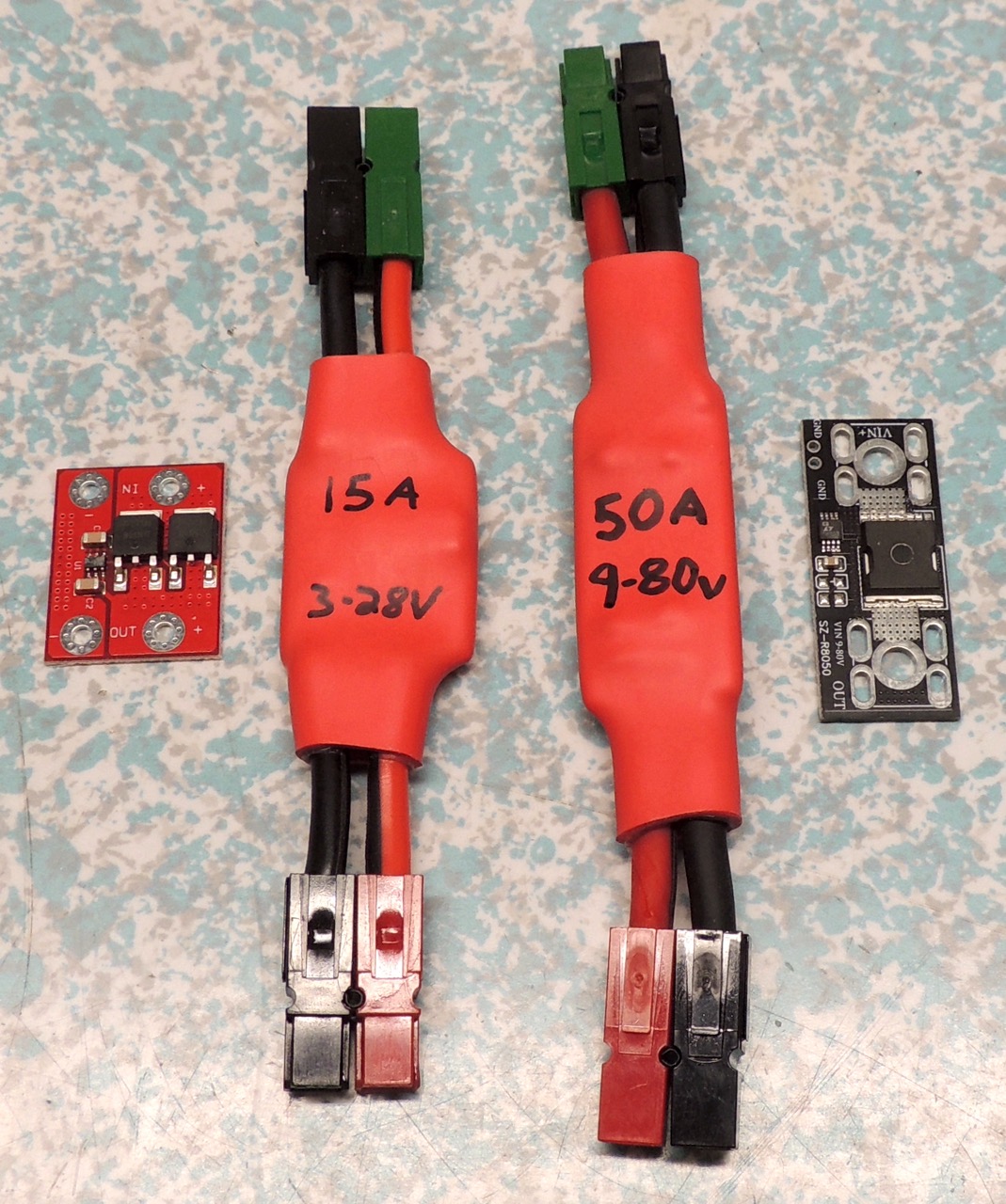

15A 3-28V ideal diode project

50A 9-80V ideal diode project

ideal diodes (in diodes)

DSCN6736	DSCN6738	DSCN6759	DSCN6761
