50A 9-80V ideal diode project:


After finishing the 15 amp ideal diode module for solar testing, I went ahead and made a larger module for
battery isolation using a 50 amp module, which also had a higher reverse-voltage rating of 80 volts. But that
comes at a price, the minimum voltage goe up from 3 to 9 volts.

It's a shame this diode doesn't go up to 100 volts, because that would be ideal for my 4-panel solar frames.

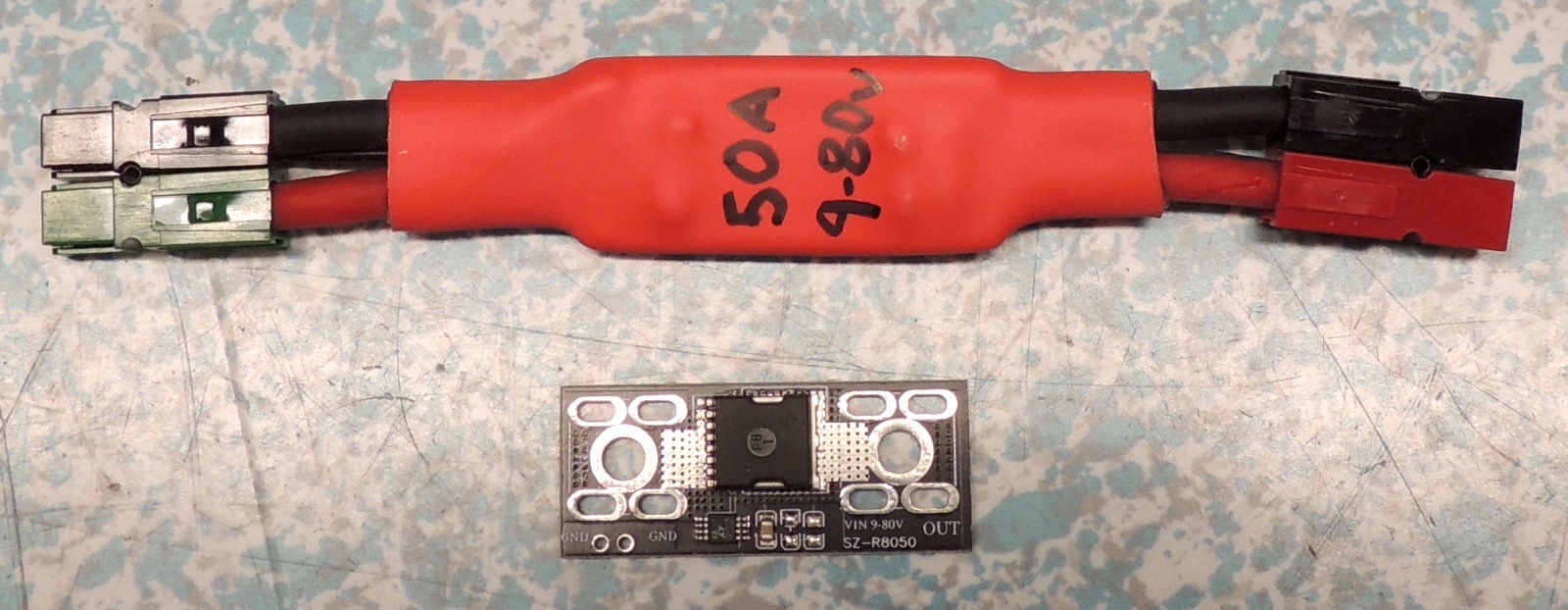

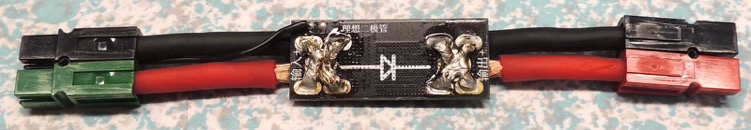

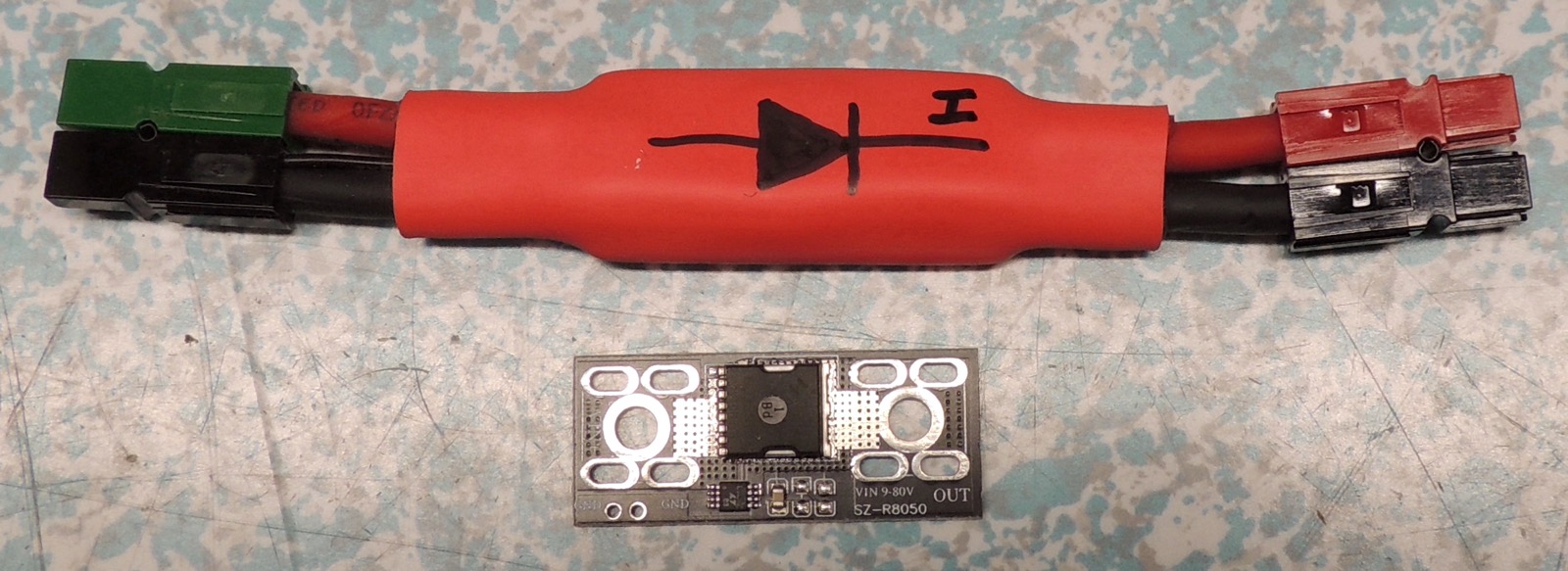

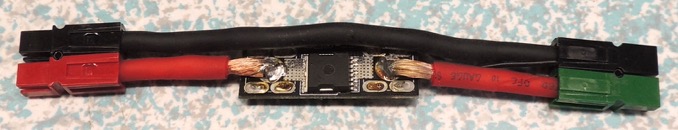

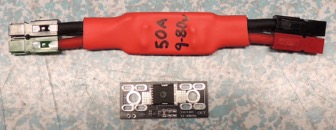

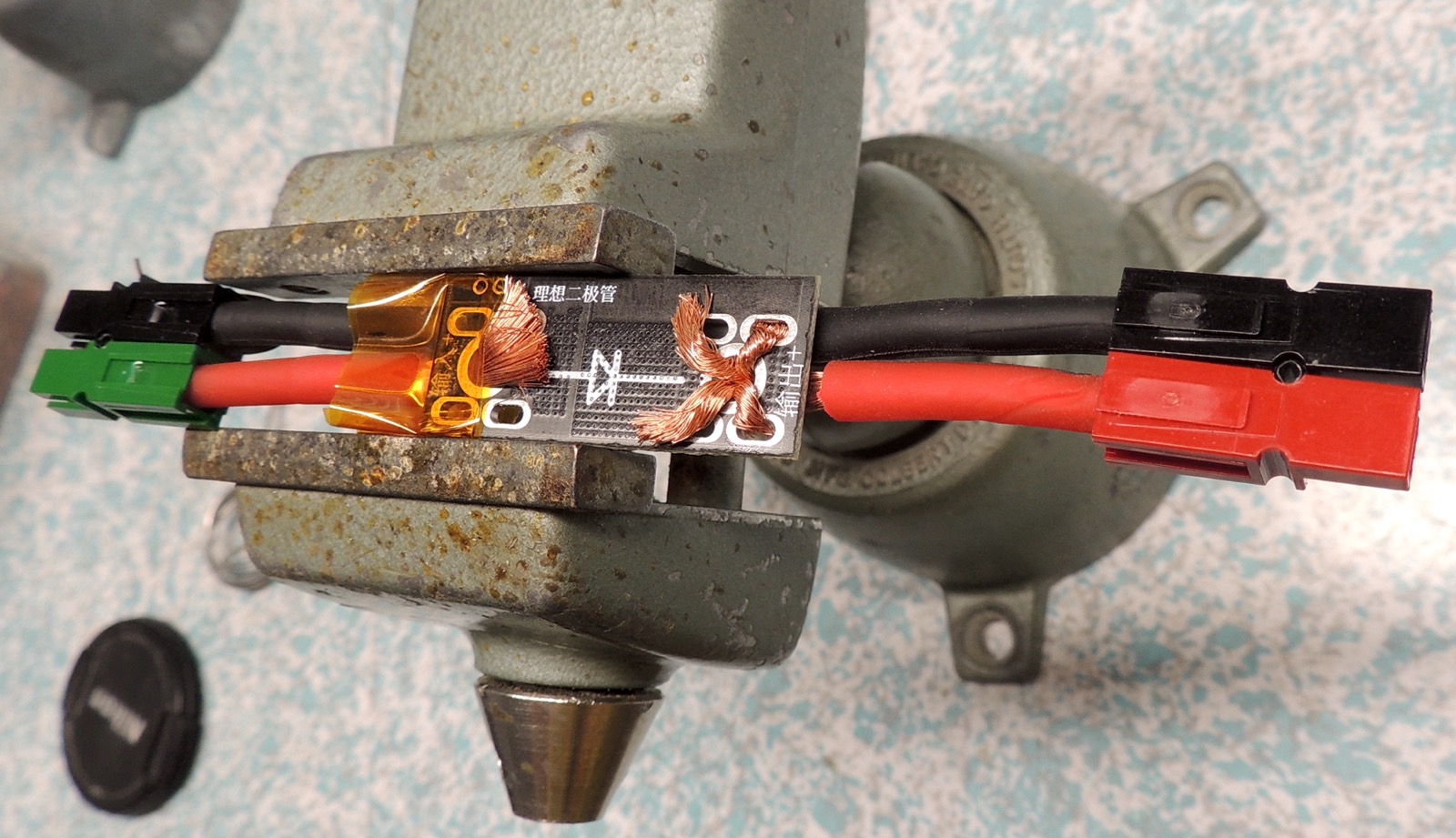

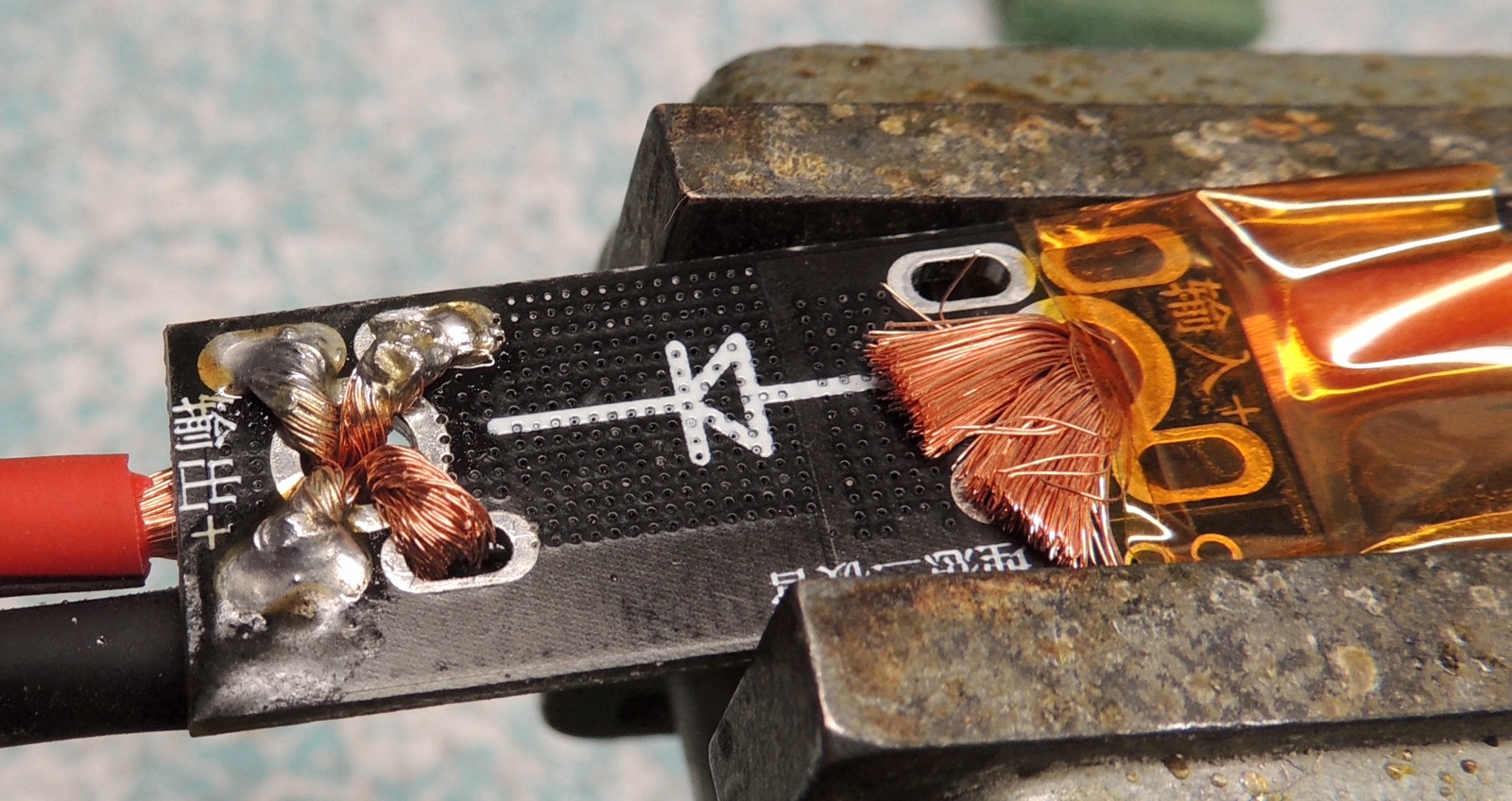

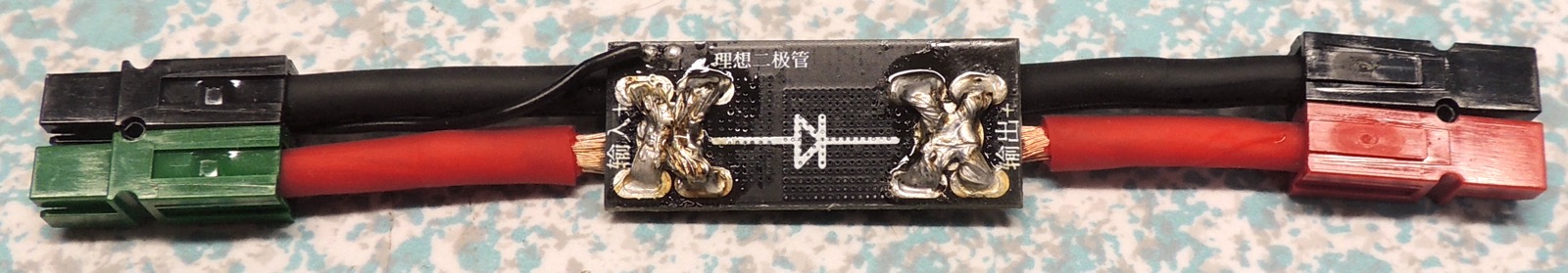

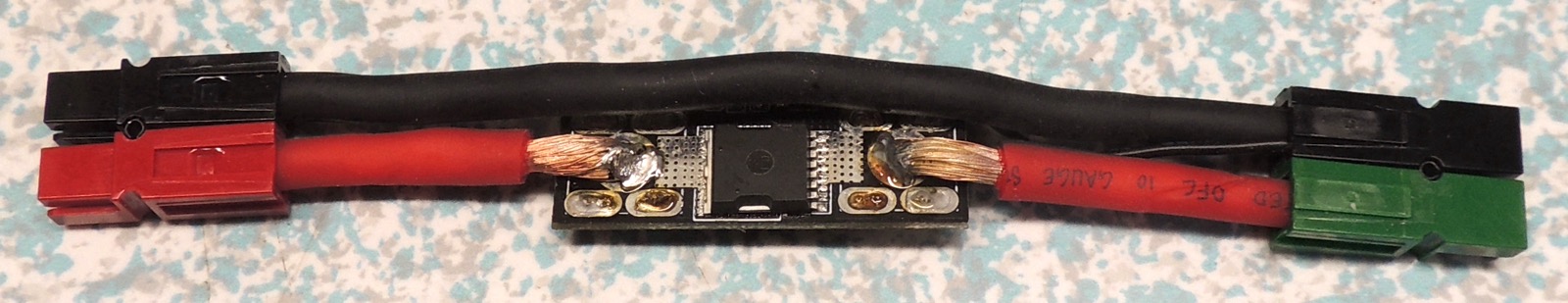

DSCN6719 (I split the strands up for the four radial holes)	DSCN6721 (three down, one to go)	DSCN6729 (soldering complete on bottom)	DSCN6732 (soldering complete on top)	DSCN6743 (comparing covered with module)	DSCN6746 (comparing covered with module)

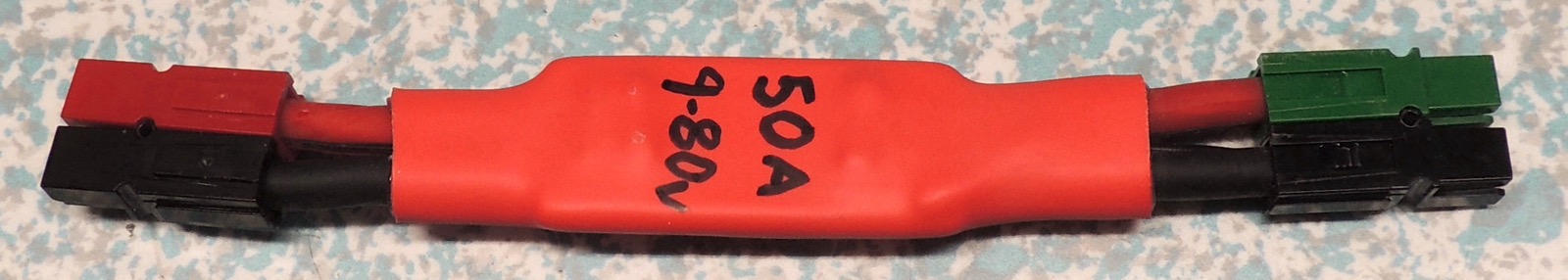

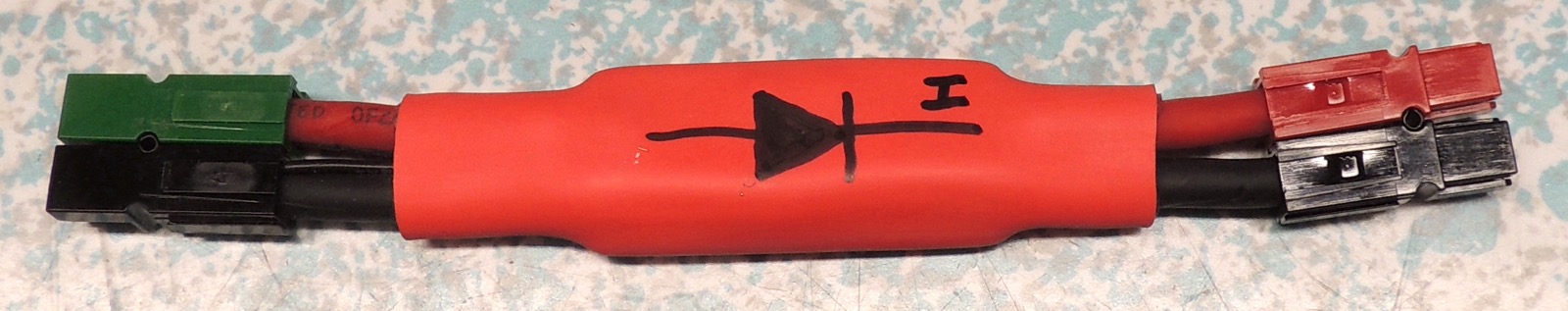

DSCN6754 (heat shrinked and marked)	DSCN6757 (heat shrinked and marked)
