Transfer Case Rear Output Shaft Oil Seal

Transfer Case Rear Output Shaft Oil Seal





Special Tool(s)

Removal
1. Remove the transfer case rear output shaft flange.

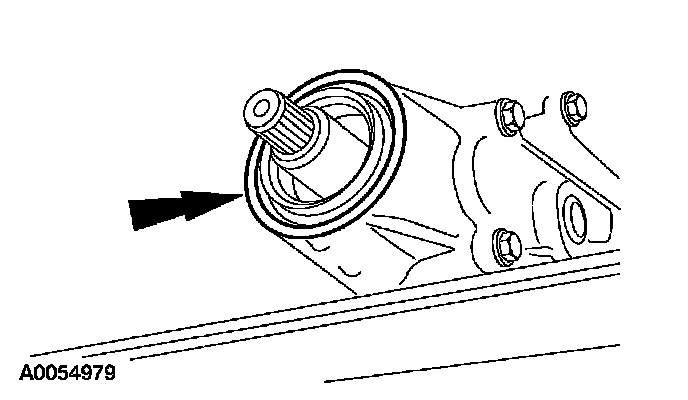

2. Remove the transfer case rear output shaft oil (pinion) seal.

Installation

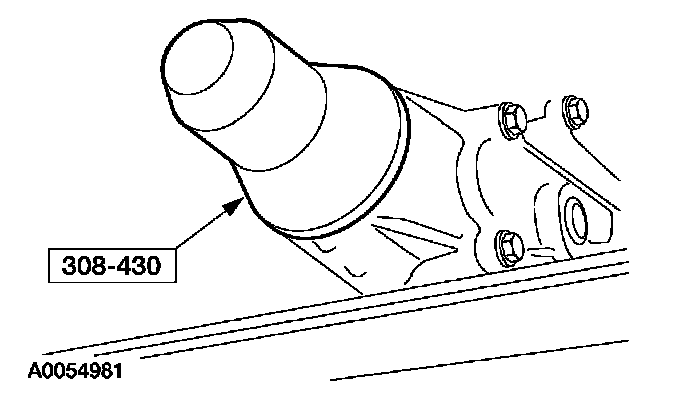

1. Using the special tool, install the transfer case rear output shaft oil (pinion) seal.
2. Install the transfer case rear output shaft flange.
