Transfer Case Inner Halfshaft Seal

Transfer Case Inner Halfshaft Seal

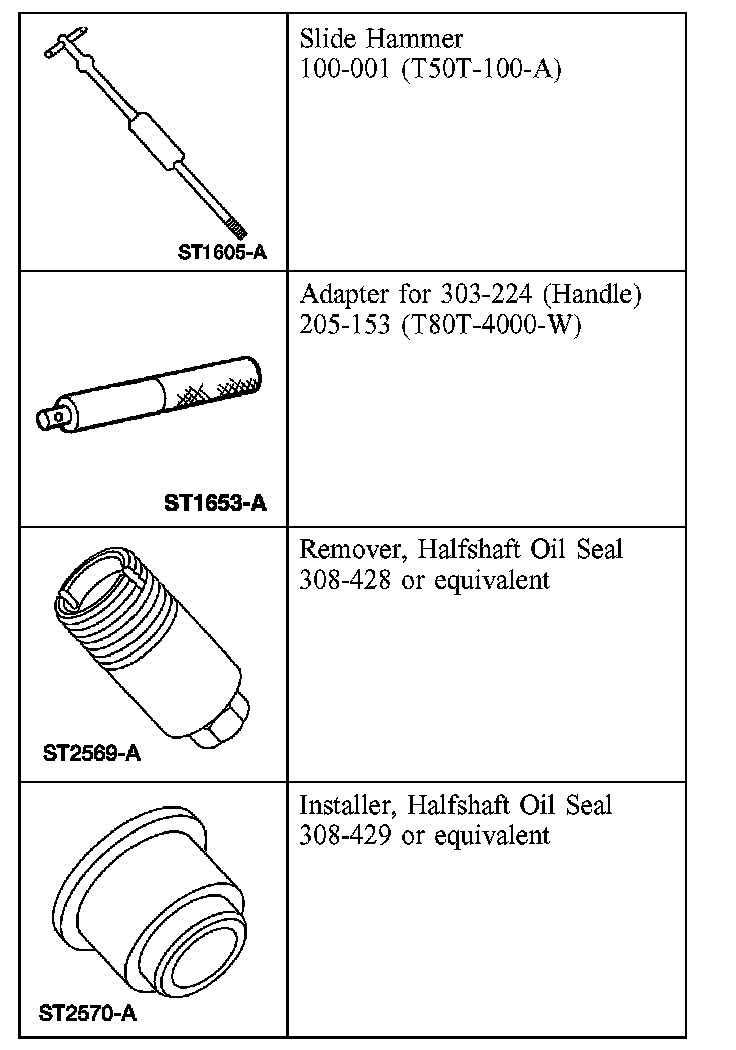

Special Tool(s)

Removal
1. Remove the transfer case.

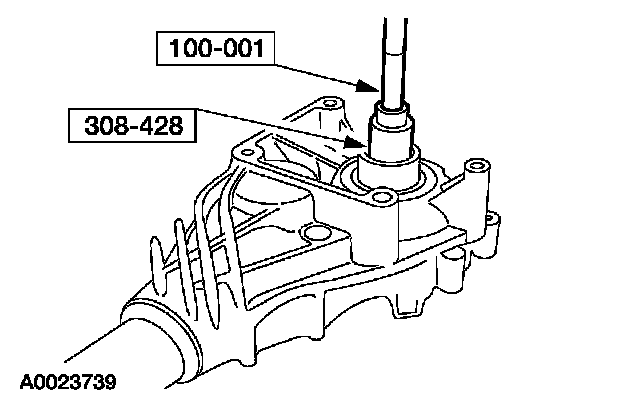

2. Using the special tools, remove the transfer case inner halfshaft seal.

Installation





1. NOTE: Clean the inside of the driven gear of foreign material prior to installation.

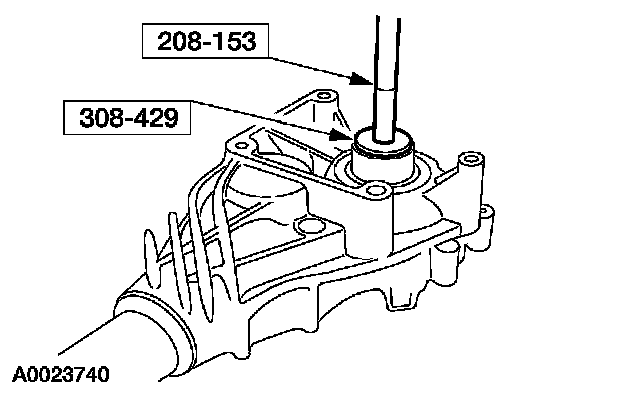

Using the special tools, install the transfer case inner halfshaft seal.
2. Install the transfer case.
