Transfer Case Rear Output Shaft Flange Dust Shield

Transfer Case Rear Output Shaft Flange Dust Shield

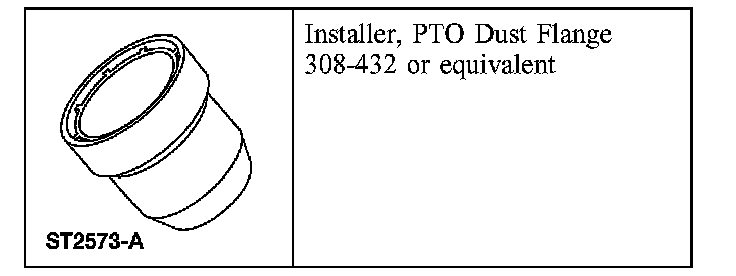

Special Tool(s)

Removal
1. Remove the transfer case rear output shaft flange. Refer to Transfer Case Rear Output Shaft Flange.
2. Remove the transfer case rear output shaft flange dust shield.

Installation

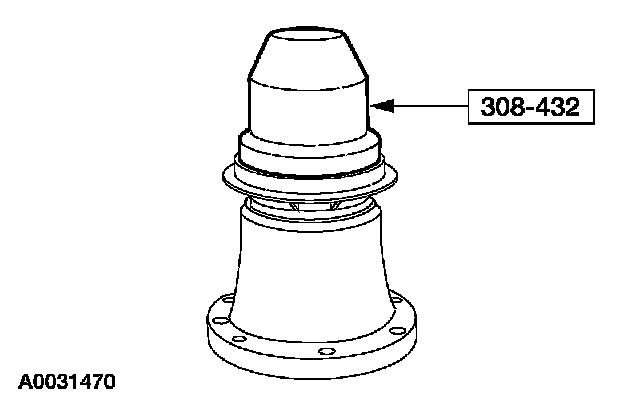

1. Using the special tool, snap the dust shield onto the transfer case rear output shaft flange.
2. Install the transfer case rear output shaft flange.
