Transaxle Support Insulator-LH

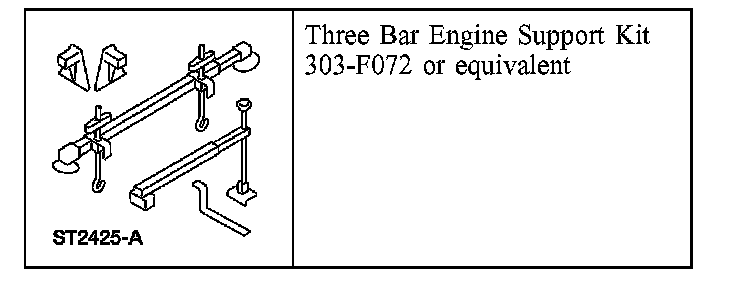

Special Tool(s)

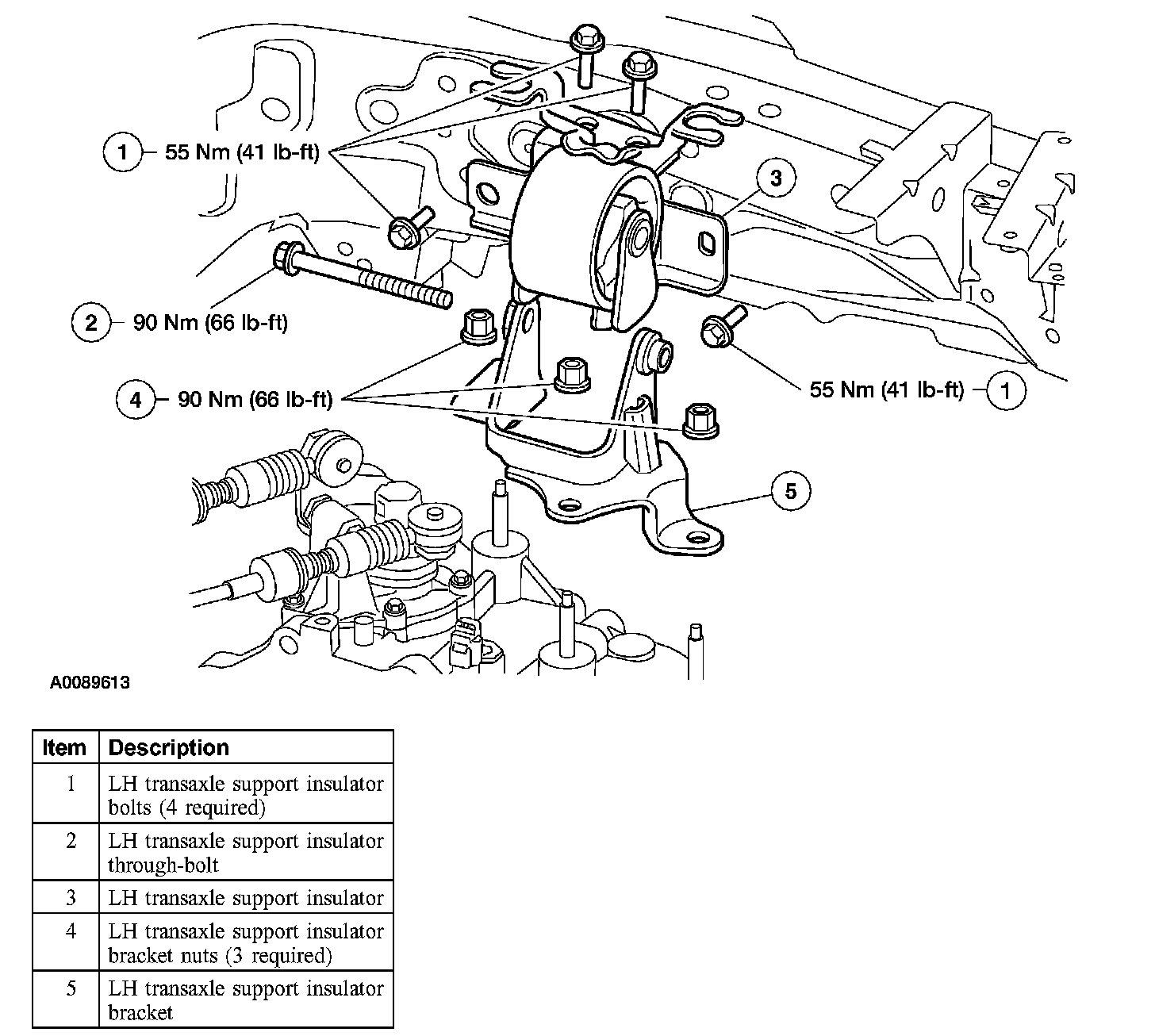

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the air cleaner.





3. Using the special tool, support the engine.
4. Remove the 4 LH transaxle support insulator bolts.
^ To install, tighten to 55 Nm (41 ft. lbs.).
5. Remove the through-bolt and the LH transaxle support insulator.
^ To install, tighten to 90 Nm (66 ft. lbs.).
6. Remove the 3 nuts and the LH transaxle support insulator bracket.
^ To install, tighten to 90 Nm (66 ft. lbs.).
7. To install, reverse the removal procedure.
