Transaxle Front Support Insulator

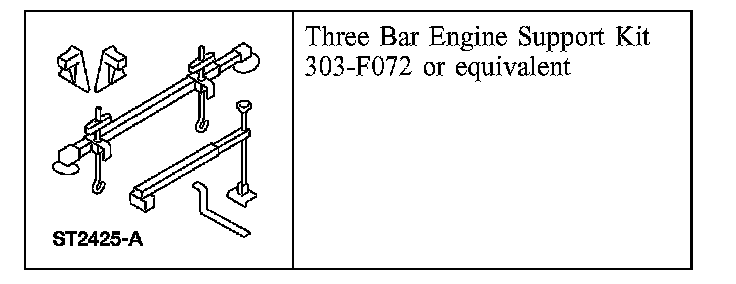

Special Tool(s)





Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

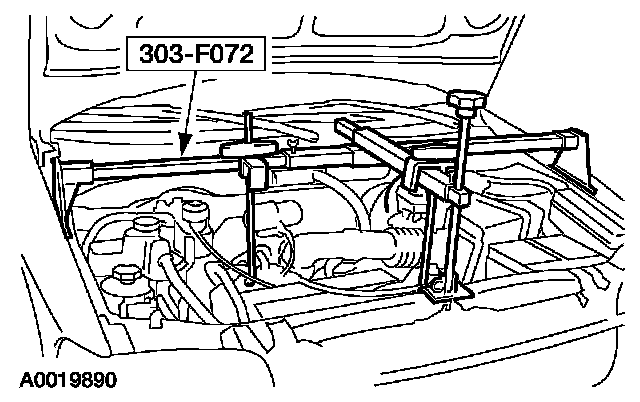

2. Using the special tool, support the engine.





3. Remove the front-to-aft crossmember.

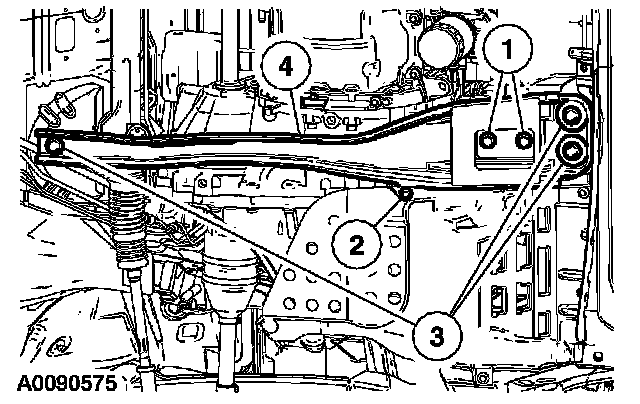

1 Remove the 2 transaxle front support insulator bolts.
^ To install, tighten to 90 Nm (66 ft. lbs.).
2 Remove the splash shield screw.
3 Remove the 2 front-to-aft crossmember bolts and nut.
^ To install, tighten to 90 Nm (66 ft. lbs.).
4 Remove the crossmember.

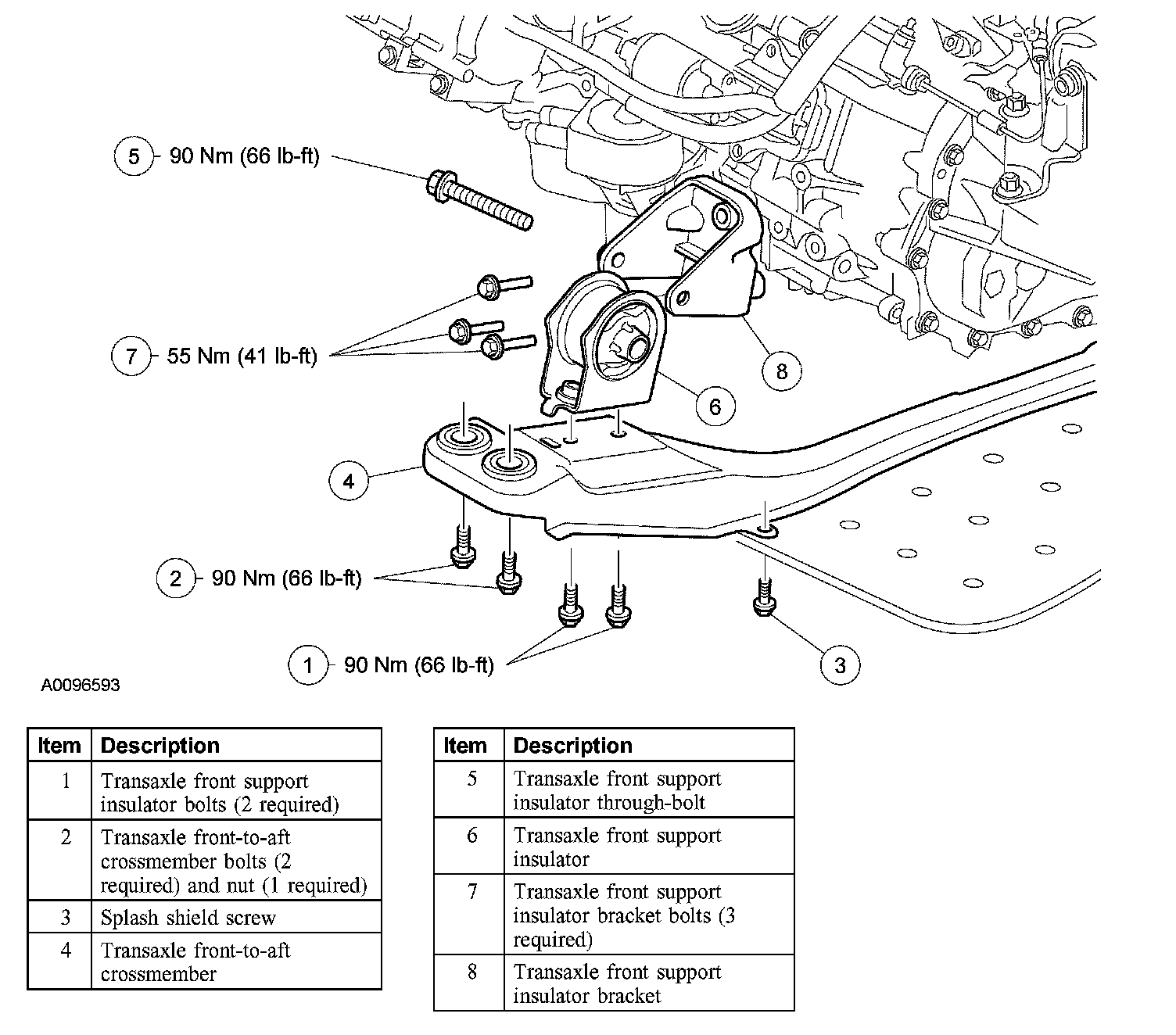

4. Remove the through-bolt and the transaxle front support insulator.
^ To install, tighten to 90 Nm (66 ft. lbs.).
5. If necessary, remove the 3 bolts and the transaxle front support insulator bracket.
^ To install, tighten to 55 Nm (41 ft. lbs.).
6. To install, reverse the removal procedure.
