Selector Lever Knob

Selector Lever Knob

Removal





1. With the vehicle in NEUTRAL, position it on a hoist.

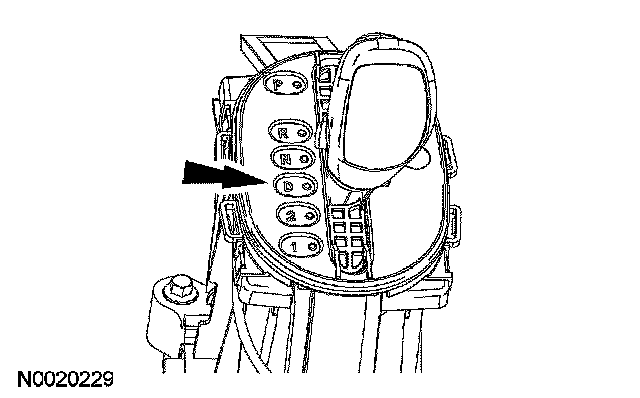

2. Place the floor shift selector lever in the (D) position.

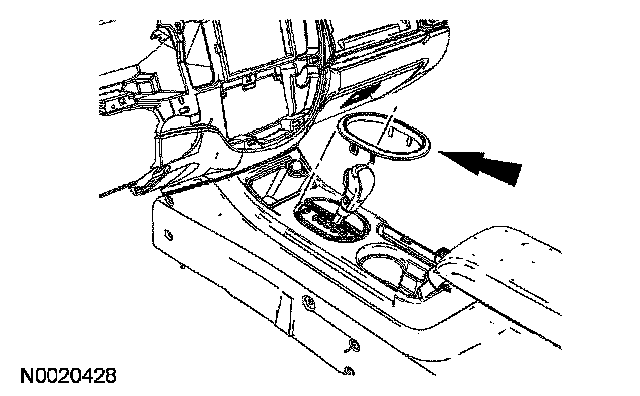

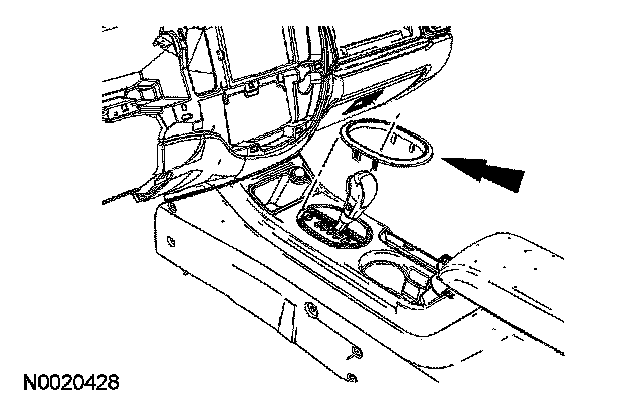

3. Gently pry up to remove the upper shift lever trim ring.

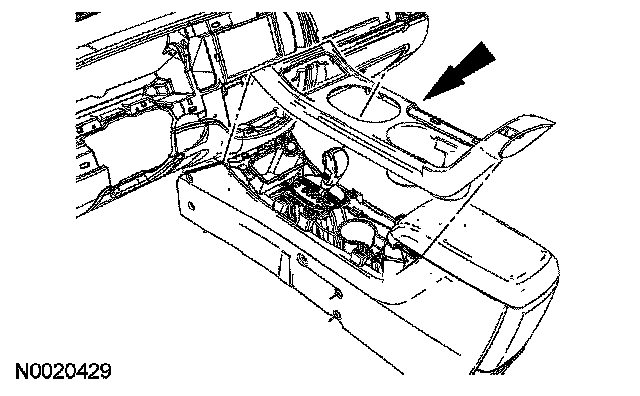

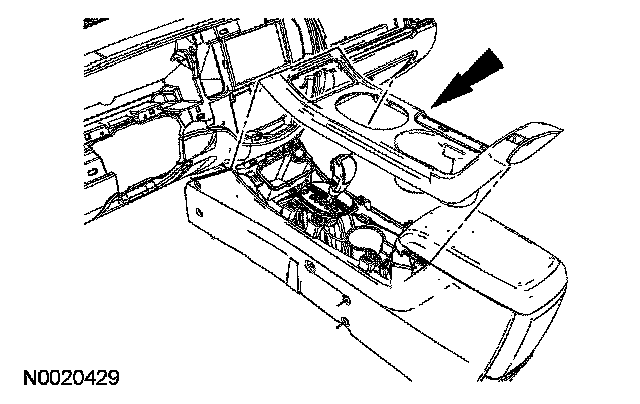

4. Remove the top finish panel.

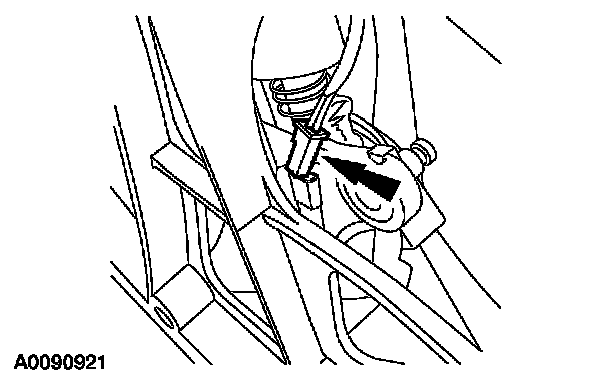

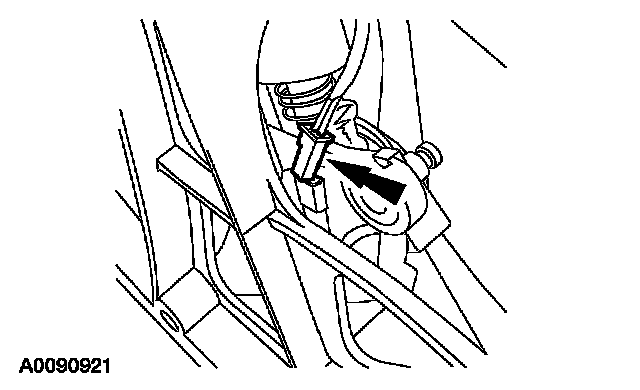

5. Disconnect the overdrive cancel switch electrical connector.

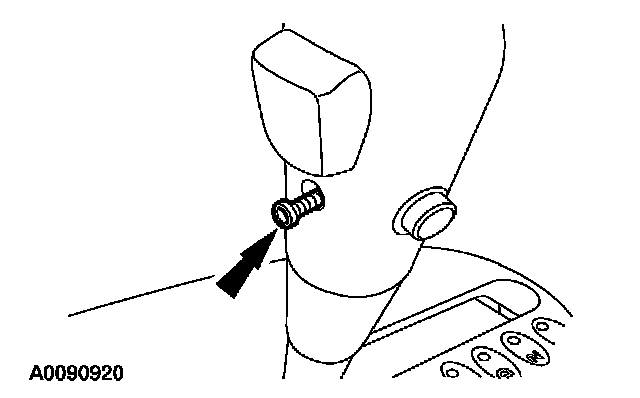

6. Remove the set screw.

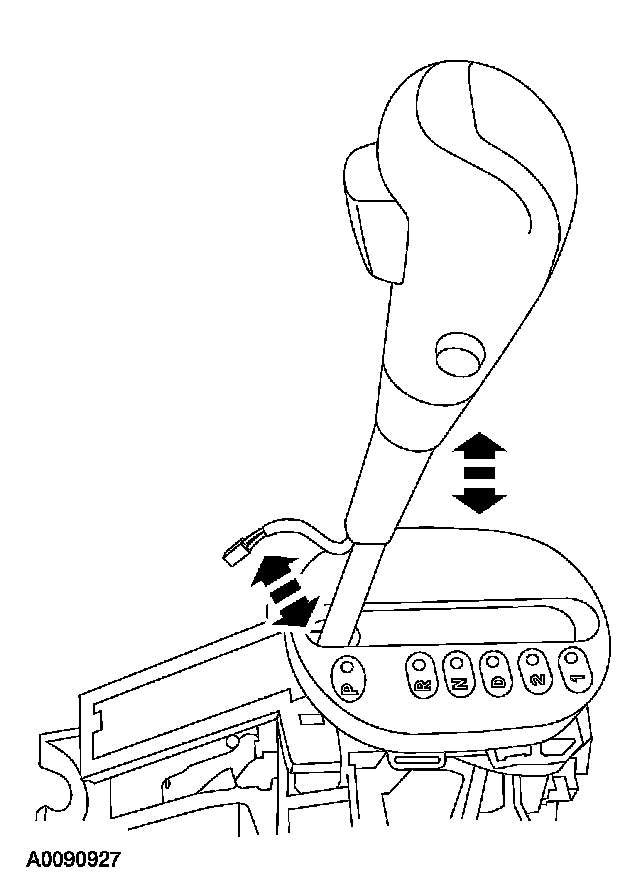

7. Remove the knob and wiring by pulling straight Up on the knob.

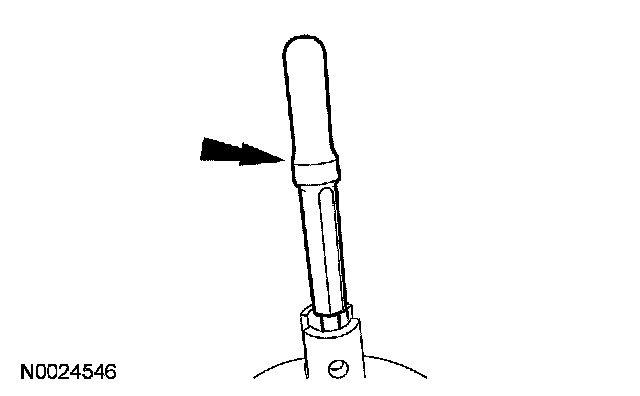

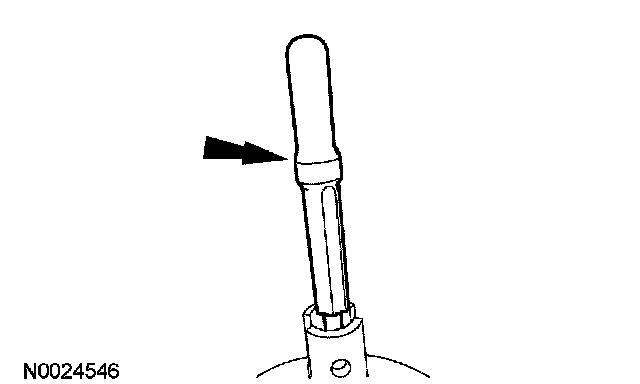

8. Remove and discard the shifter straw by pulling it straight up.

Installation





1. Lightly lubricate the shifter straw with multi-purpose grease, and install it into the shifter bore by pushing straight down.
2. Feed the overdrive cancel switch electrical connector wire harness into the opening in the dash and install the knob.

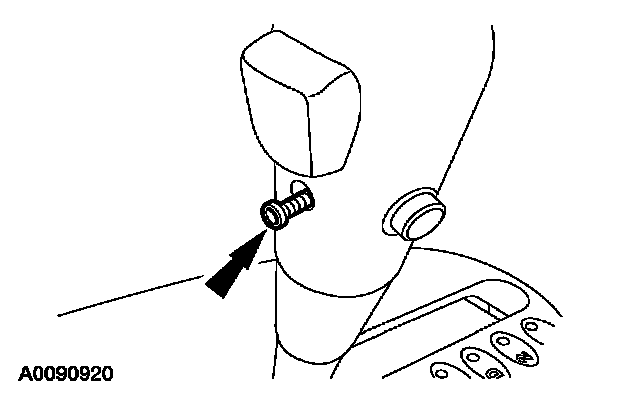

3. Install the set screw.





4. Connect the overdrive cancel switch electrical connector.





5. Install the top finish panel.





6. Install the upper shift lever trim ring.
^ To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
7. Move the shifter through all gears from PARK to DRIVE several times making sure that the screw is not too tight.
