Clutch Pedal Assembly: Service and Repair

Clutch Pedal





Removal and Installation

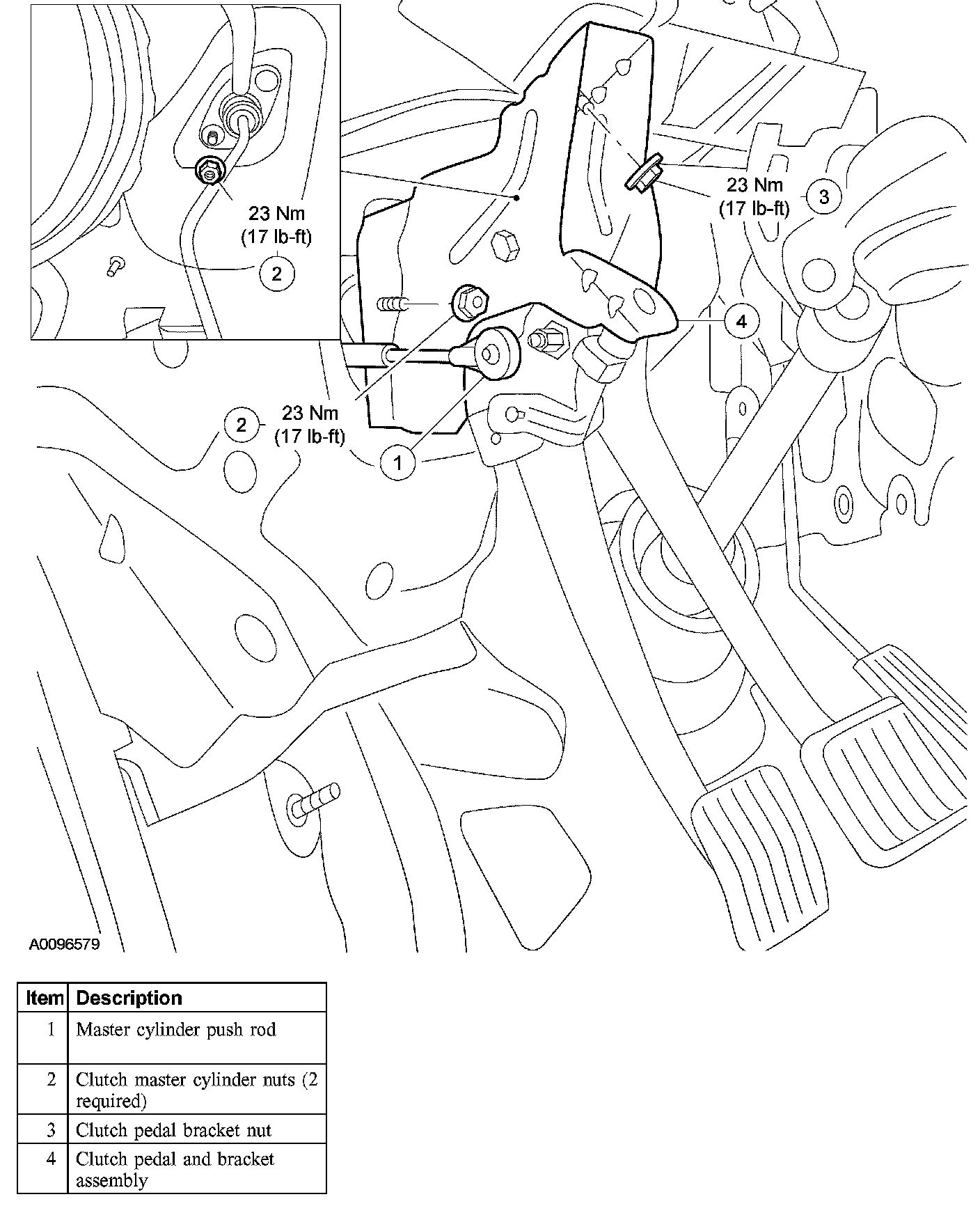

1. Disconnect the master cylinder push rod.
2. Remove the 2 clutch master cylinder nuts.
^ To install, tighten to 23 Nm (17 ft. lbs.).
3. Remove the clutch pedal and bracket assembly nut.
^ To install, tighten to 23 Nm (17 ft. lbs.).
4. Remove the clutch pedal and bracket assembly.
5. To install, reverse the removal procedure.
