Transaxle Support Insulator--Lower, Rear 3.0L





Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

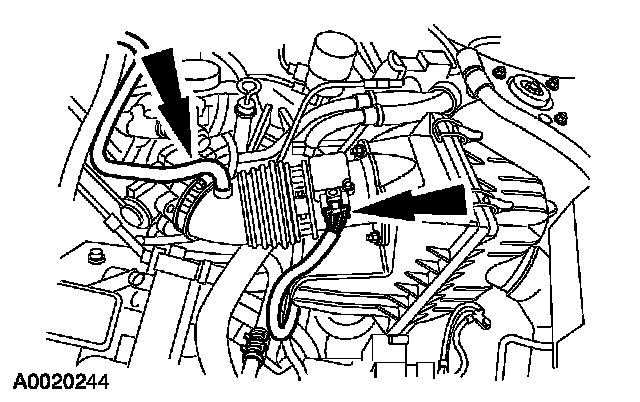

2. Disconnect the breather tube and Mass Air Flow (MAF) sensor.

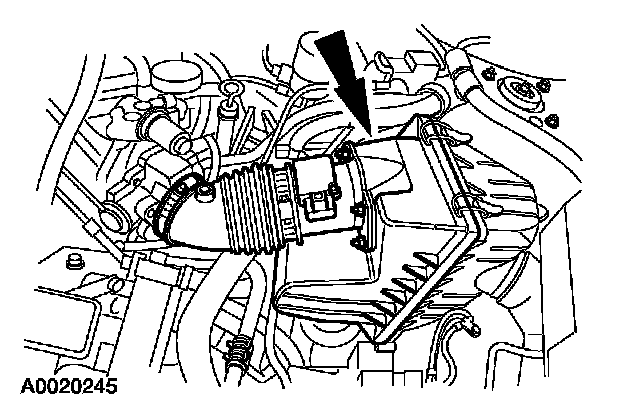

3. Remove the intake tube and air cleaner cover.

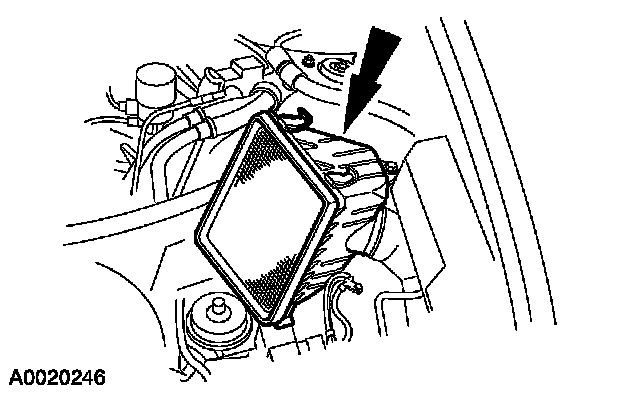

4. Remove the air cleaner assembly.

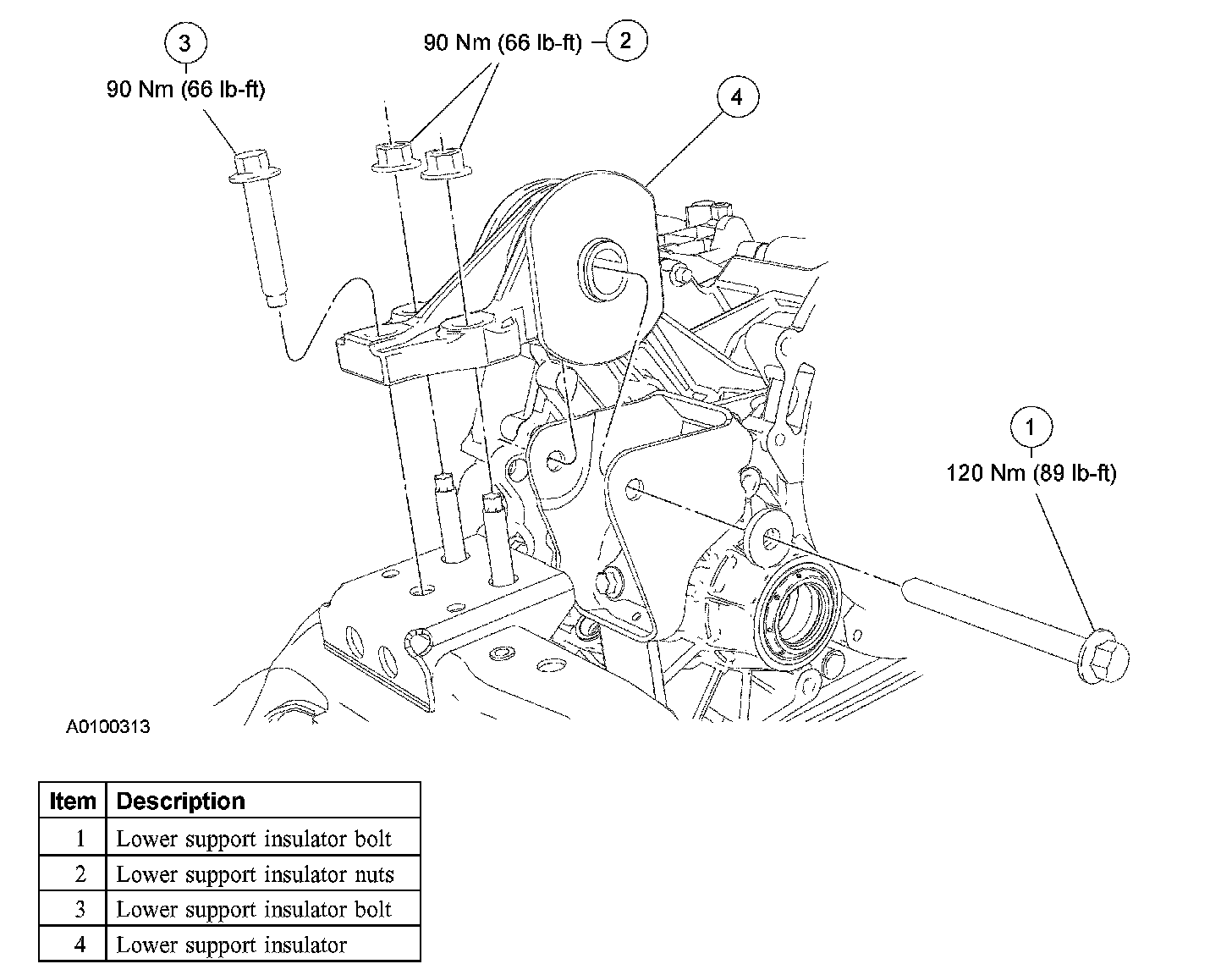

5. Remove the mount through bolt.
^ To install, tighten to 120 Nm (89 ft. lbs.).
6. Remove the 1 retaining bolt and the 2 nuts for the mount and remove the mount.
^ To install, tighten to 90 Nm (66 ft. lbs.).
7. To install, reverse the removal procedure.
