Transmission Fluid Cooler Tubes

Transmission Fluid Cooler Tubes

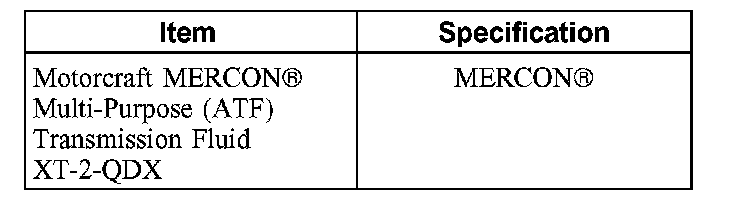

Material





Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

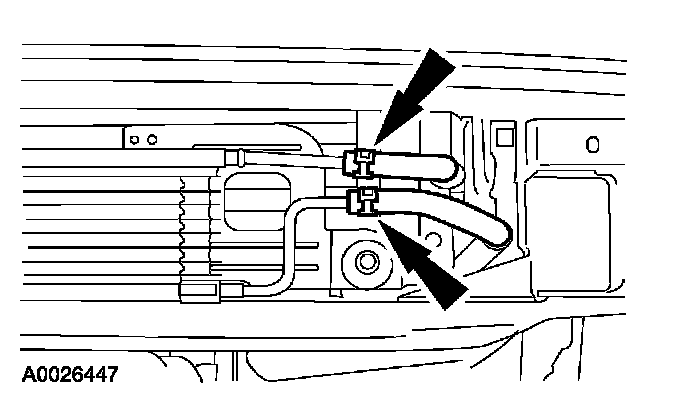

2. Disconnect the transmission fluid cooler tube clamps and disconnect the rubber hoses from the auxiliary cooler.





3. Disconnect the upper fluid cooler rubber hose from the radiator.

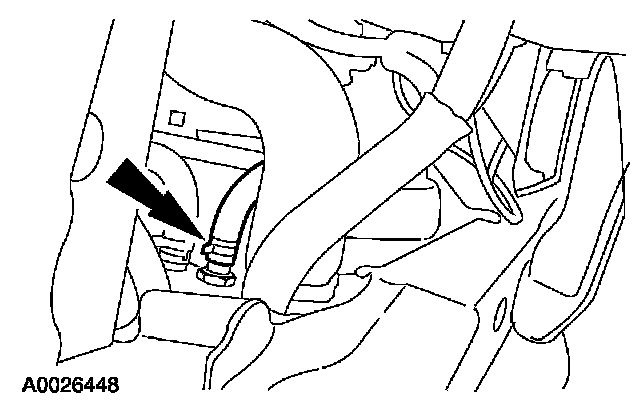

4. Disconnect the lower fluid cooler rubber hose from the radiator.

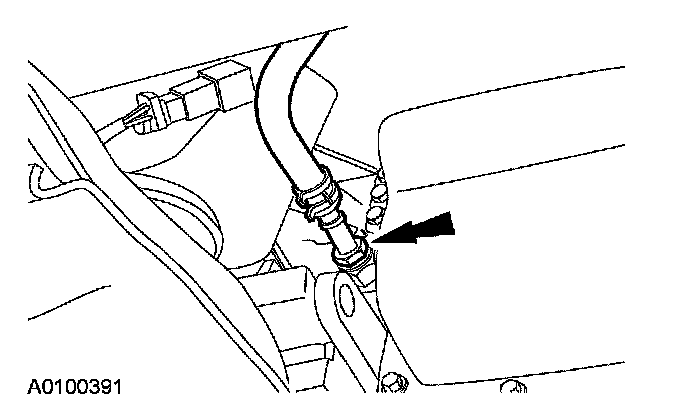

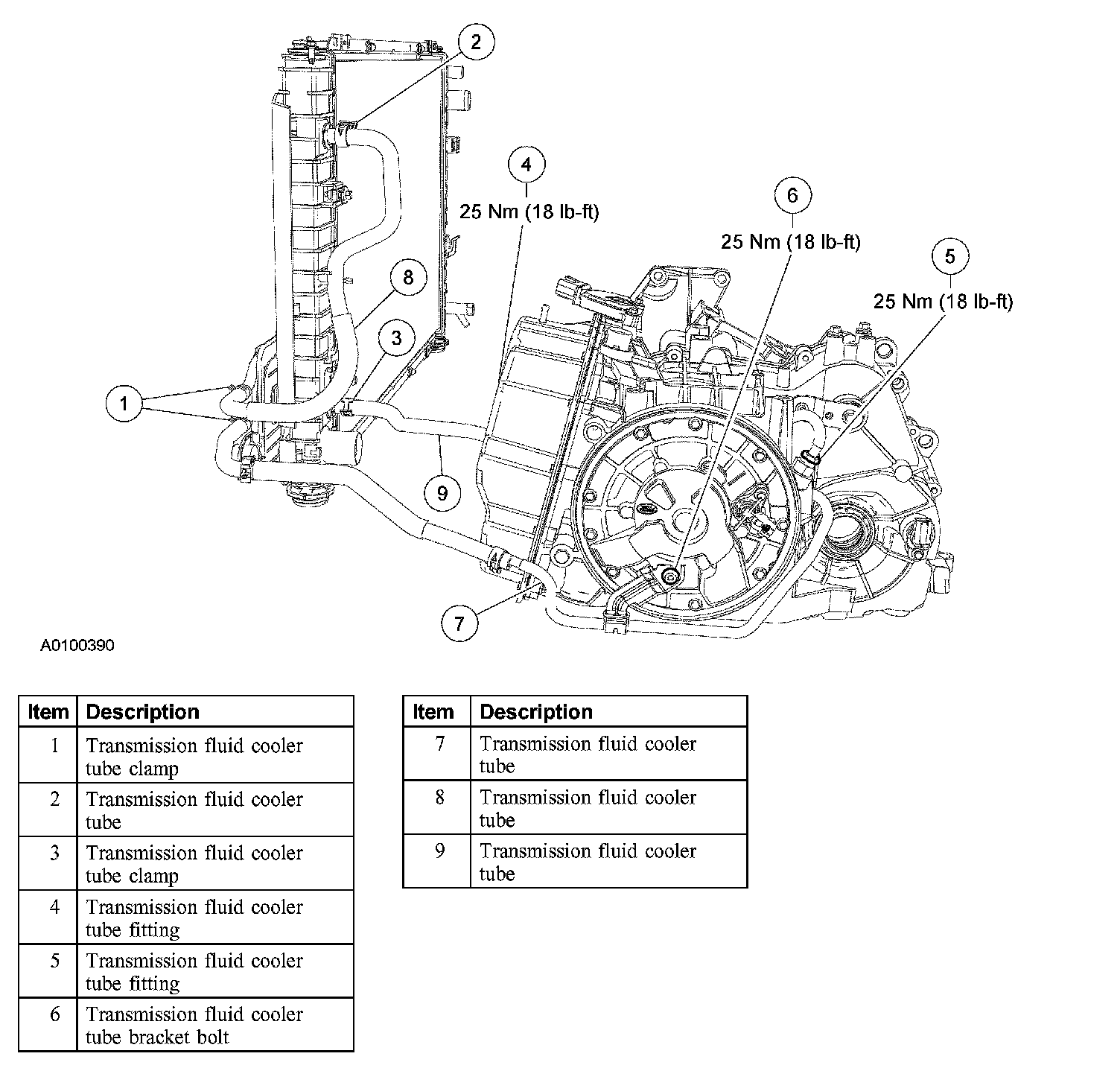

5. Disconnect and remove the front cooler tube from the transaxle case.
^ To install, tighten to 25 Nm (18 ft. lbs.).

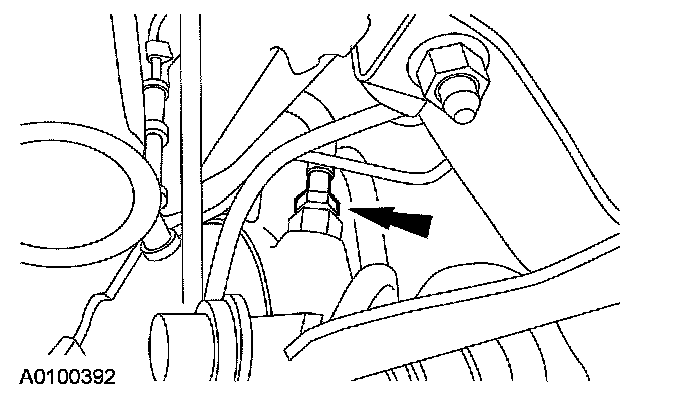

6. Disconnect and remove the rear cooler tube from the transaxle case.
^ To install, tighten to 25 Nm (18 ft. lbs.).

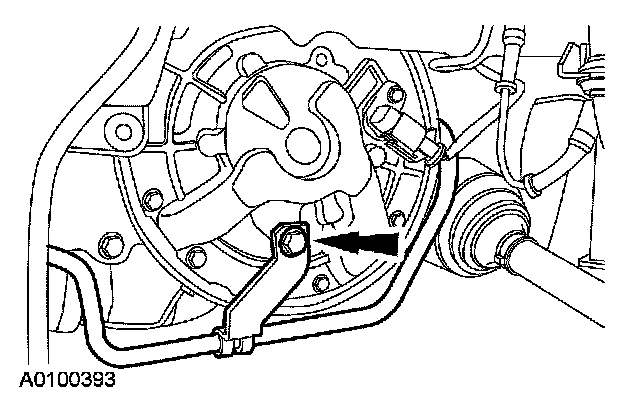

7. Disconnect and remove the fluid cooler tube bracket from the transaxle case.
^ To install, tighten to 25 Nm (18 ft. lbs.).
8. Fill the transaxle with clean automatic transmission fluid.
9. Remove the fluid cooler tubes from under the vehicle and install new as necessary.
10. To install, reverse the removal procedure.
