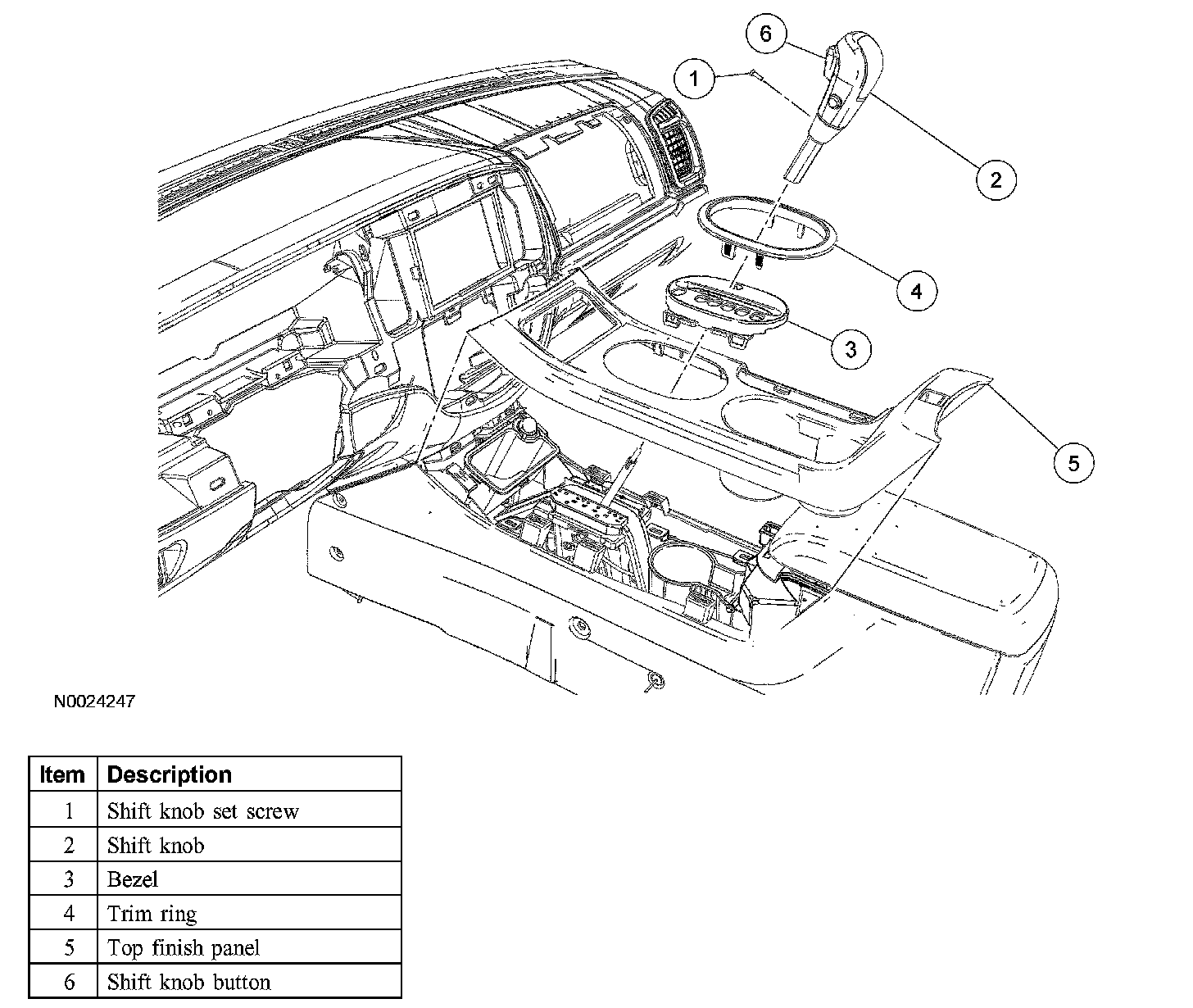

Selector Lever Bezel

Selector Lever Bezel





Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

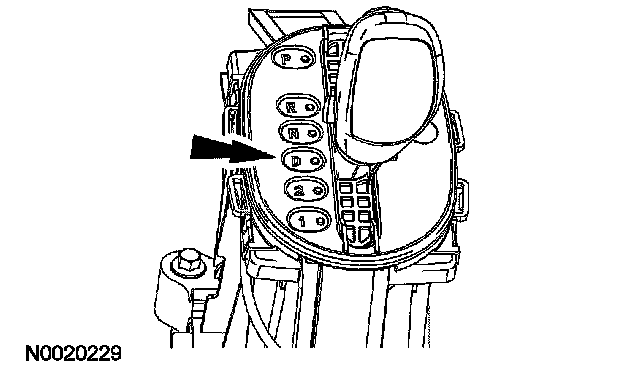

2. Place the floor shift selector lever in the (D) position.

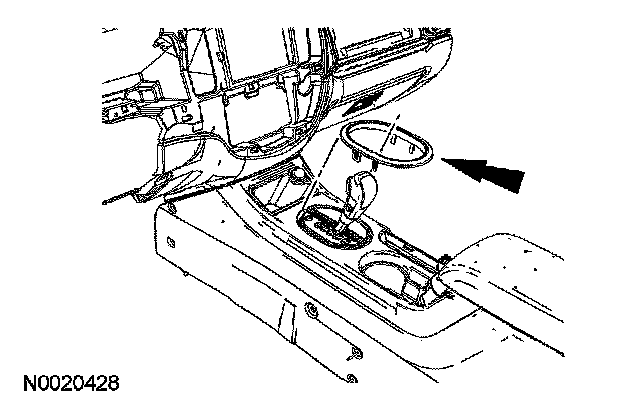

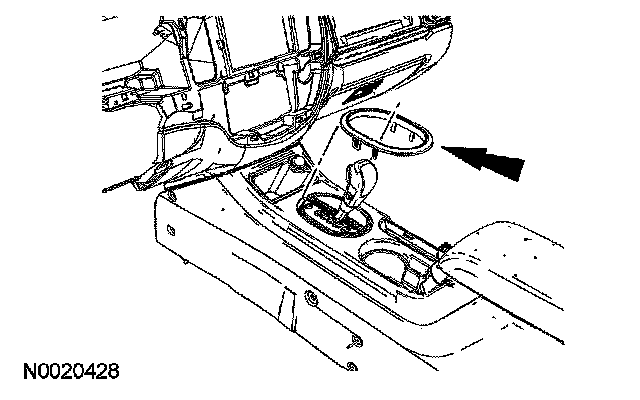

3. Gently pry up to remove the upper shift lever trim ring.

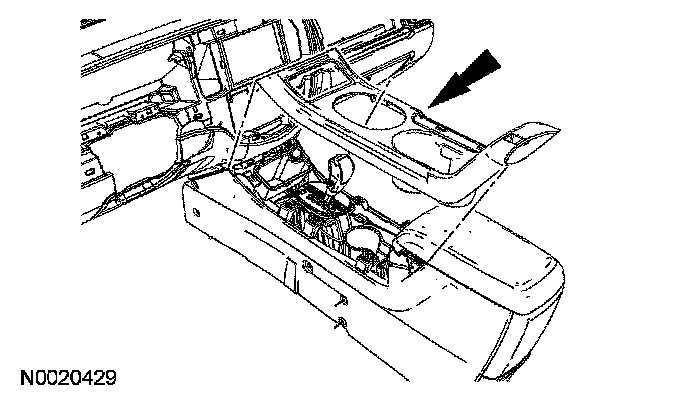

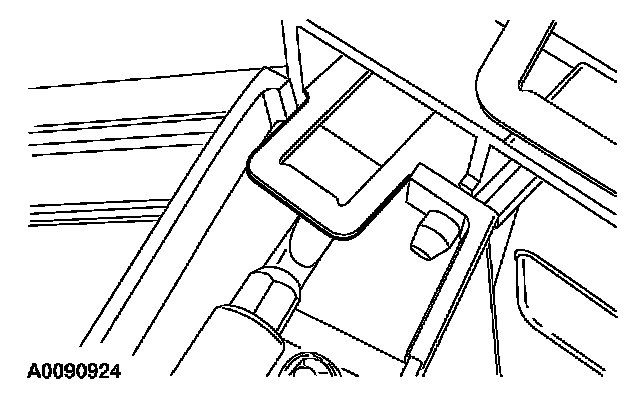

4. Remove the top finish panel.

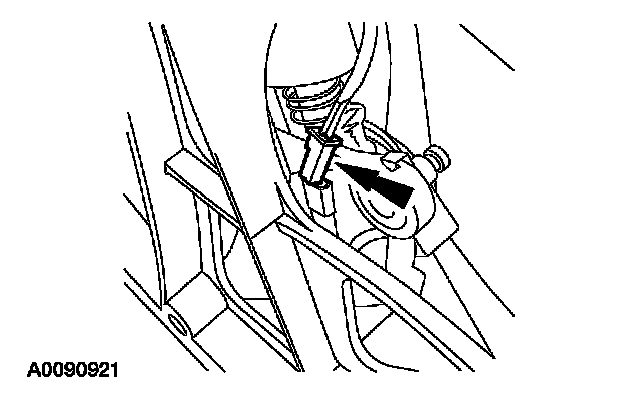

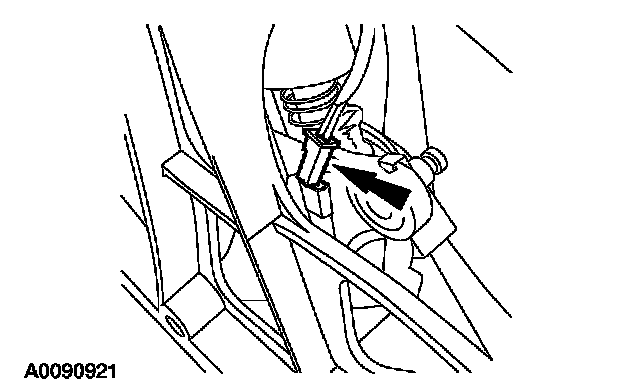

5. Disconnect the overdrive cancel switch electrical connector.

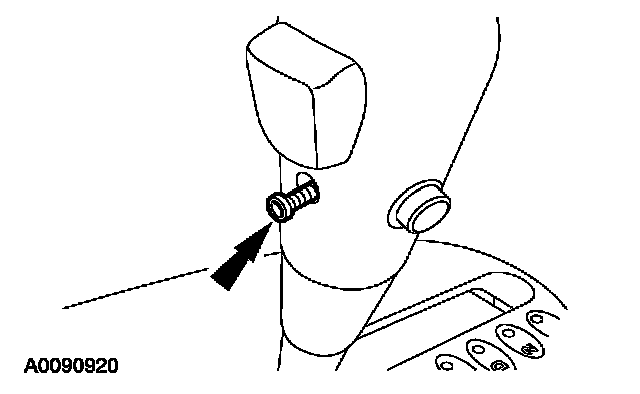

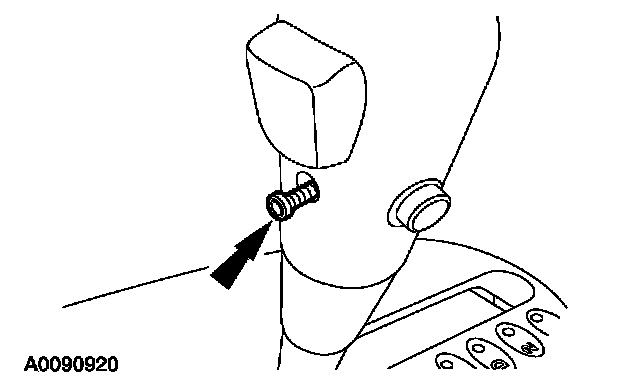

6. Remove the set screw.





7. CAUTION: Make sure that the plastic straw inside of the lever does not come out.

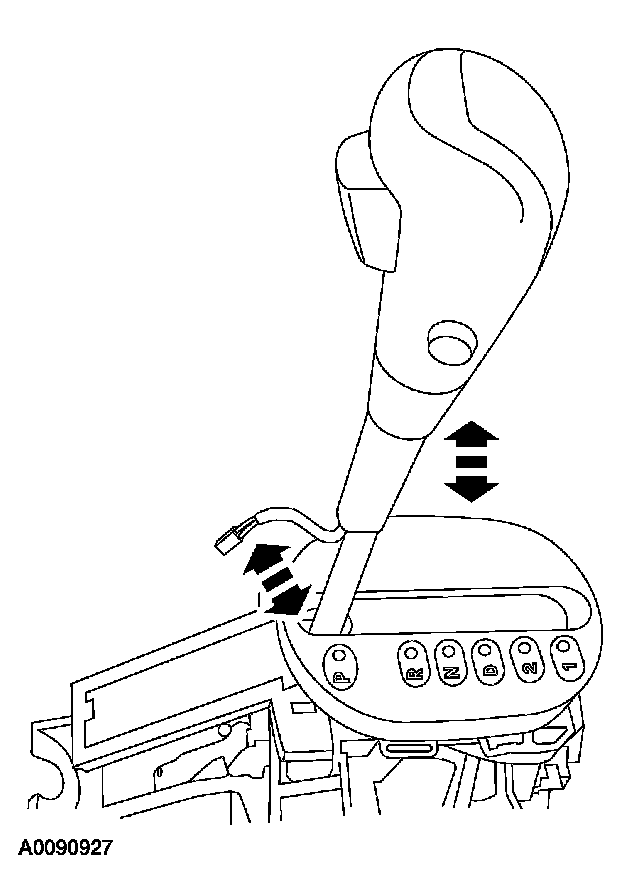

Remove the knob and wiring by pulling straight up on the knob.

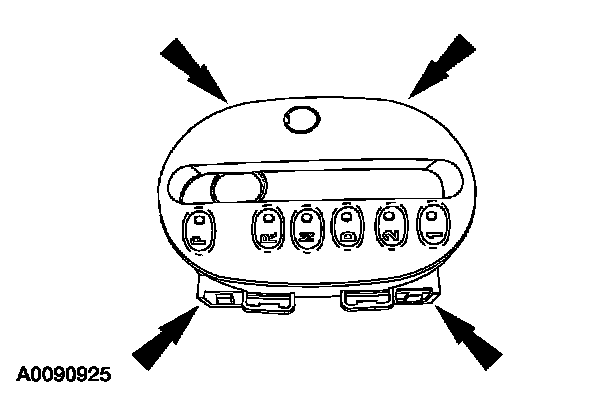

8. Carefully pry up the 4 bezel clips and remove the bezel.





9. Remove the gearshift bezel.

Installation





1. Install the gearshift bezel.
2. Feed the overdrive cancel switch electrical connector wire harness into the opening in the dash and install the knob.





3. CAUTION: Do not overtighten the set screw or damage to the plastic straw will occur.

Install the set screw.





4. Connect the overdrive cancel switch electrical connector.

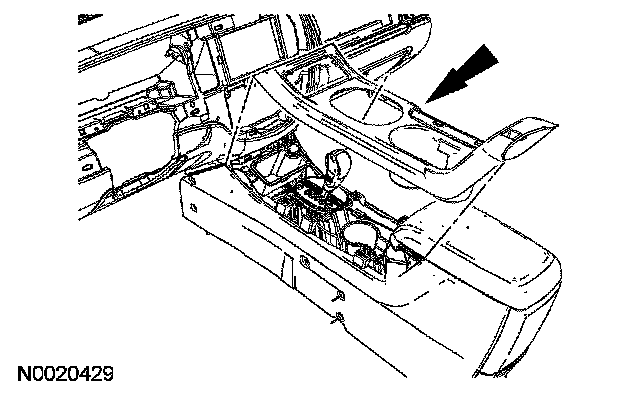

5. Install the top finish panel.





6. Install the upper shift lever trim ring.
^ To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
7. Move the shifter through all gears from PARK to DRIVE several times making sure that the screw is not too tight.
