Safety Belt Shoulder Height Adjuster
SAFETY BELT SHOULDER HEIGHT ADJUSTER
Removal and Installation
WARNING: All safety belt assemblies including retractors, buckles, belt tension sensor (BTS), if equipped, front seat belt buckle support assemblies (slide bar), if equipped, shoulder belt height adjusters, if equipped, child safety seat tether bracket assemblies, if equipped, and attaching hardware should be inspected after any collision. Ford recommends new safety belt assemblies be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Safety belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.
The Automatic Locking Retractor (ALR) feature of the safety belt retractor must be checked by a qualified technician to verify that the ALR feature for a child seat is functioning properly, in addition to other checks for proper safety belt system function. A belt and retractor assembly must be replaced if the safety belt assembly's "automatic locking retractor" feature or any other safety belt function is not operating properly when inspected according to the functional inspection procedures. Failure to replace the belt and retractor assembly could increase the risk of injury in collisions.

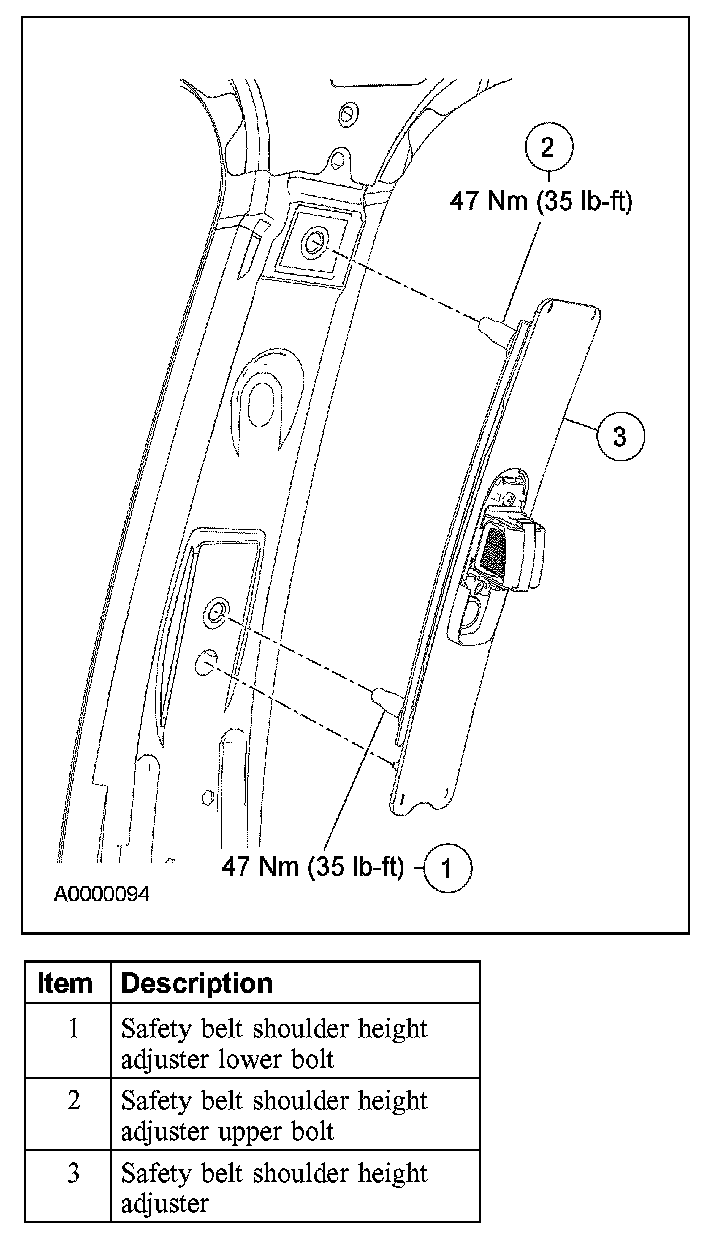

NOTE: The passenger side safety belt shoulder height adjuster is shown, the driver side is similar.
1. Remove the B-pillar trim panel.

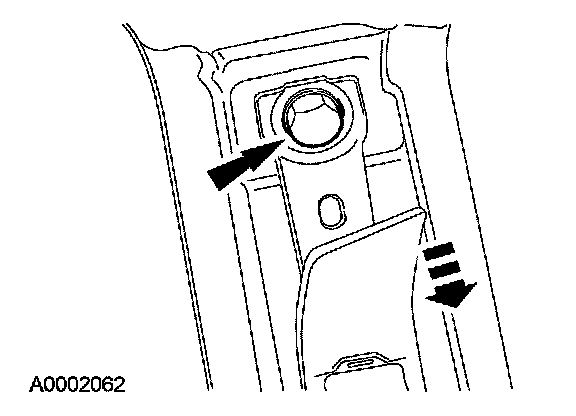

2. Lower the height adjuster and remove the upper bolt.
- To install, tighten to 47 Nm (35 lb-ft).
3. NOTE: Note the position of the lower locator tab for installation.
Raise the height adjuster and remove the lower bolt and height adjuster.
- To install, tighten to 47 Nm (35 lb-ft).
4. To install, reverse the removal procedure.
5. Check the active restraint system for correct operation.
