Child Seat Tether Attachment: Service and Repair
CHILD SAFETY SEAT TETHER ANCHOR
Removal and Installation
WARNING: All safety belt assemblies including retractors, buckles, belt tension sensor (BTS), if equipped, front seat belt buckle support assemblies (slide bar), if equipped, shoulder belt height adjusters, if equipped, child safety seat tether bracket assemblies, if equipped, and attaching hardware should be inspected after any collision. Ford recommends new safety belt assemblies be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Safety belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.
The Automatic Locking Retractor (ALR) feature of the safety belt retractor must be checked by a qualified technician to verify that the ALR feature for a child seat is functioning properly, in addition to other checks for proper safety belt system function. A belt and retractor assembly must be replaced if the safety belt assembly's "automatic locking retractor" feature or any other safety belt function is not operating properly when inspected according to the functional inspection procedures. Failure to replace the belt and retractor assembly could increase the risk of injury in collisions.

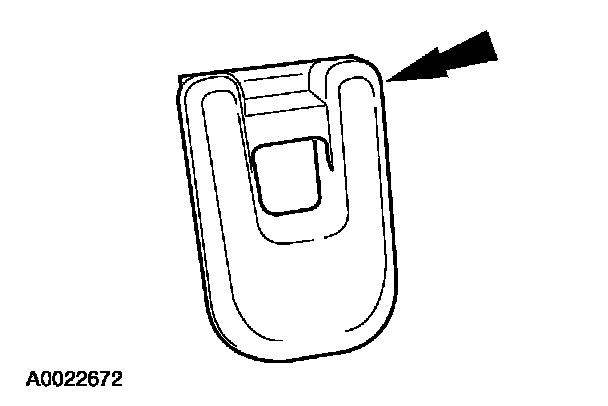

1. Remove the child safety seat tether anchor cover by releasing the top anchor end of the cover first and rocking the cover off of the anchor bolt end.

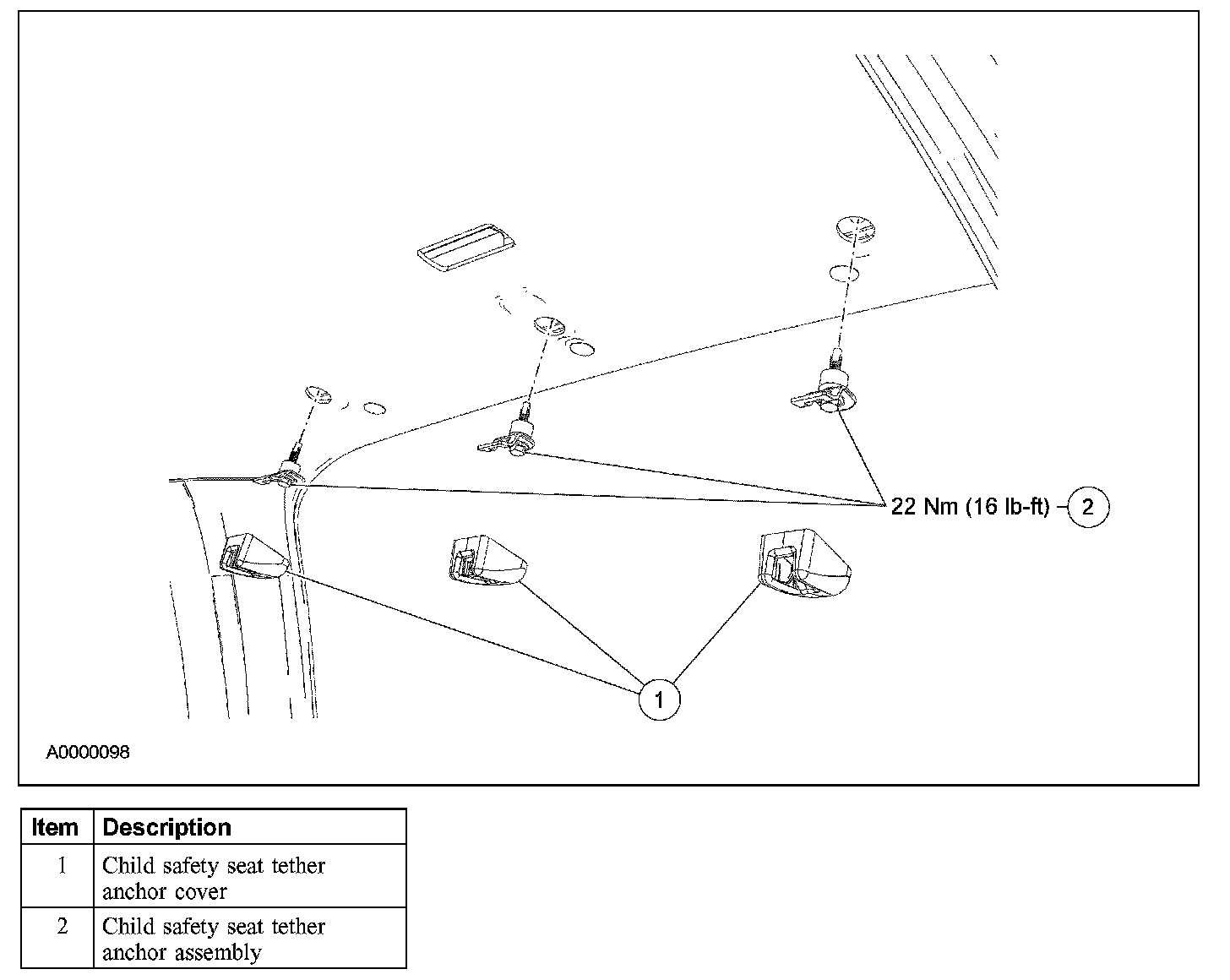

2. Remove the bolt and the child safety seat tether anchor.
- To install, tighten to 22 Nm (16 lb-ft).
3. WARNING: It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be properly secured, and the child can be injured in case of a sudden stop or accident.
NOTE:
- Rework the sheet metal to its original condition and structural integrity.
- Make sure to tighten the bolts to specification.
To install, reverse the removal procedure.
