Throttle Cable/Linkage: Service and Repair

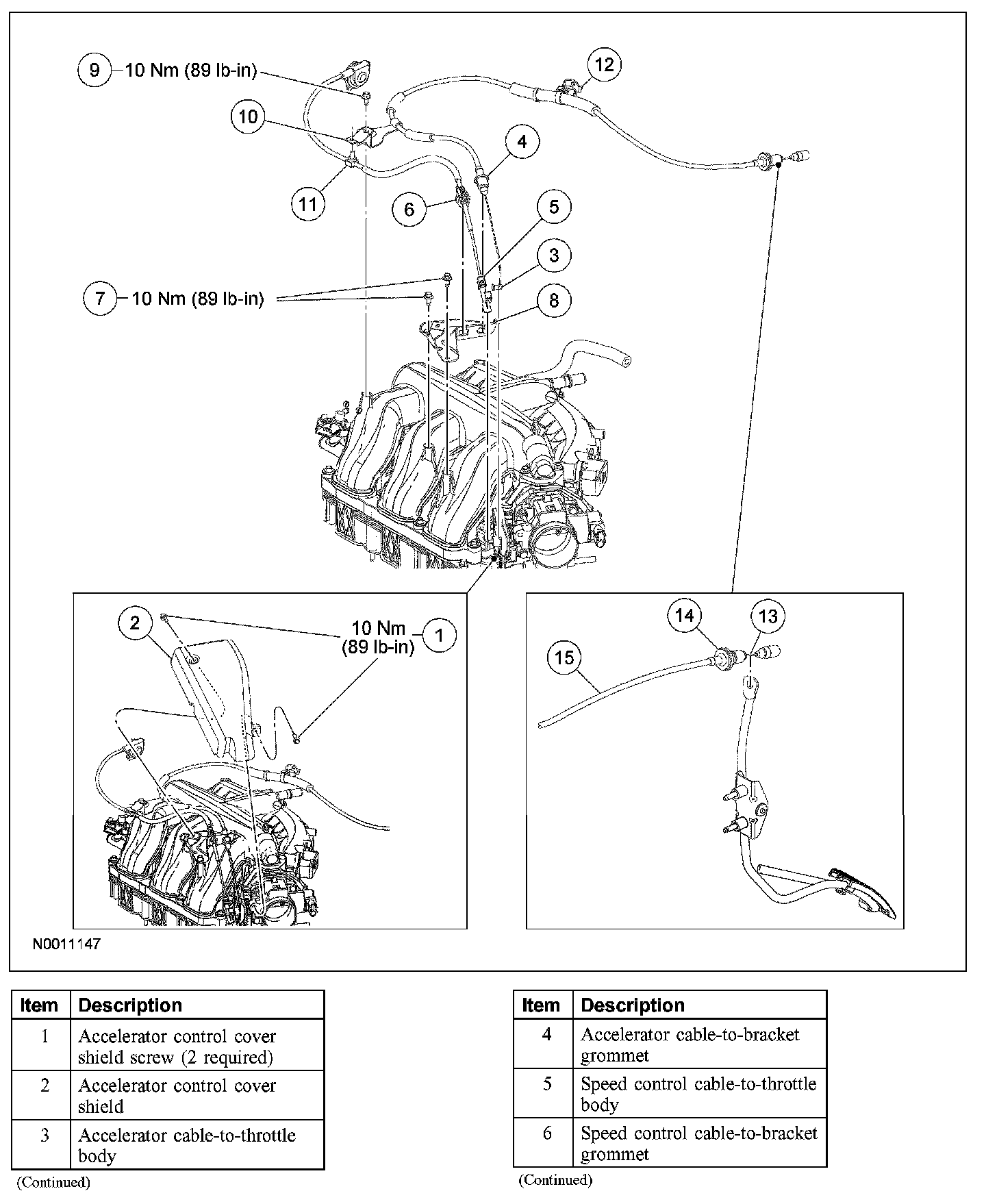

ACCELERATOR CABLEPart 1:

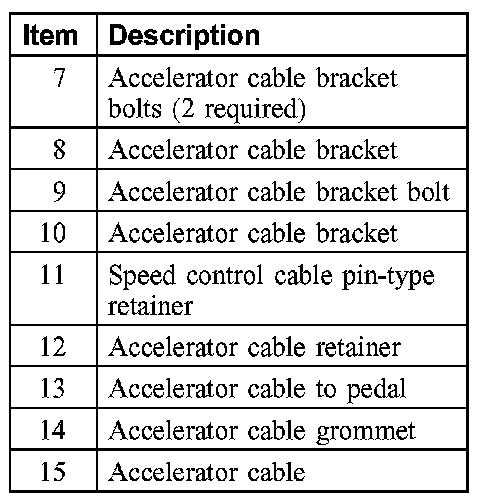

Part 2:
Removal and Installation
1. Remove the 2 screws, and the accelerator control cover shield.
- To install, tighten to 10 Nm (89 lb-in).
2. Disconnect the accelerator cable from the throttle body.

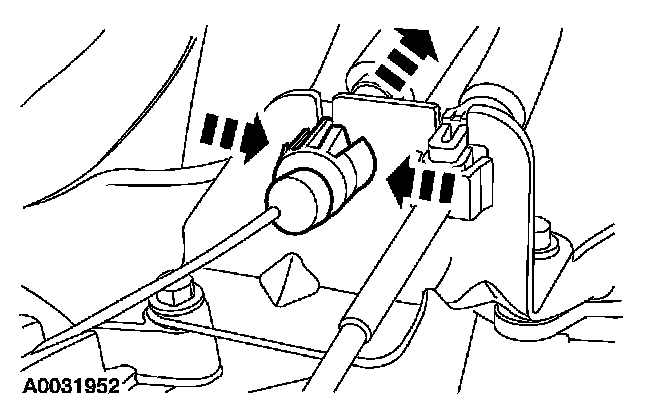

3. Squeeze the tabs and remove the accelerator cable from the bracket.
4. Remove the screw and the accelerator cable bracket from the upper intake manifold.
- Detach the speed control cable pin-type retainer from the accelerator cable bracket.
- To install, tighten to 10 Nm (89 lb-in).
5. Detach the accelerator cable retainer
6. Remove the accelerator cable grommet from the dash panel.
7. Remove the accelerator cable from the rubber plunger.

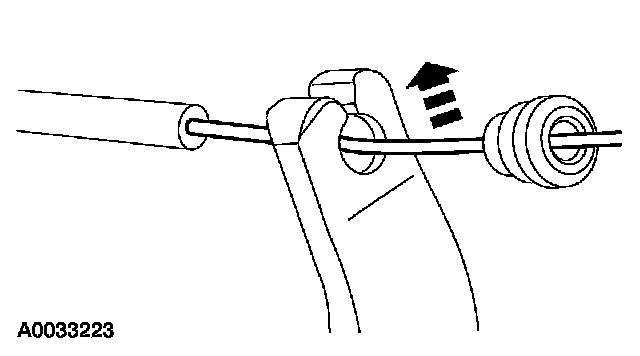

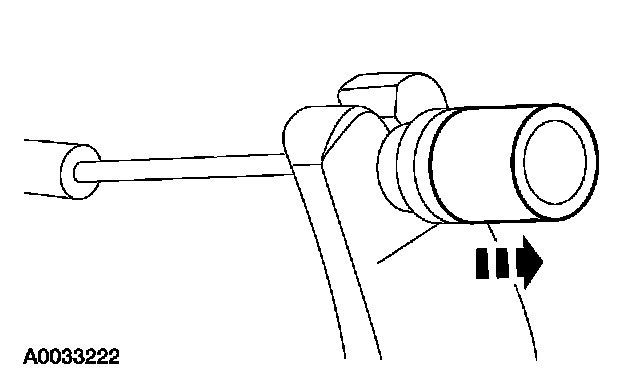

8. Position the plunger rearward and remove the cable from the accelerator pedal.
- Remove the accelerator cable.
9. To install, reverse the removal procedure.
