Resonator: Service and Repair

INTAKE AIR RESONATOR







Exploded View

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.







2. Remove the LH inner fender splash shield.

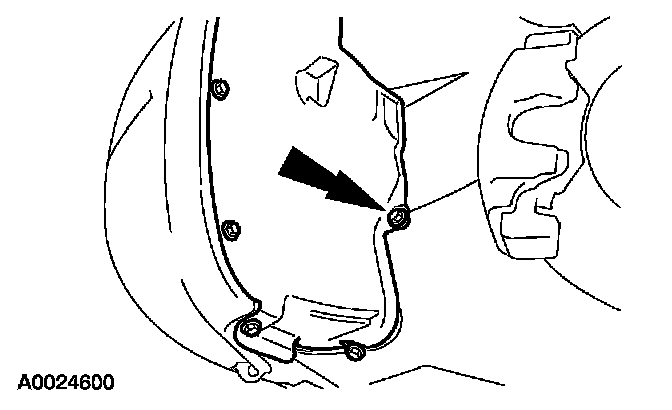

3. Remove the bolt and the air intake resonator.
- To install, tighten to 8 Nm (71 lb-in).

4. NOTE: Make sure that the front rubber grommet is seated in the bracket.

To install, reverse the removal procedure.
