Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL AND SHAFT

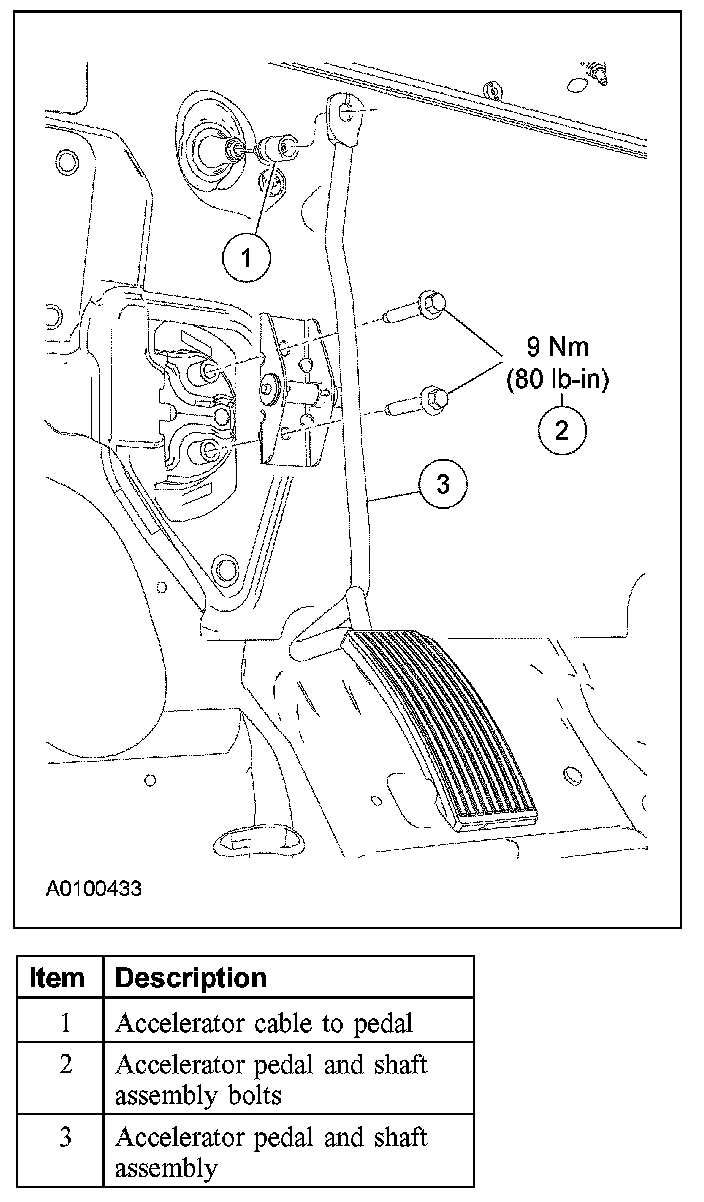

Removal and Installation

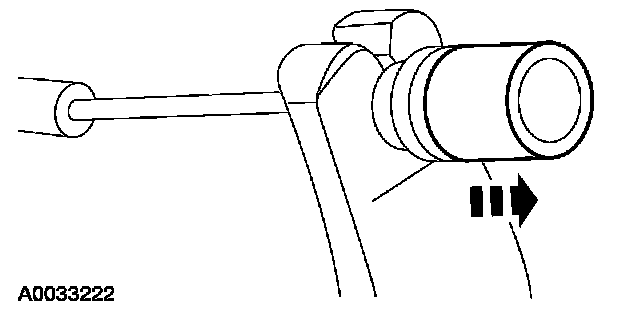

1. Remove the accelerator cable from the rubber plunger.

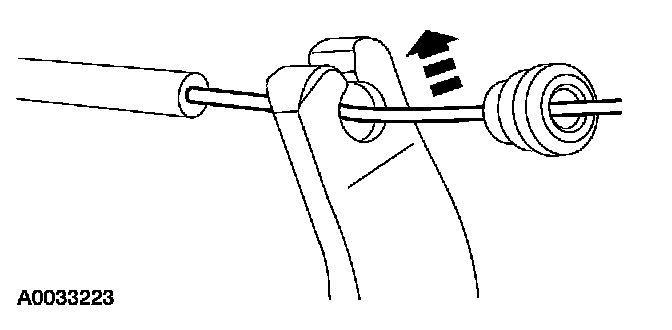

2. Position the plunger rearward and remove the cable from the accelerator pedal.
3. Remove the 2 bolts and the accelerator pedal and shaft assembly.
- To install, tighten to 9 Nm (80 lb-in).

4. To install, reverse the removal procedure.
