Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE







Removal

WARNING:
- The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions can result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

1. Disconnect the battery ground cable.

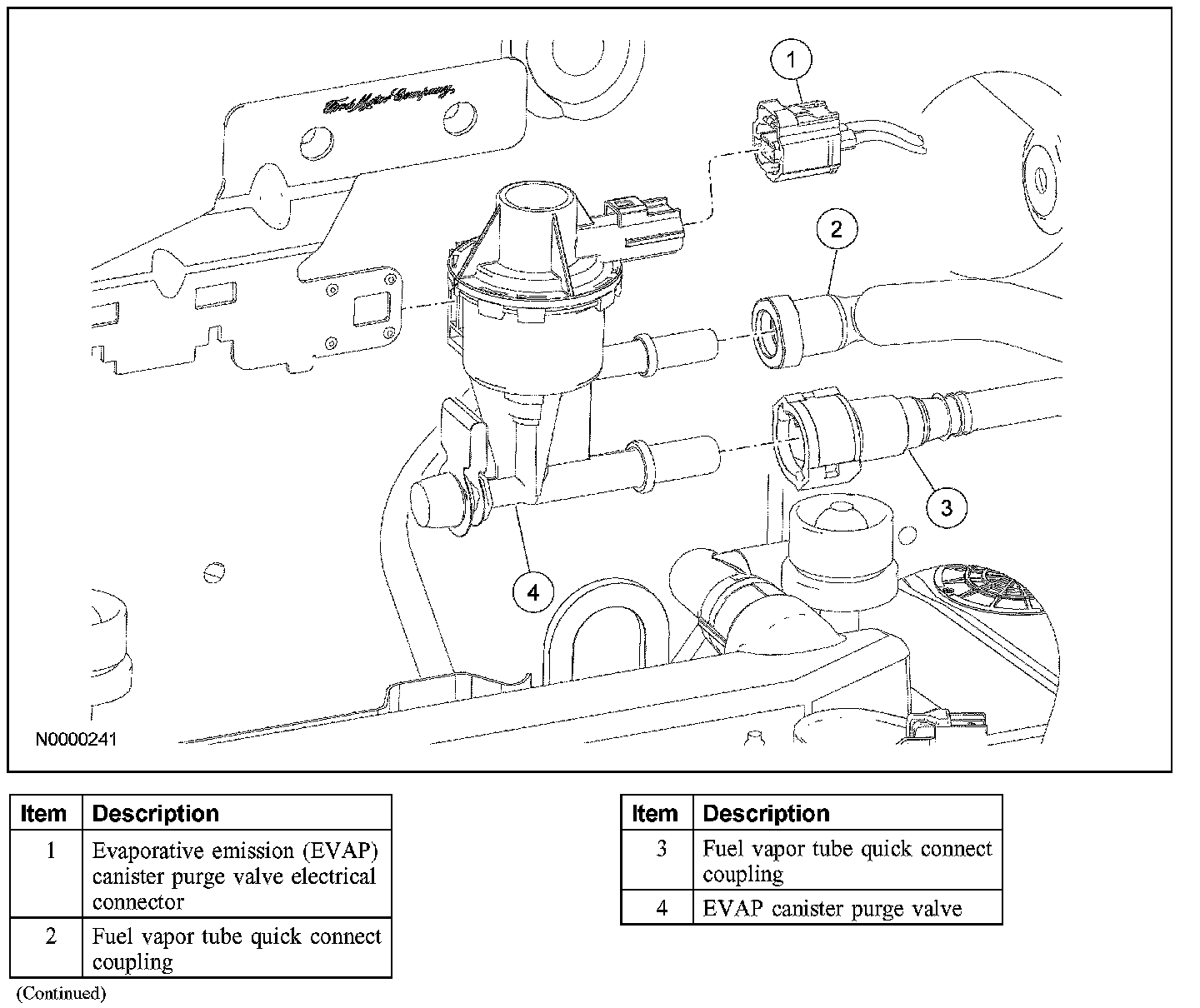

2. Disconnect the evaporative emissions (EVAP) canister purge valve electrical connector.







3. CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating the tube.

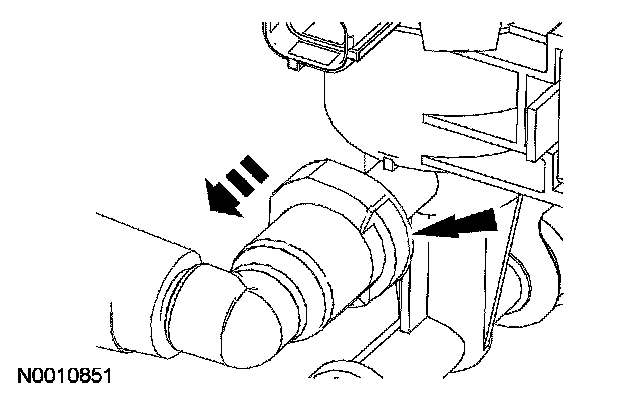

Disconnect the fuel vapor tube quick connect coupling.
- Push the connector toward the tube to release pressure.
- Press the fuel vapor tube quick connect coupling button and pull the fuel vapor tube to disconnect.







4. CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating the tube.

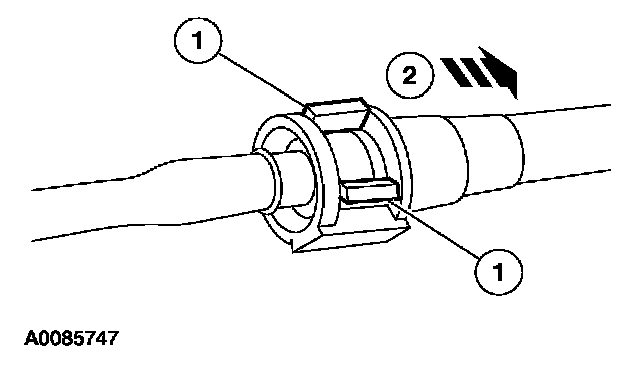

Disconnect the fuel vapor tube quick connect coupling.
1 Press the fuel vapor tube quick connect coupling lock tabs.
2 Disconnect the fuel vapor tube quick connect coupling.

5. Depress the tab and remove the EVAP canister purge valve from the bracket.

Installation

1. NOTE: Make sure that the EVAP canister purge valve tab snaps and locks into place on the bracket.

Install the EVAP canister purge valve on the bracket.







2. NOTE:
- Make sure the collar on the fuel vapor tube is inserted fully into the quick connect coupling before the locking tab is locked.
- Apply clean engine oil to the end of the tube before inserting the tube into the connector.

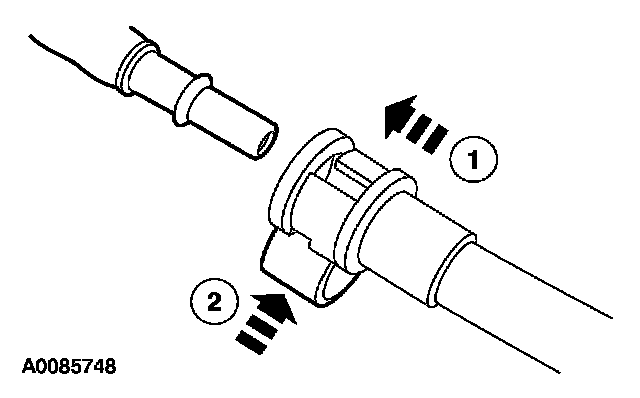

Install the fuel vapor tube quick connect coupling.
1 Connect the quick connect coupling to the tube.
2 Press the quick connect coupling locking tab into position.
- Pull on the fitting to make sure it is fully engaged.

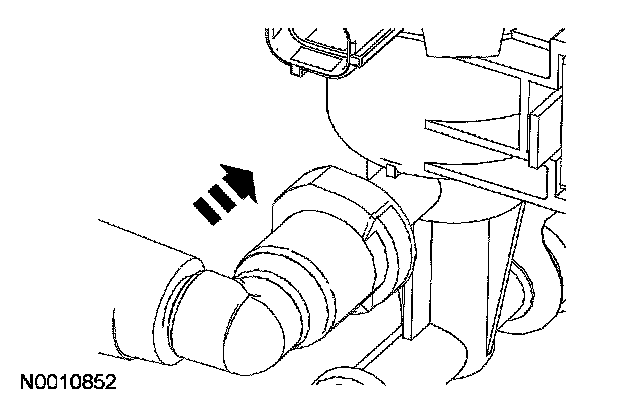

3. CAUTION: Make sure the vapor tube clicks into place when installing the tube. To make sure the tube is fully seated, pull on the tube.

NOTE: Apply clean engine oil to the end of the tube before inserting the tube into the connector.

Install the fuel vapor tube quick connect coupling.
- Pull on the fitting to make sure it is fully engaged.

4. Connect the EVAP canister purge valve electrical connector.
5. Connect the battery ground cable.
