Tests DY: Engine Oil Temperature (EOT) Sensor



PINPOINT TEST DY: ENGINE OIL TEMPERATURE (EOT) SENSOR

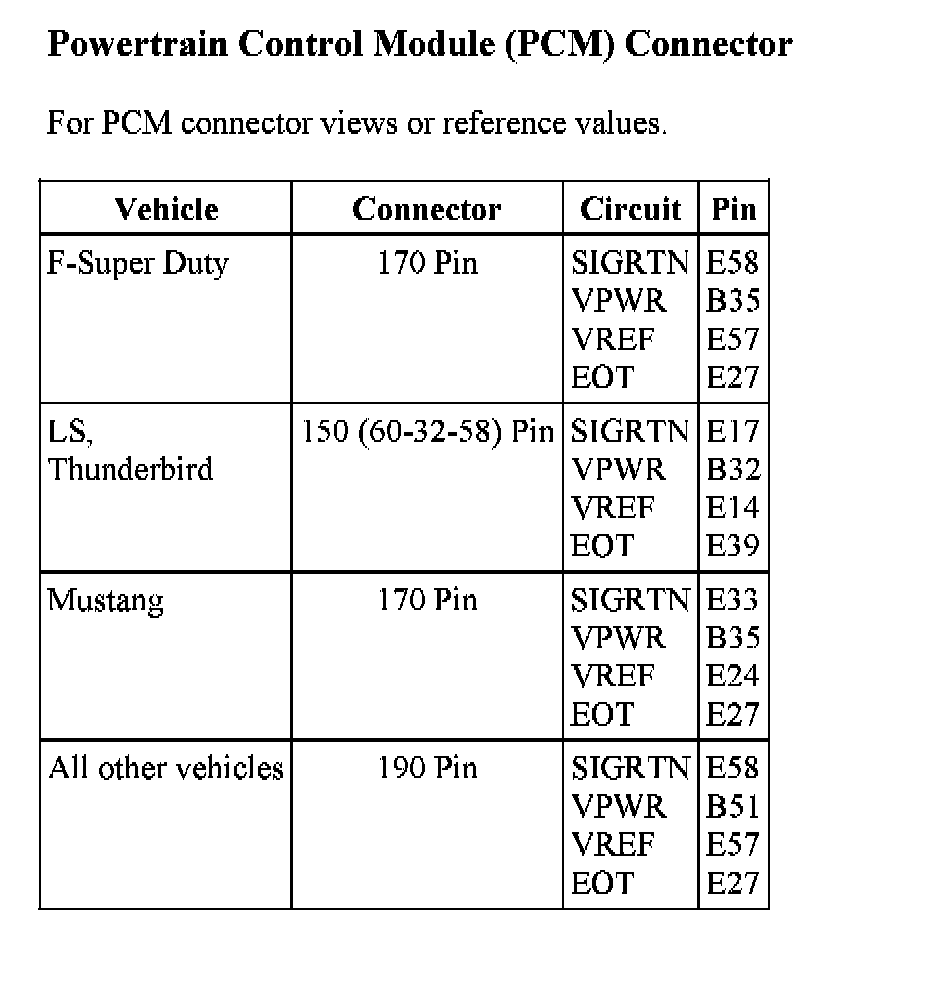

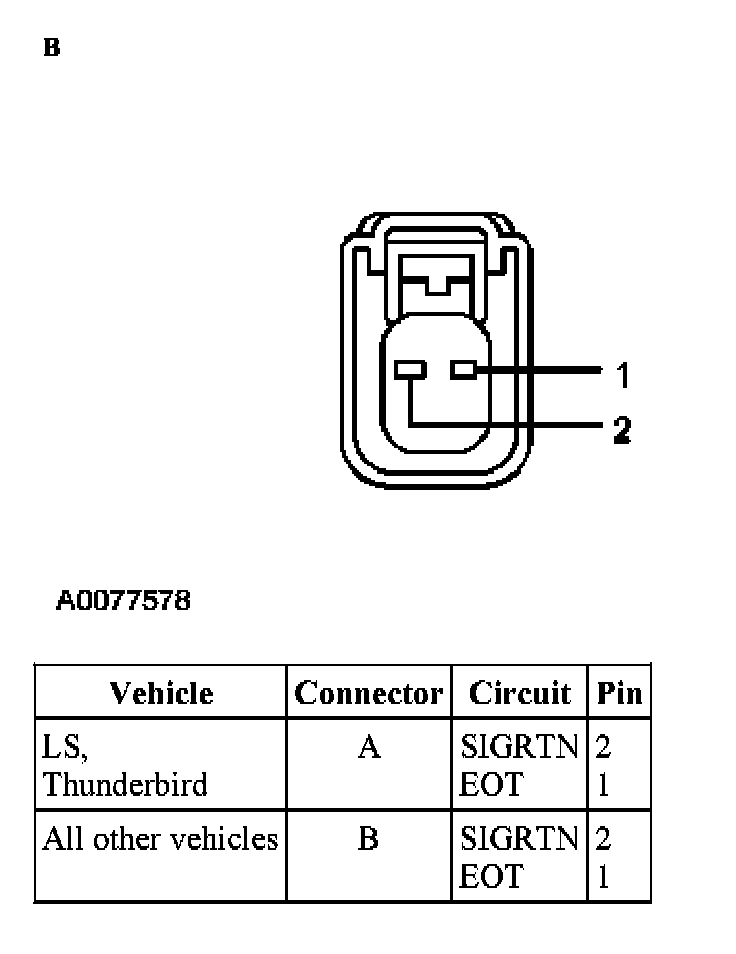

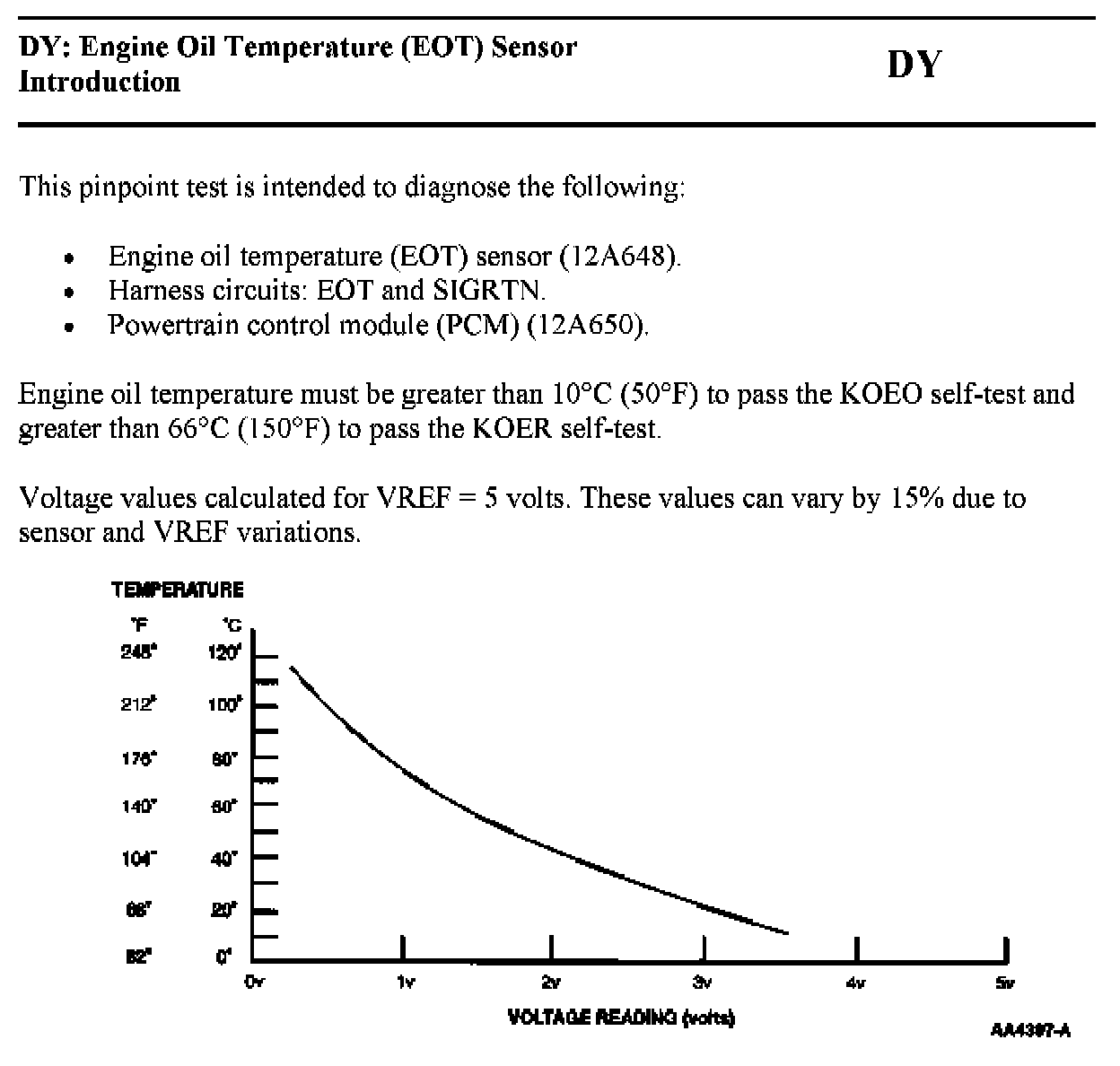

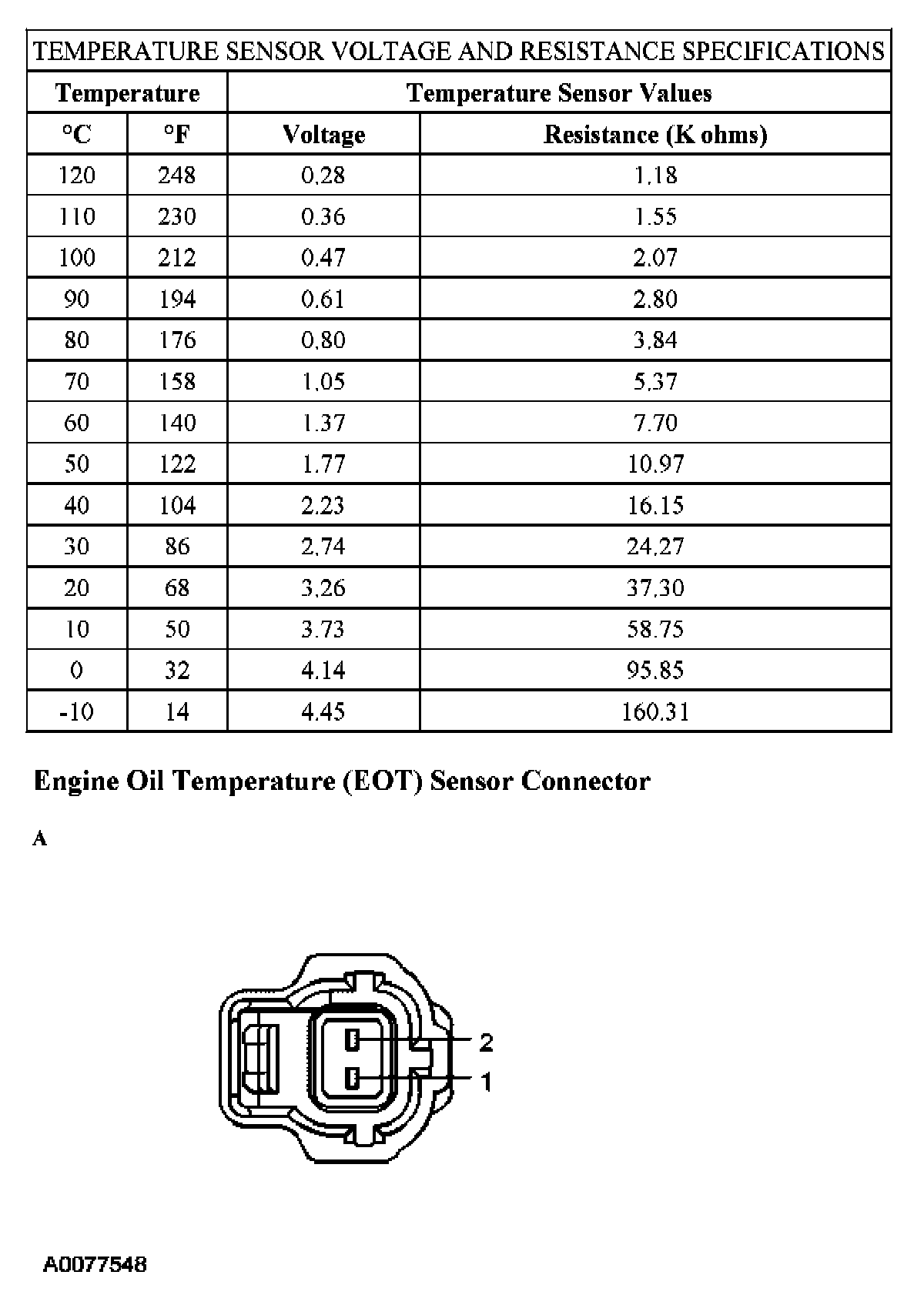

DY Introduction:





DY Introduction:





DY Introduction:





DY Introduction:

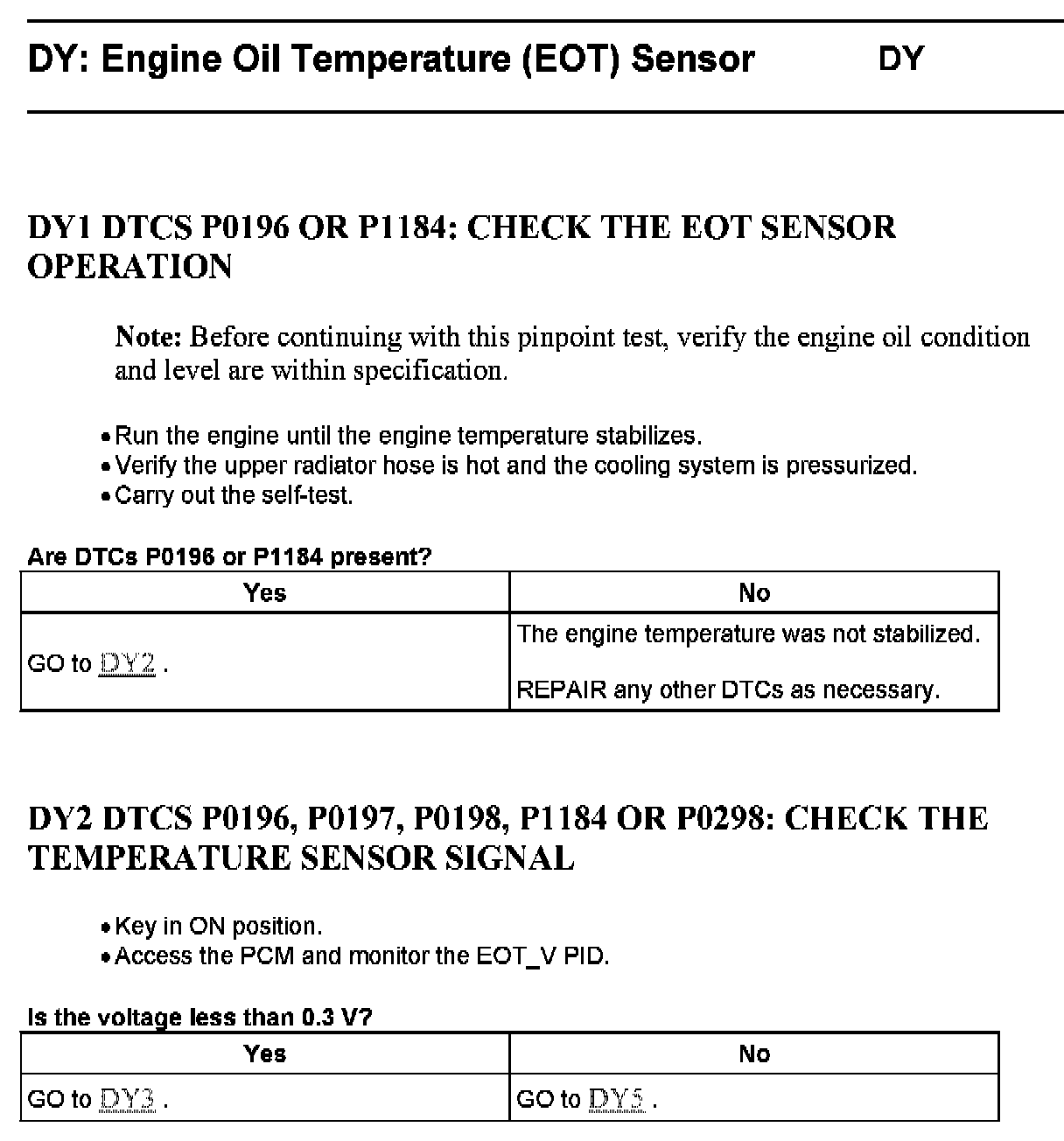

DY1 - DY2:

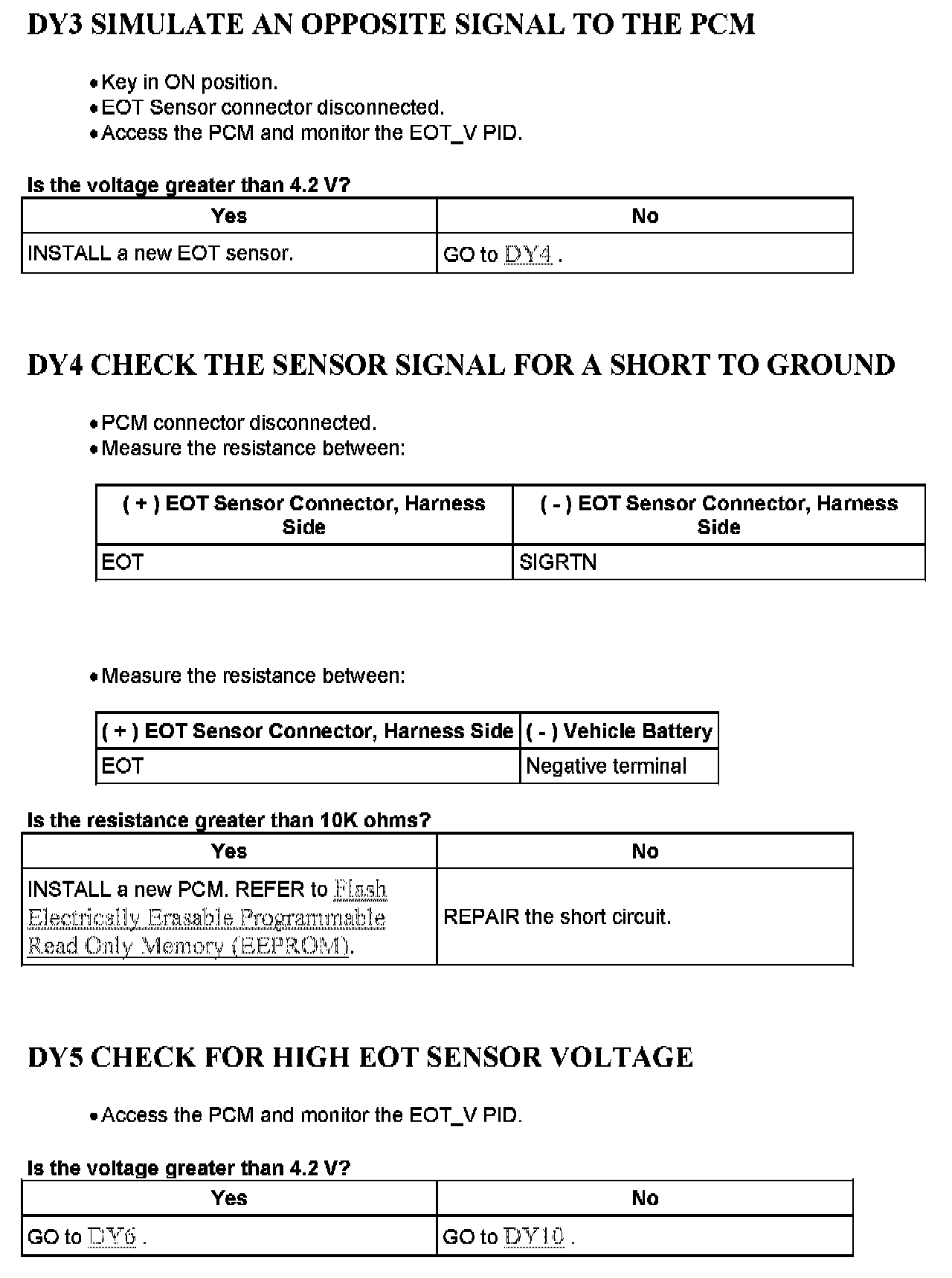

DY3 - DY5:

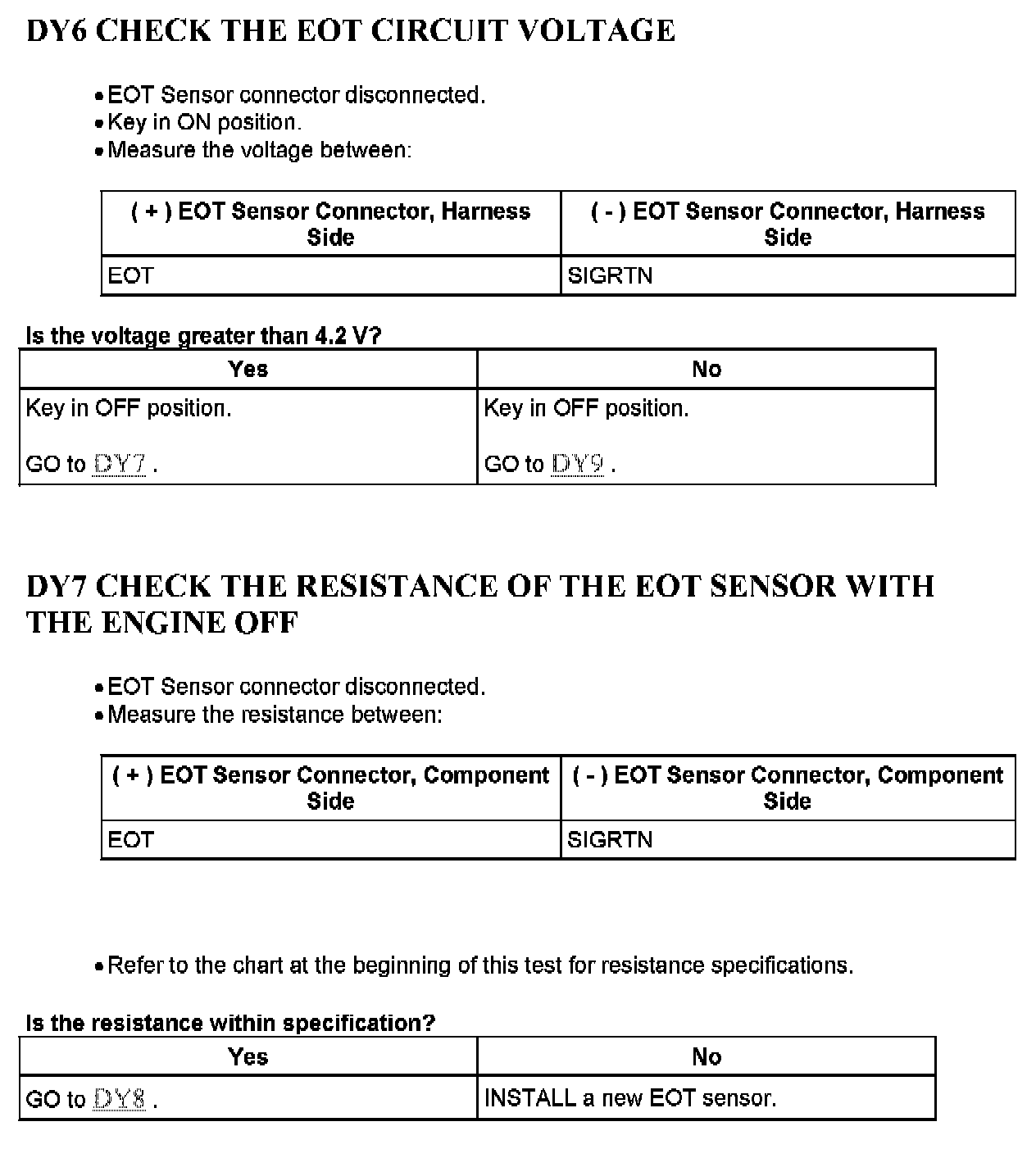

DY6 - DY7:

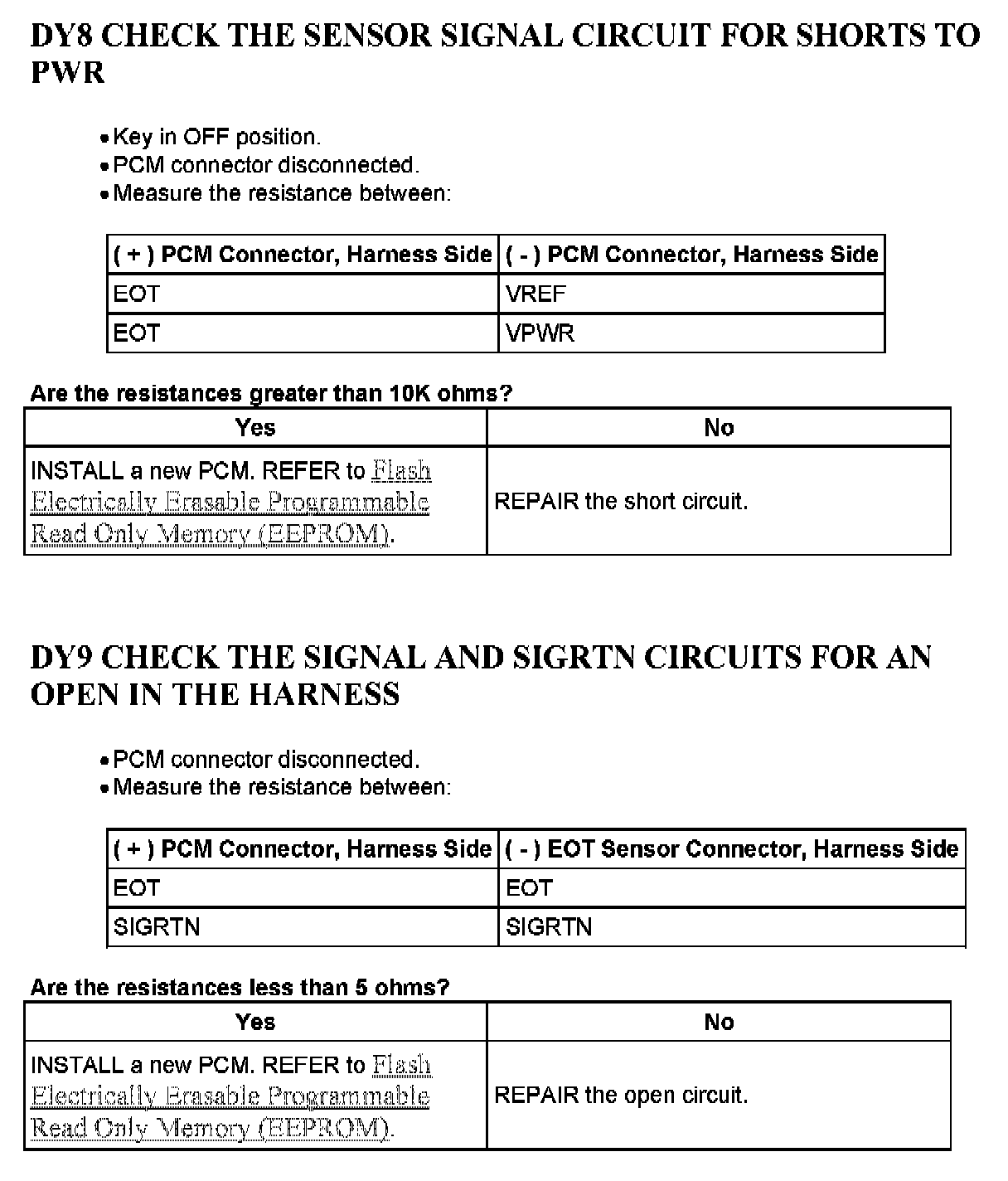

DY8 - DY9:

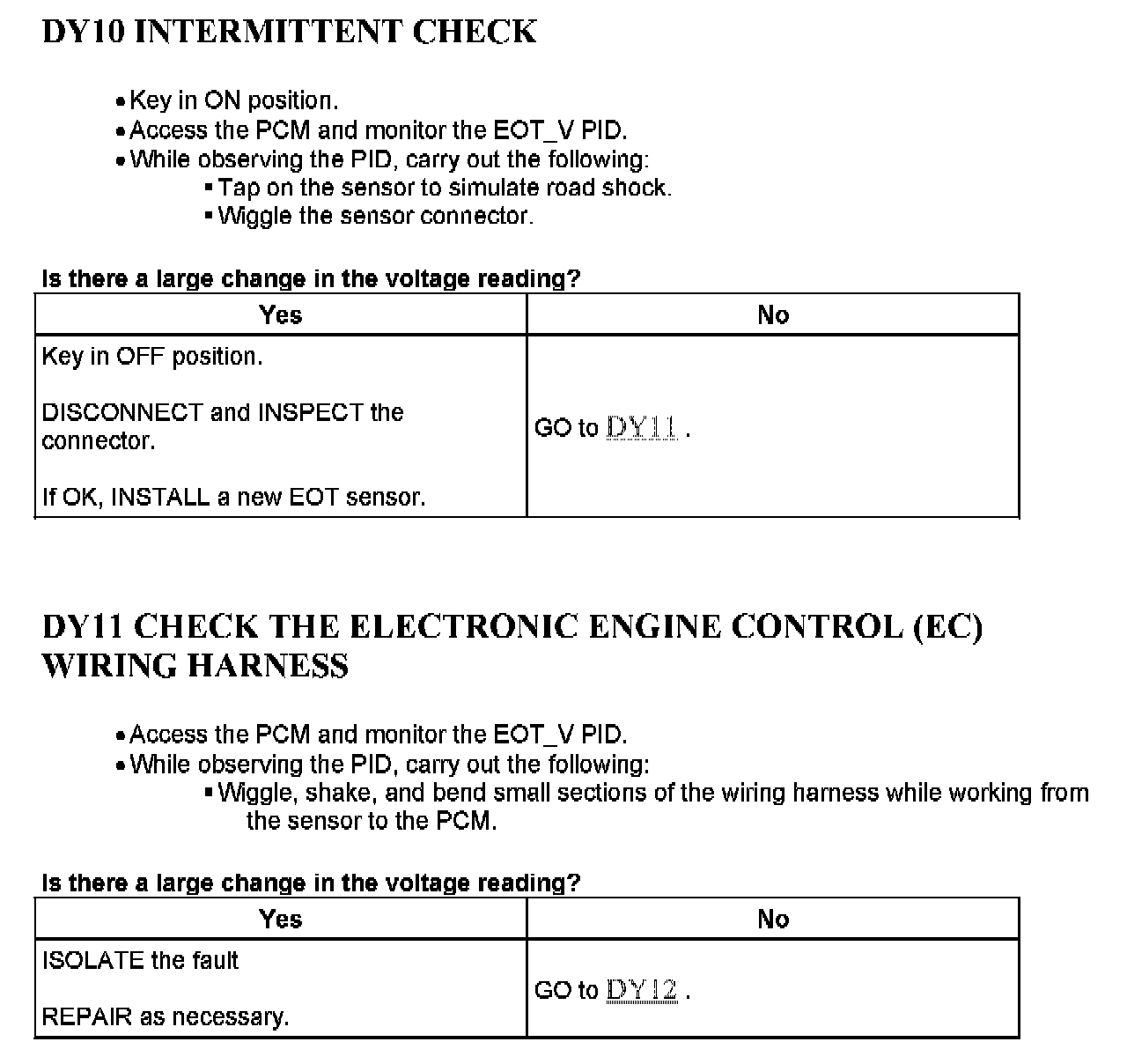

DY10 - DY11:

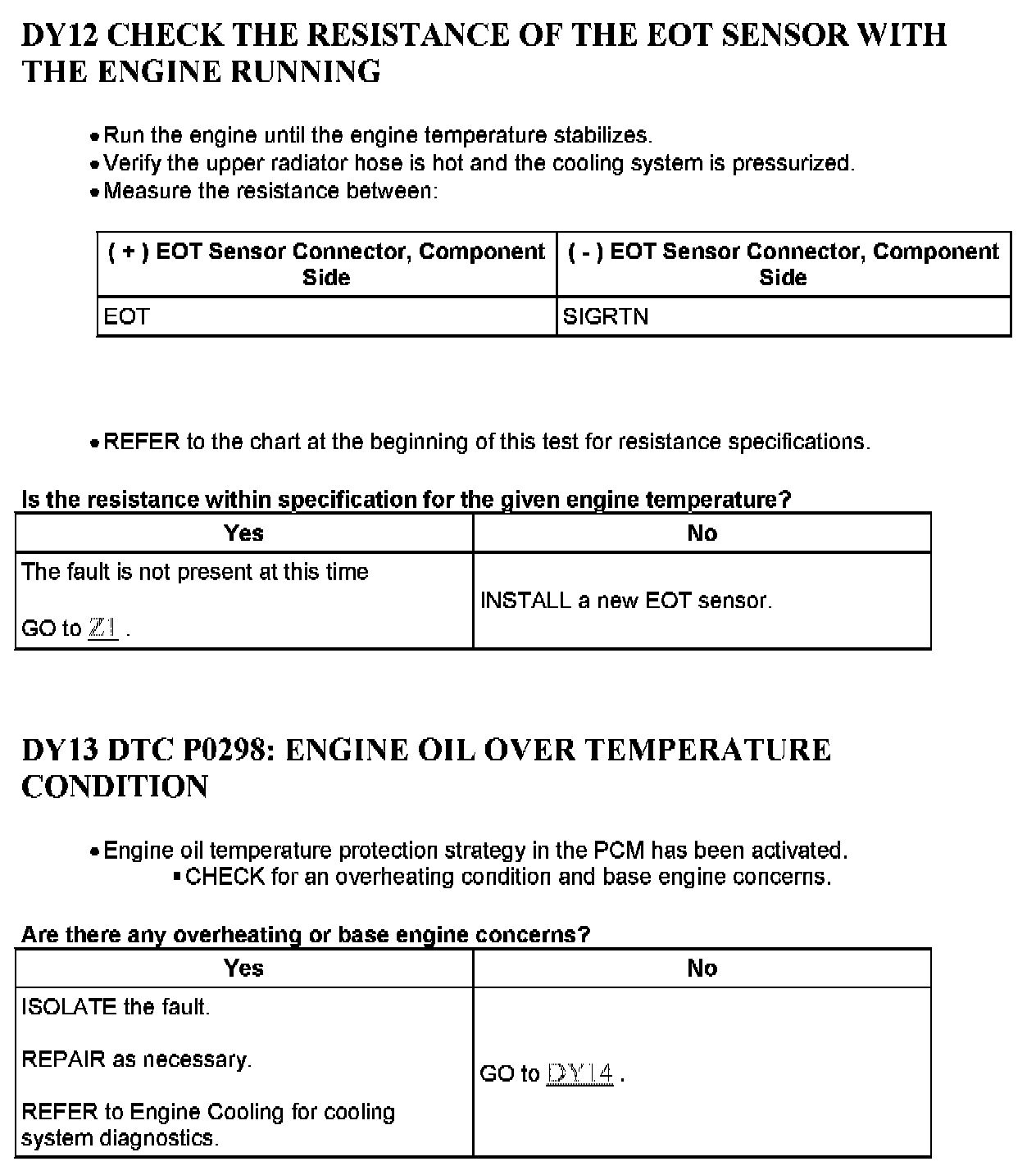

DY12 - DY13:

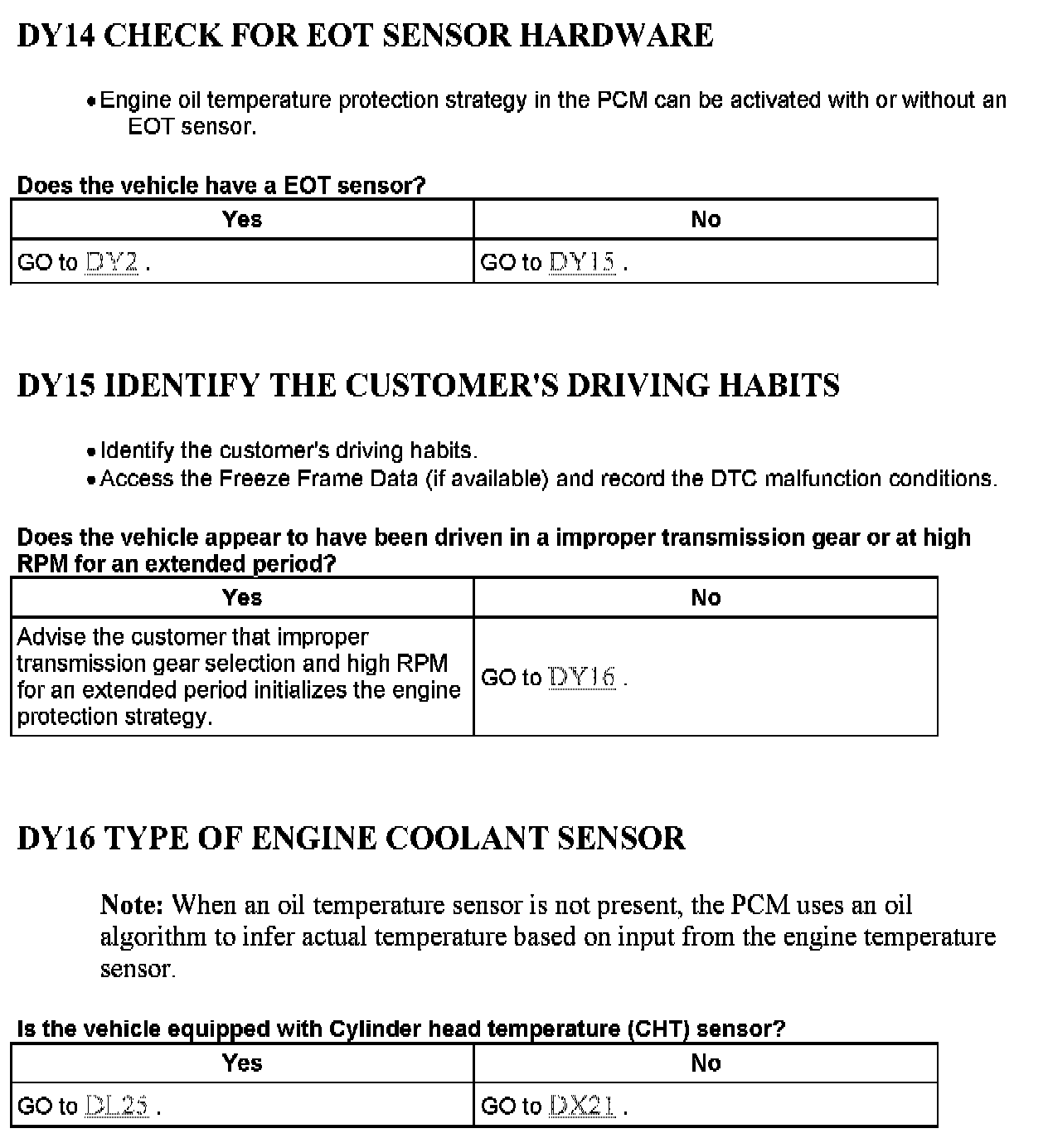

DY14 - DY16:
