Coolant Pump Belt

Coolant Pump Belt





Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

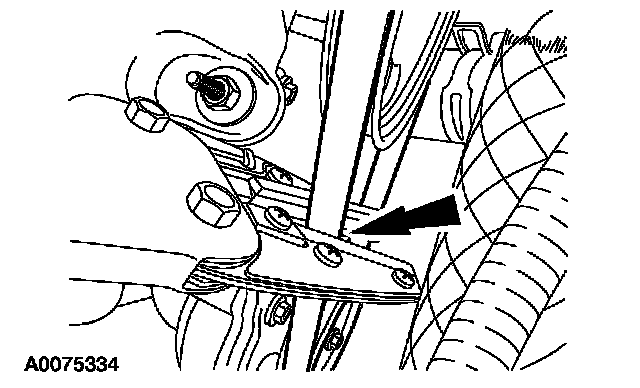

2. Remove the bolts and the RH splash shield.
3. Remove the 2 nuts and the coolant belt pump shield.





4. Cut and remove the water pump belt.
^ Discard the belt.

Installation





1. Install the water pump belt on the water pump pulley and position it on the camshaft pulley.

2. CAUTION: Do not use any screwdrivers, pliers or other metal objects that could cause damage to the belt or camshaft pulley while installing the belt.

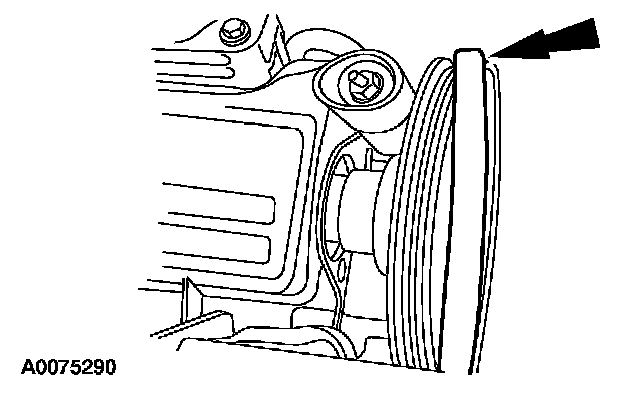

Rotate the crankshaft clockwise to seat the water pump belt on the camshaft pulley.

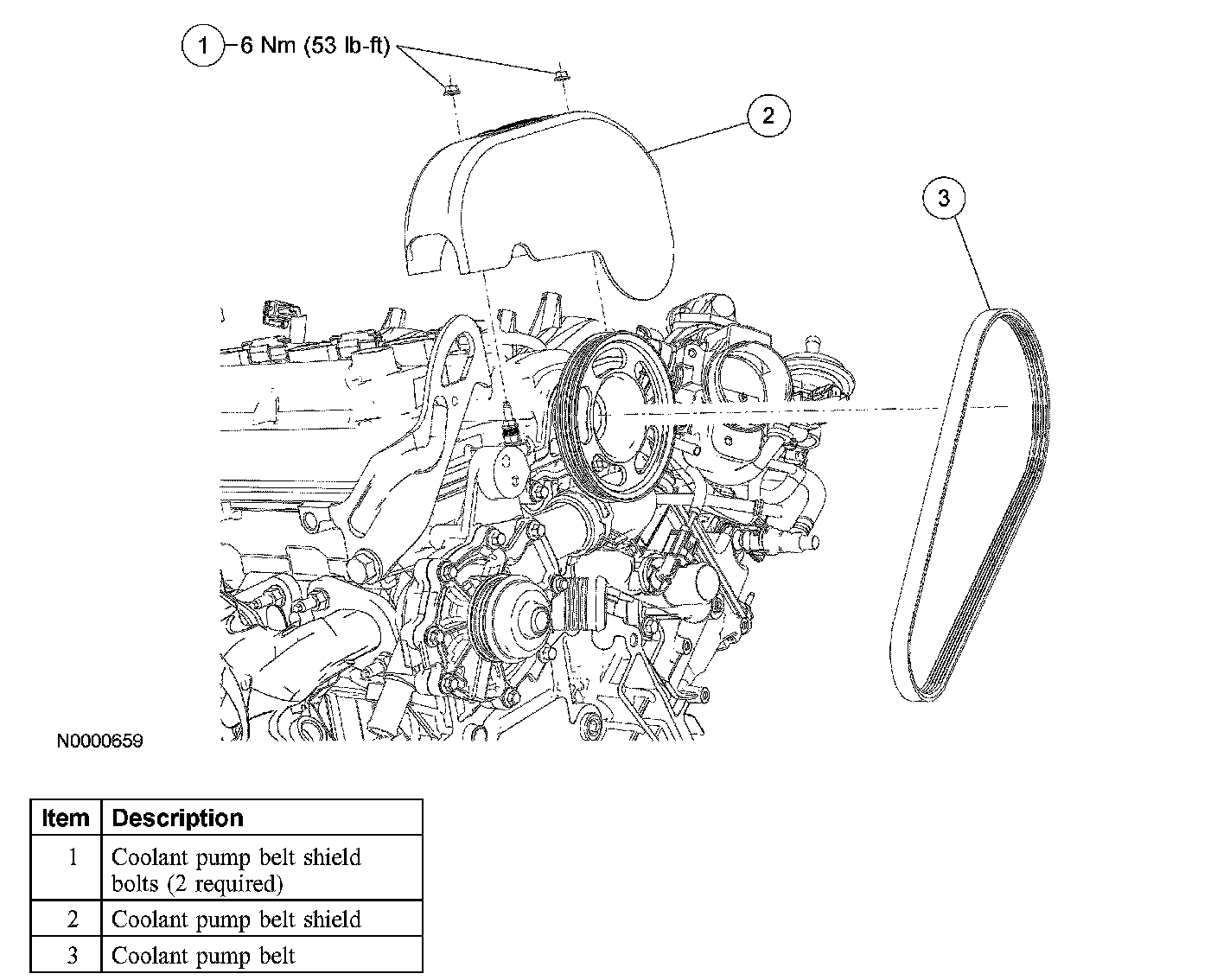

3. Install the coolant pump belt shield and the nuts.
^ Tighten to 6 Nm (53 inch lbs.).
4. Install the RH splash shield and the bolts.
^ Tighten to 7 Nm (62 inch lbs.).
