Turn Signal Lamp: Service and Repair

SIDE TURN SIGNAL LAMP

Removal and Installation

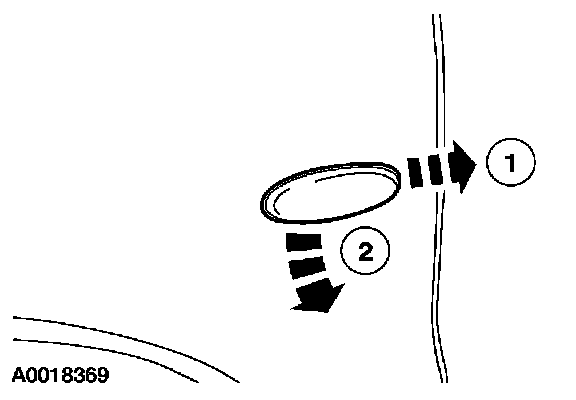

1. Remove the side marker lamp.
1 Push the side marker lamp rearward.
2 Pull outward from the front of the side lamp and remove.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
