Test G: The Battery Saver Does Not Deactivate After Time-Out

PINPOINT TEST G: THE BATTERY SAVER DOES NOT DEACTIVATE AFTER TIME-OUT

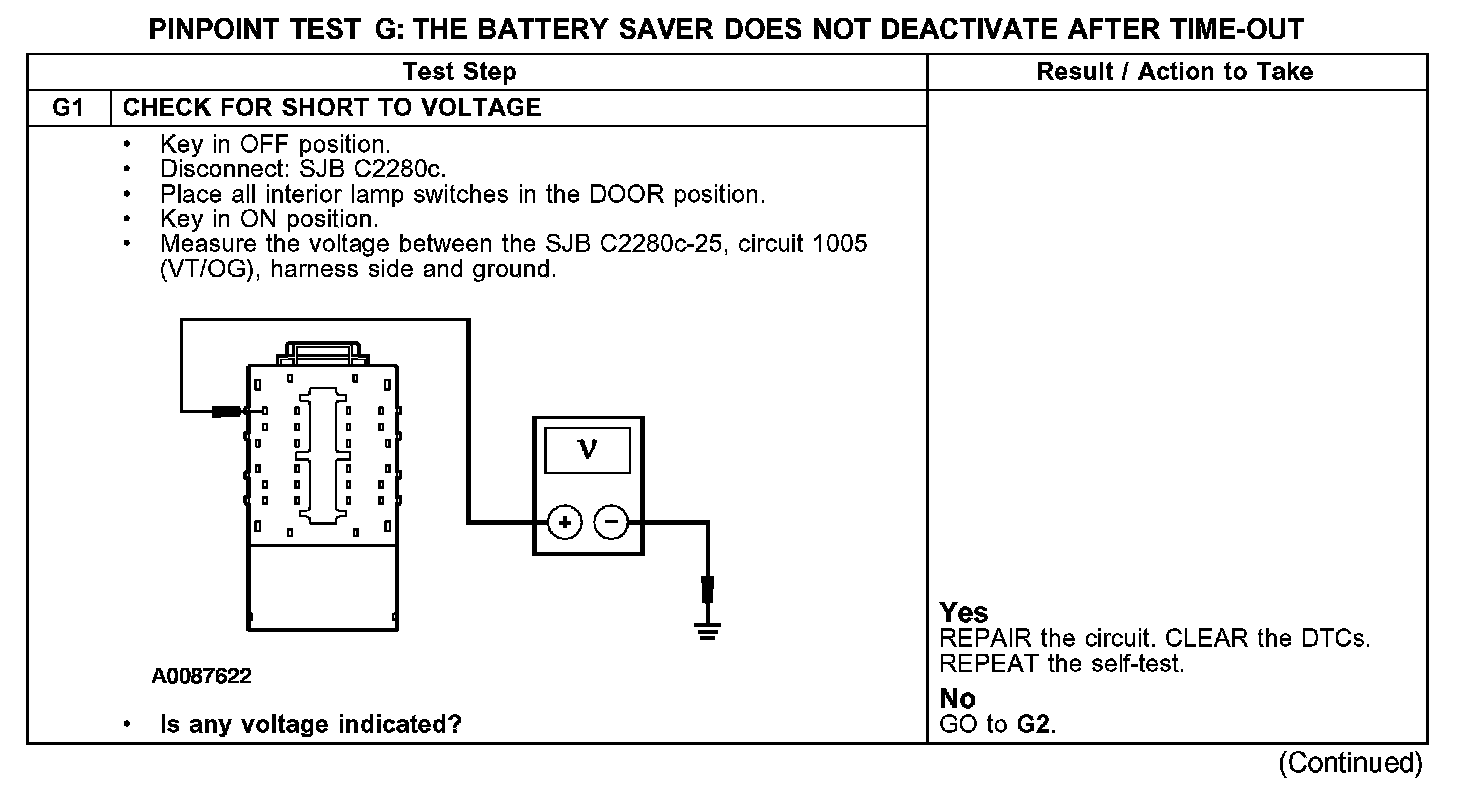

G1:

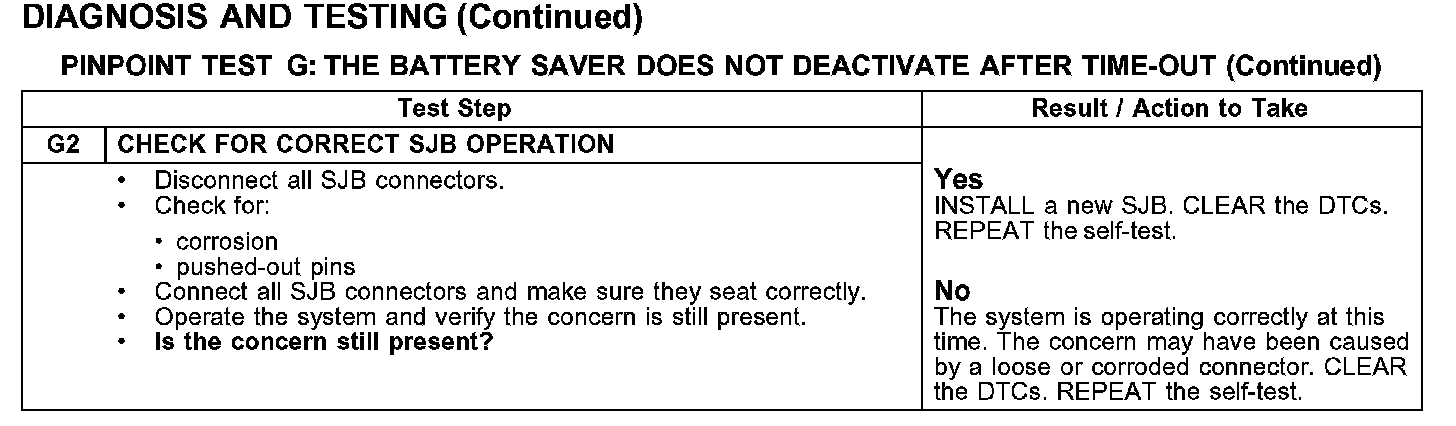

G2:

Normal Operation
The battery saver provides voltage to circuit 1005 (VT/OG). Circuit 1005 (VT/OG) provides voltage to each demand lamp. Each demand lamp switch, when activated, provides ground to the selected lamp. The lamps are grounded through circuit 570 (BK/WH) or 57 (BK). The battery saver deactivates the voltage circuit when the SJB has timed out.

Possible Causes
- circuit 1005 short to voltage
- SJB
