Test F: The Illuminated Entry Is Inoperative When Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST F: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

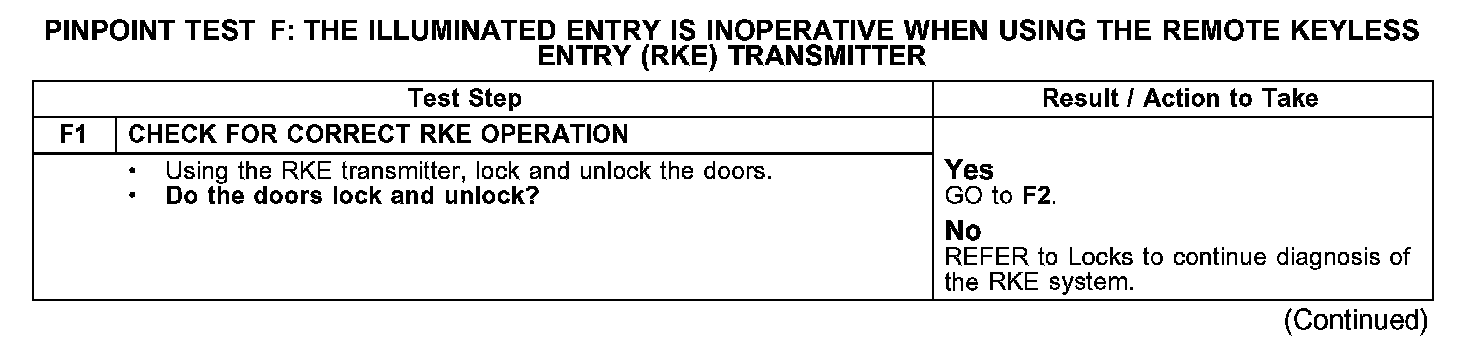

F1:

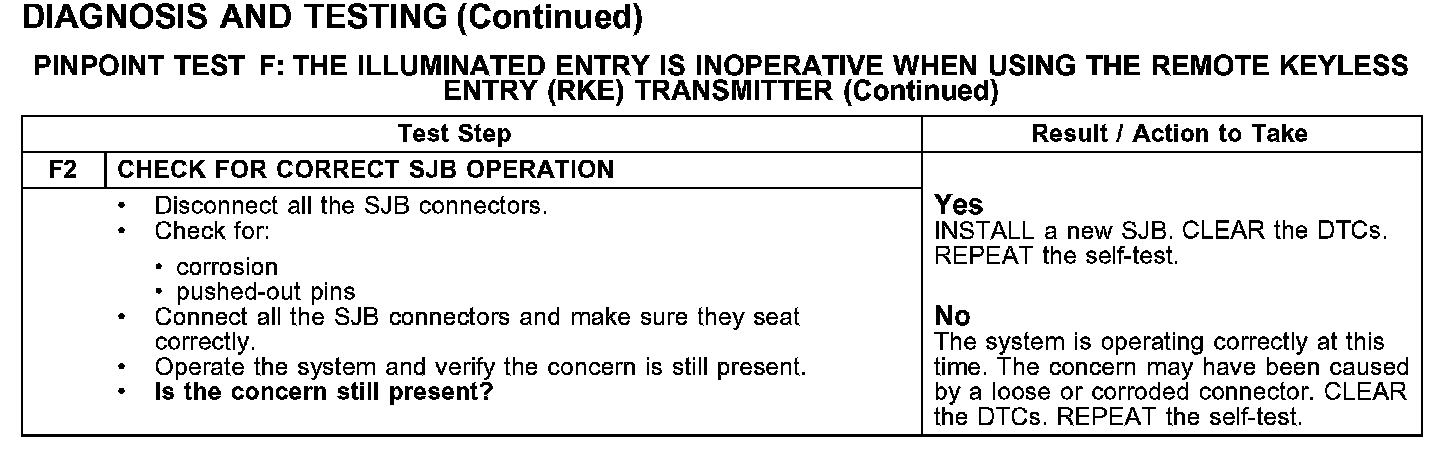

F2:

Normal Operation
The illuminated entry provides interior lighting whenever the SJB receives a lamps ON/doors UNLOCK request from the RKE transmitter. The SJB provides the voltage and ground circuits for the interior/map lamps.

Possible Causes
- RKE transmitter
- SJB
