Test D: The Turn Signal Left On Warning Chime Is Inoperative

PINPOINT TEST D: THE TURN SIGNAL LEFT ON WARNING CHIME IS INOPERATIVE

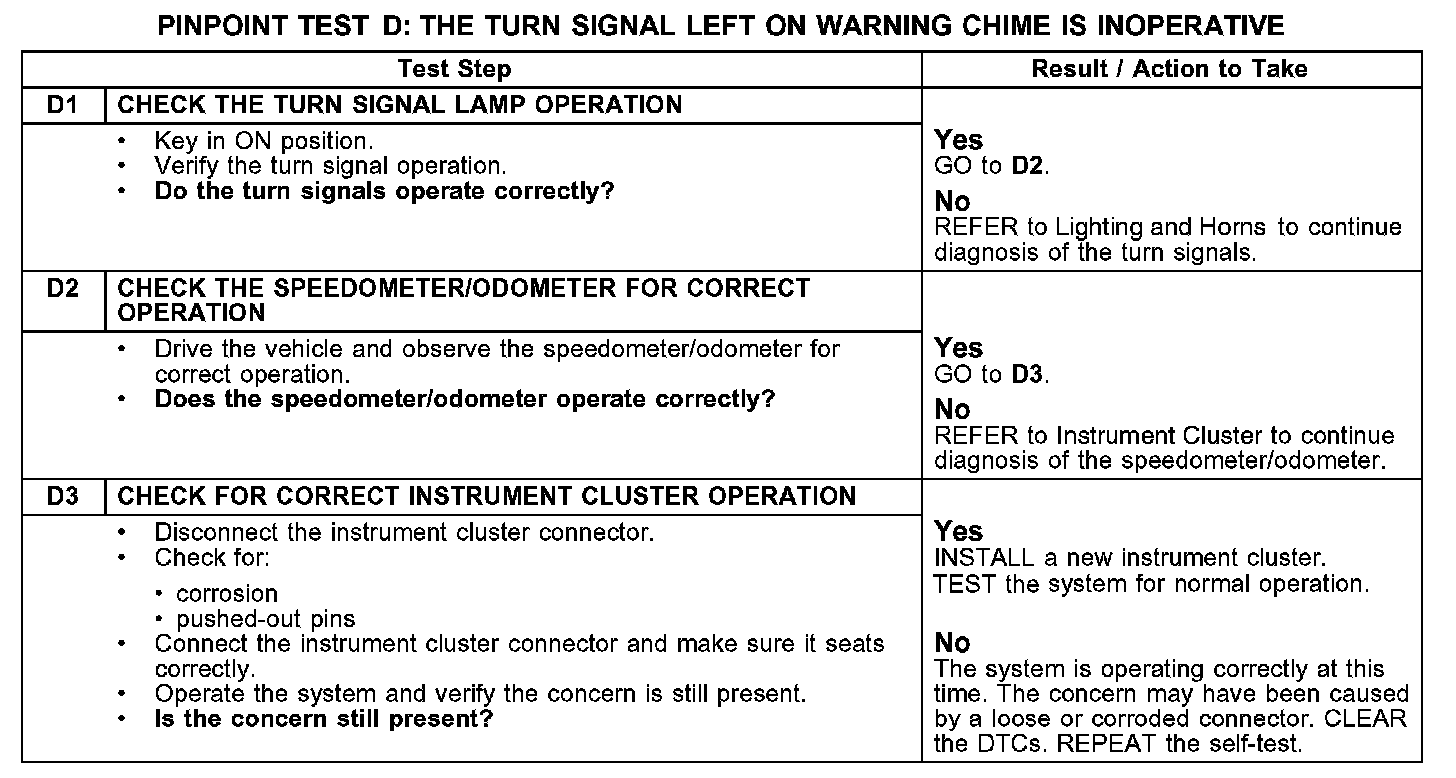

D1-D3:

Normal Operation
The turn signal left on chime will sound when the vehicle travels more than 0.8 km (0.5 mile) with the turn signal on. The smart junction box (SJB) communicates the turn signal switch status to the instrument cluster. The anti-lock brake system (ABS) module (Escape, Mariner) or the traction control module (TCM) (Escape Hybrid) communicates the odometer count data to the instrument cluster.

Possible Causes
- instrument cluster
- ABS module (Escape, Mariner)
- TCM (Escape Hybrid)
- SJB
