Test U: The Electric Power Charge/Assist Gauge Is Inoperative

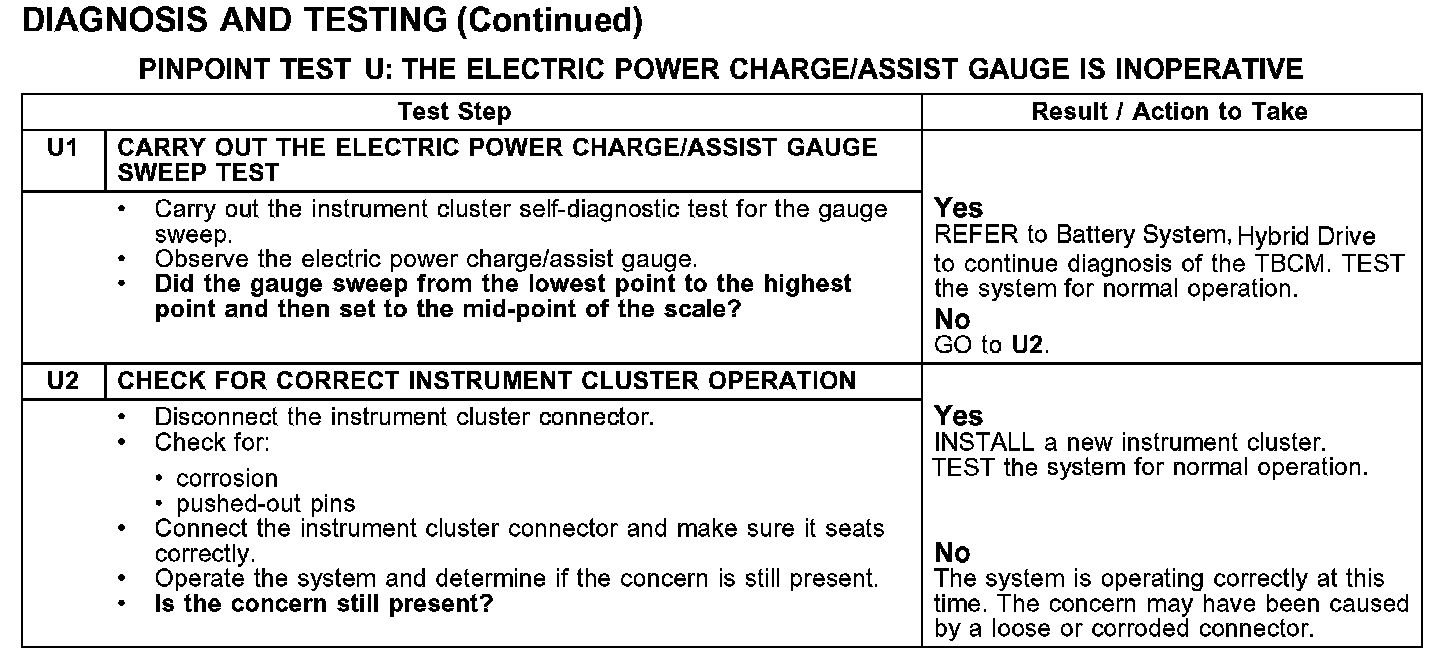

PINPOINT TEST U: THE ELECTRIC POWER CHARGE/ASSIST GAUGE IS INOPERATIVEU1-U2:
Normal Operation
The electric power charge/assist gauge indicates the amount of the electric power to and from the traction battery. The gauge provides the vehicle hybrid electric system current working status. This gauge consists of the charge and assist ranges. The scale ranges from maximum charge power to 0 power and from 0 power to maximum assist/boost power. If the pointer remains in the middle point of the gauge, it indicates no electric charge and no assist. The input to the gauge is a CAN message received from the traction battery control module (TBCM).
Possible Causes
- instrument cluster
