Instrument Cluster

INSTRUMENT CLUSTER LENS

Removal and Installation
1. Remove the instrument cluster.

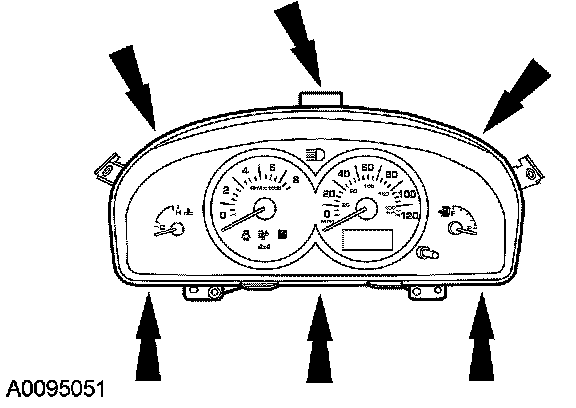

2. Release the 6 tabs on the lens and remove the lens from the instrument cluster.
3. To install, reverse the removal procedure.
