Instrument Cluster Bulb

INSTRUMENT CLUSTER BULB







Removal and Installation
1. Remove the instrument cluster.

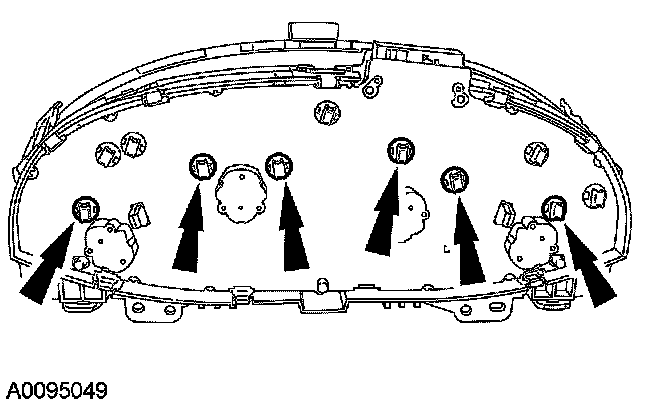

2. NOTE: To remove the illumination bulb, rotate the bulb one quarter turn counterclockwise and lift it straight out from the instrument cluster.

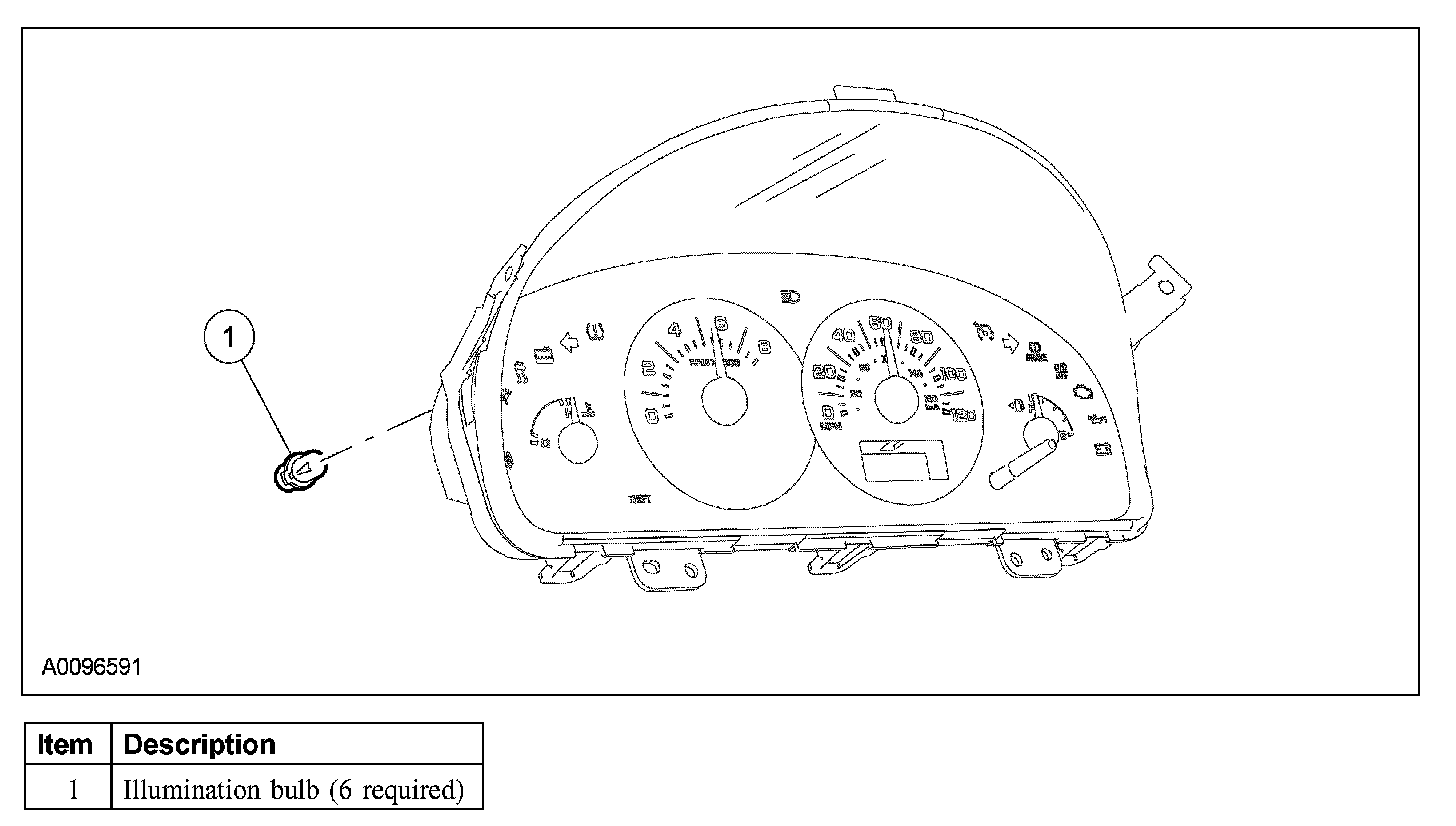

Remove the illumination bulb(s) in question.

3. To install, reverse the removal procedure.
