Evaporator Inlet Line

EVAPORATOR INLET LINE







Removal and Installation
1. Recover the refrigerant.

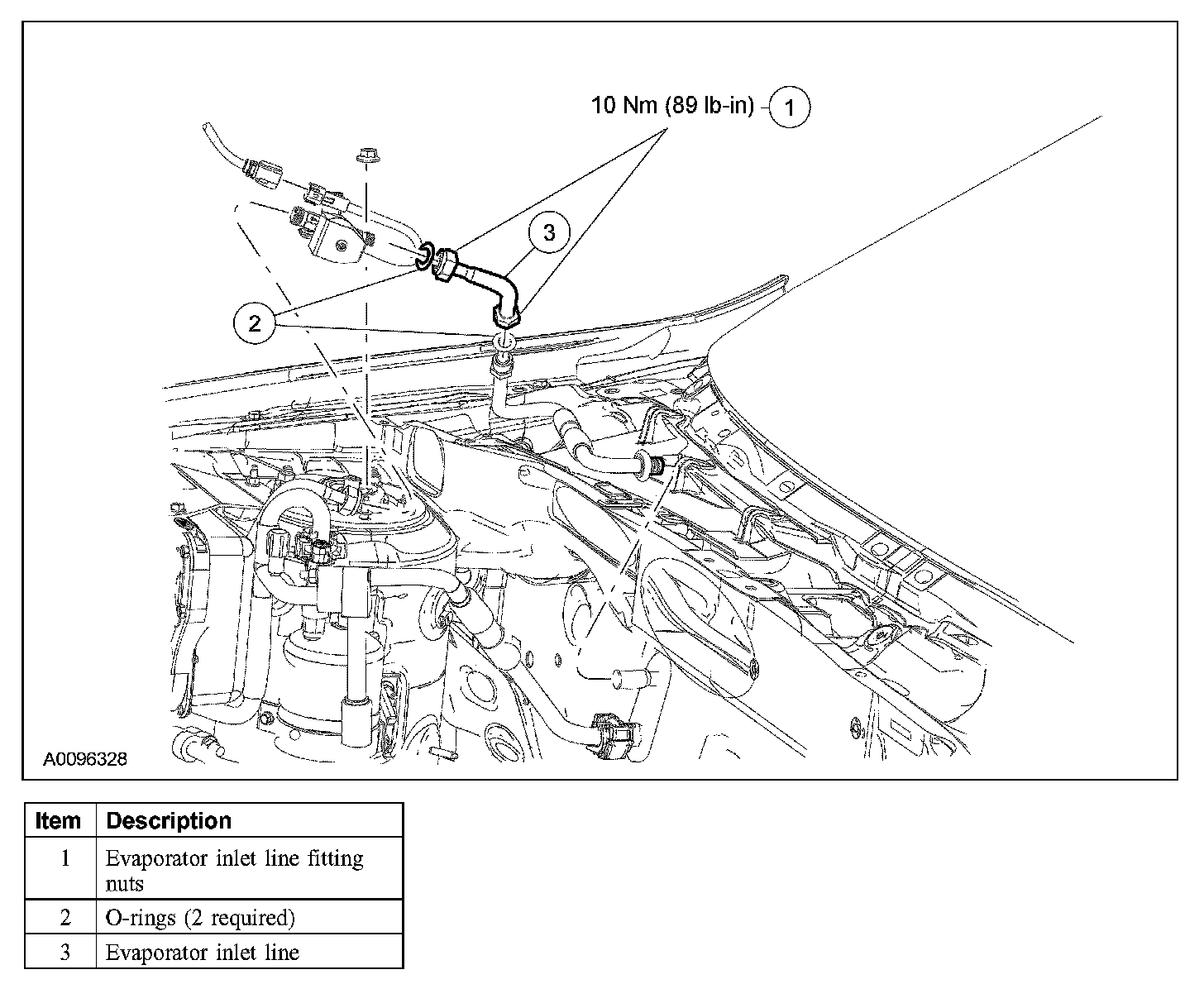

2. Loosen the nuts and disconnect the evaporator inlet line fittings.
- Remove and discard the O-rings.
- To install, tighten to 10 Nm (89 lb-in).

3. Remove the evaporator inlet line.

4. NOTE: New O-ring seals, lubricated in clean mineral oil, must be installed before reconnecting any A/C fitting which has been disconnected.

To install, reverse the removal procedure.
- Charge and leak test the refrigerant system.
