Evaporator Case: Service and Repair

EVAPORATOR CORE HOUSING







Removal and Installation

NOTE:
- If an evaporator core leak is suspected, the evaporator core must be vacuum leak tested before it is removed from the vehicle.
- Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant.
2. Remove the instrument panel.

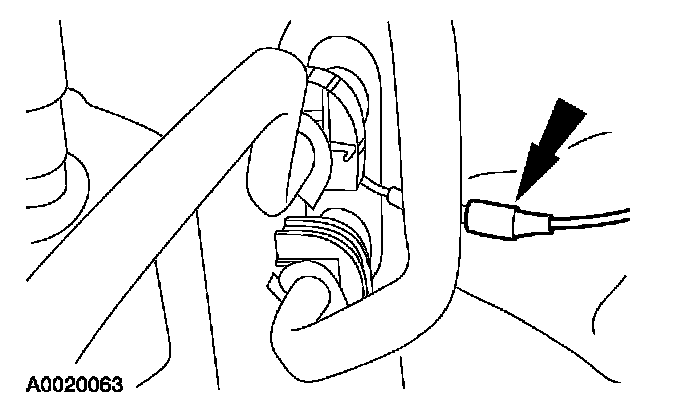

3. Disconnect the vacuum hose.

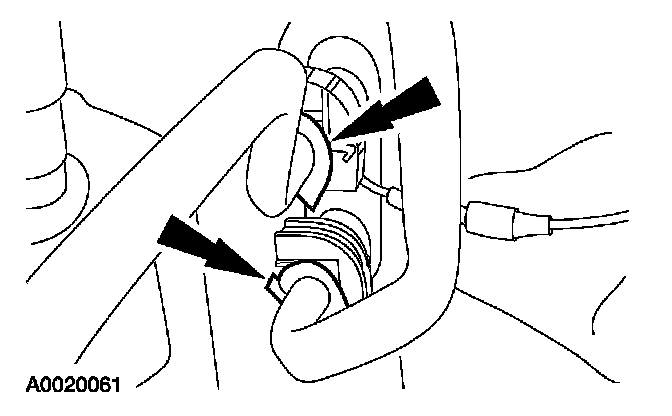

4. Disconnect the 2 evaporator core spring lock couplings.

5. NOTE: Carefully remove the evaporator core housing to avoid spilling PAG compressor oil in the passenger area.

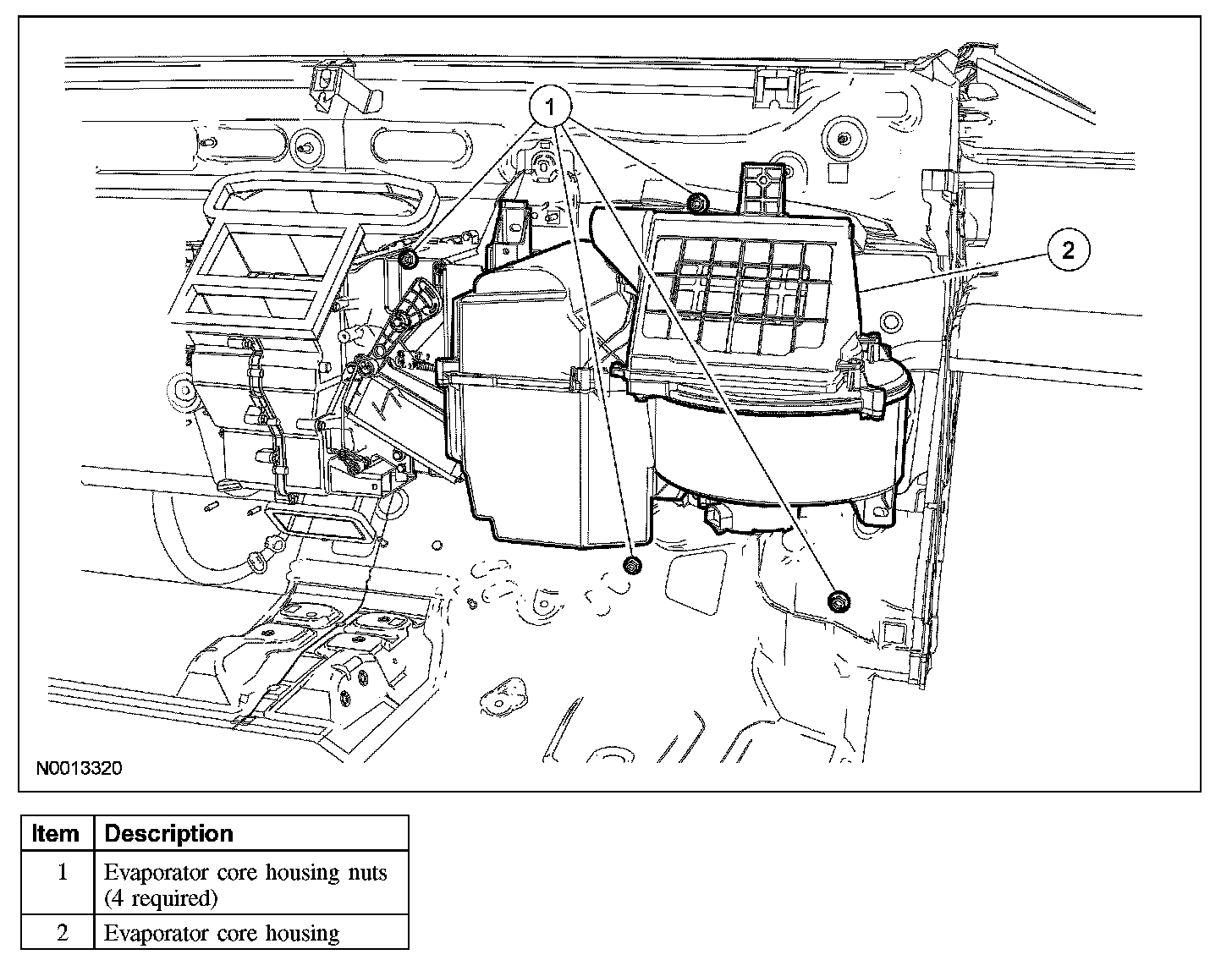

Remove the 4 evaporator core housing nuts and the evaporator core housing.

6. NOTE:
- Feed the vacuum hose through the opening in the cowl while installing the housing.
- Before installing the temperature control cable, make sure the blend door, cable and temperature switch are correctly positioned.

To install, reverse the removal procedure.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

7. Evacuate, leak test and charge the refrigerant system.
