Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR







Removal and Installation
1. Remove the RH A-pillar lower trim panel.

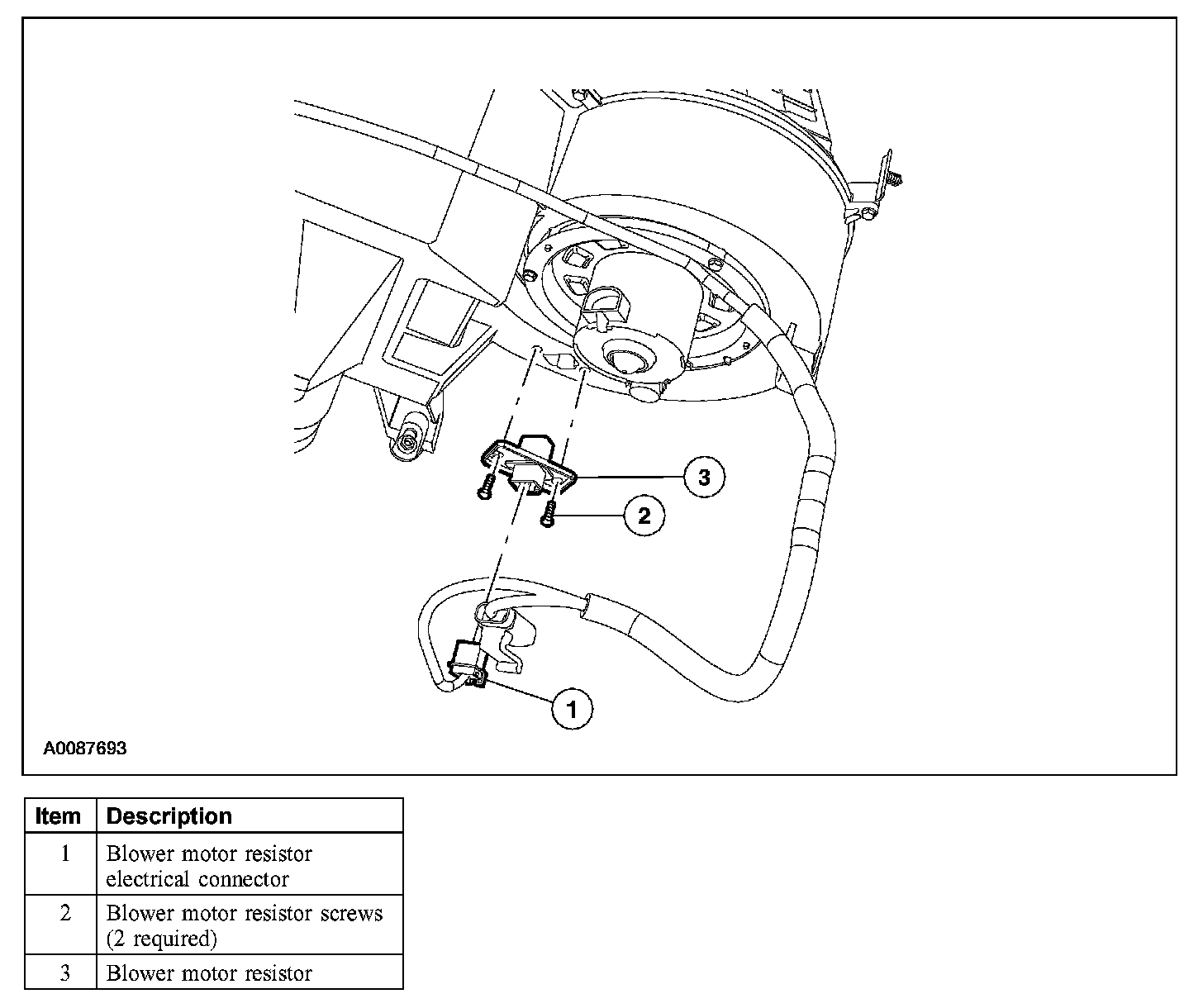

2. Disconnect the blower resistor electrical connector.
3. Remove the 2 screws and the blower motor resistor.
4. To install, reverse the removal procedure.
