Air Duct: Service and Repair

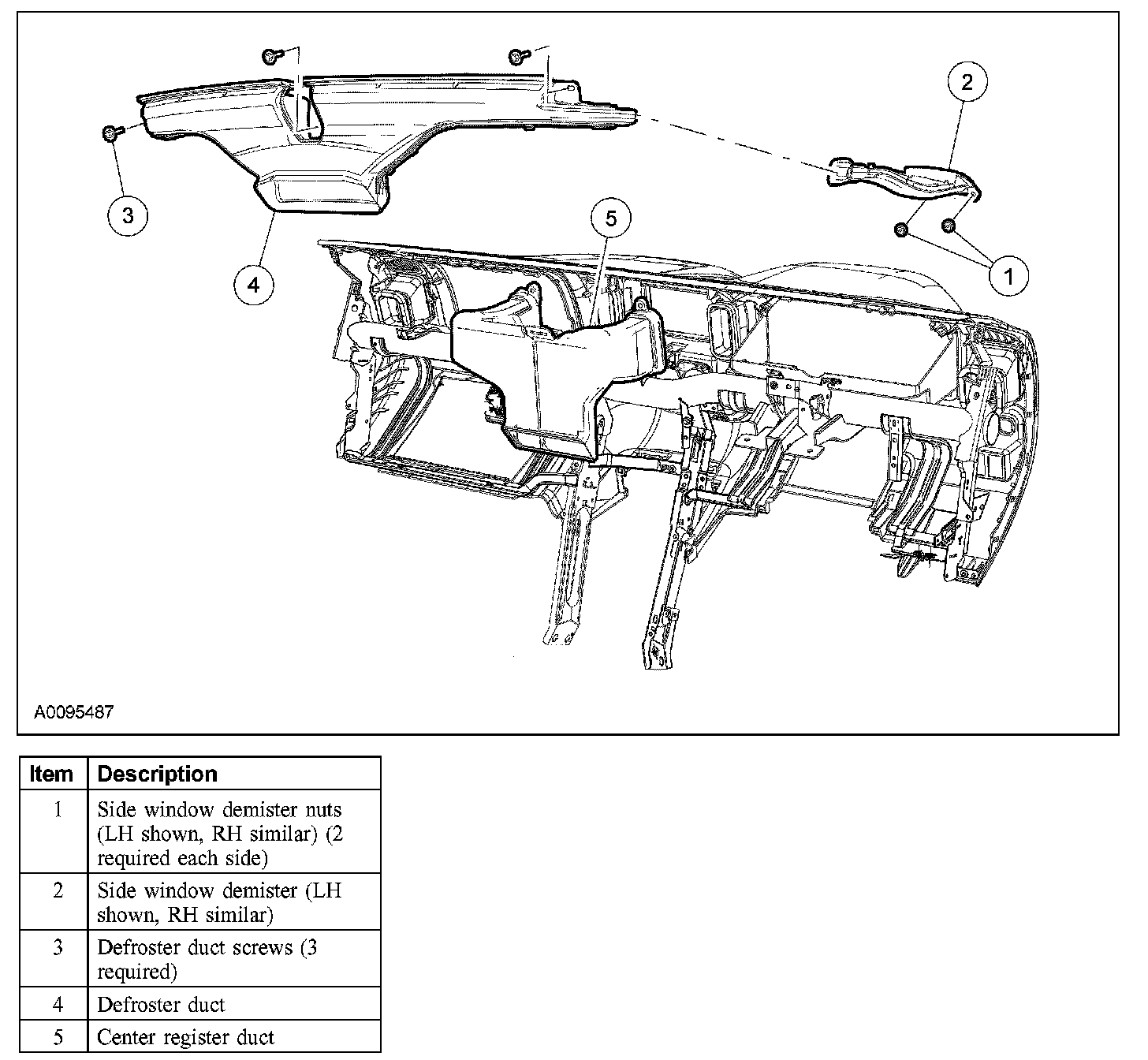

DEFROSTER DUCT







Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

2. Remove the 4 side window demister nuts and both side window demisters.
3. Remove the 3 defroster duct screws and the defroster duct.
4. To install, reverse the removal procedure.

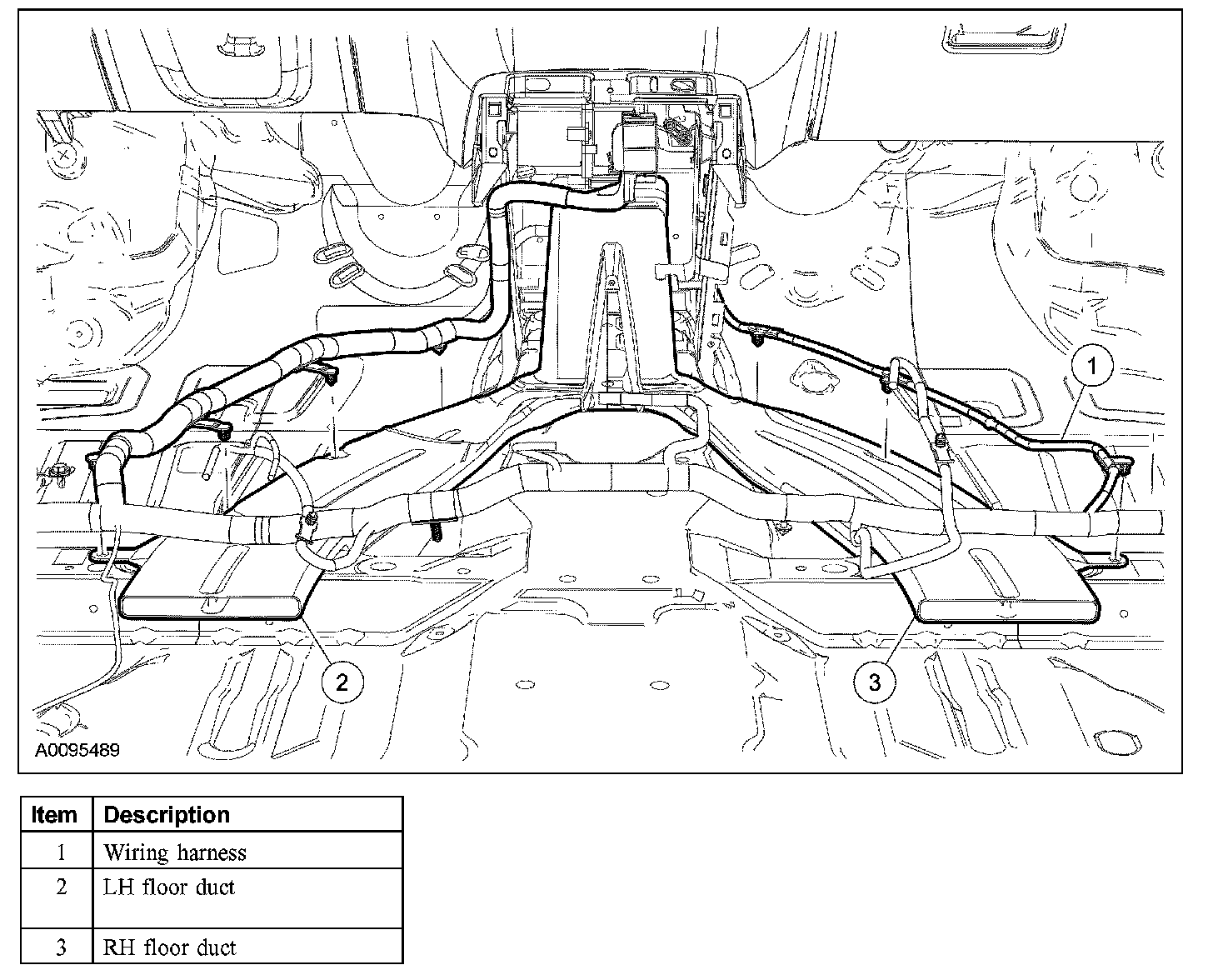

FLOOR DUCT







Removal and Installation
1. Remove the driver and front passenger seats.
2. Remove the floor console.
3. Remove the front door scuff plate trim panels and the lower A-pillar trim panels.
4. Pull back the carpeting to gain access to the floor ducts.
5. Separate the wiring harness from the floor ducts and position aside.
6. Remove the floor duct.
7. To install, reverse the removal procedure.

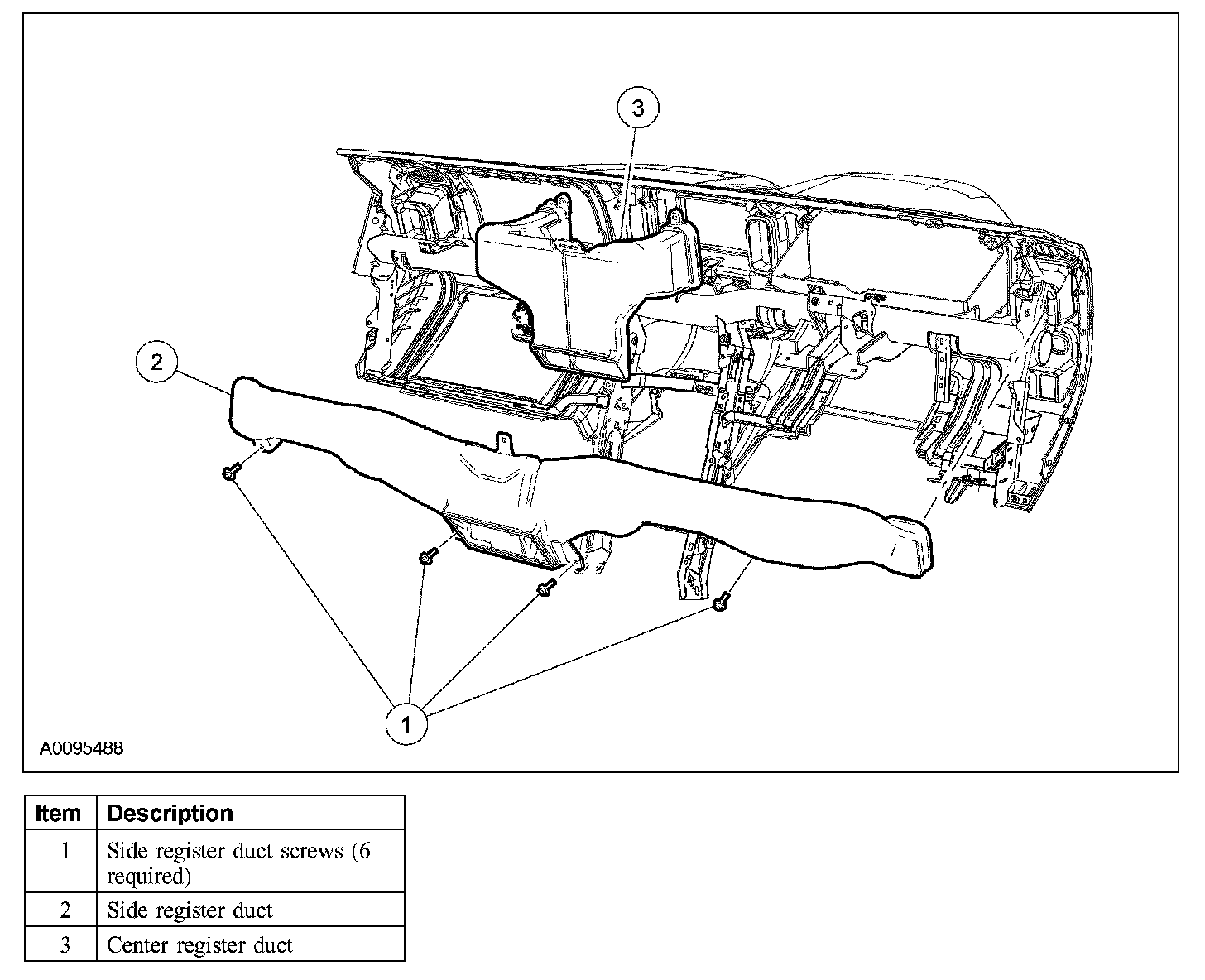

CENTER REGISTER DUCT







Removal and Installation
1. Remove the defroster duct.
2. Remove the 6 side register duct screws and the register duct assembly.
- Separate the side register duct from the center register duct by disengaging the tab from the slot on the center register duct.

3. To install, reverse the removal procedure.
