Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

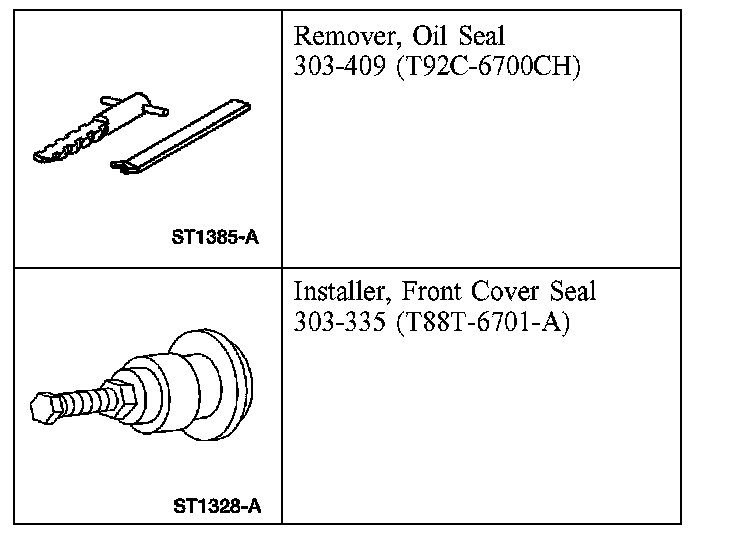

Special Tool(s)

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the crankshaft pulley.

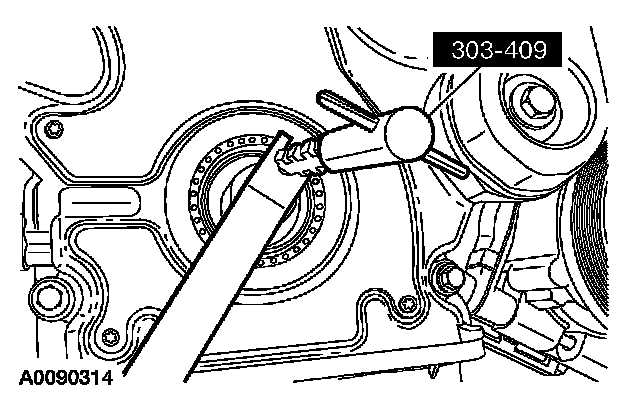

3. Using the special tool, remove and discard the crankshaft front seal.

Installation
1. Lubricate the front cover and the crankshaft front seal inner lip with clean engine oil.

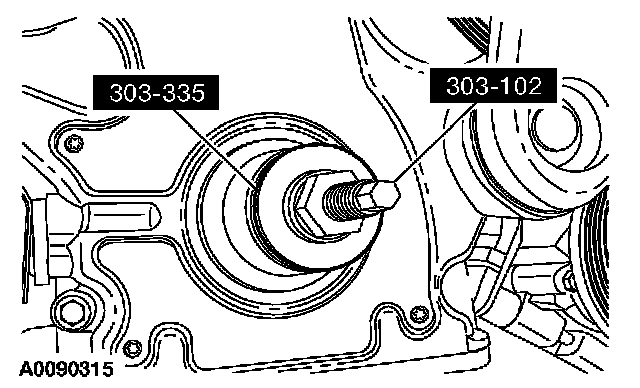

2. Using the special tools, install a new crankshaft front seal.
