Rocker Arm Assembly: Service and Repair

Camshaft Roller Follower

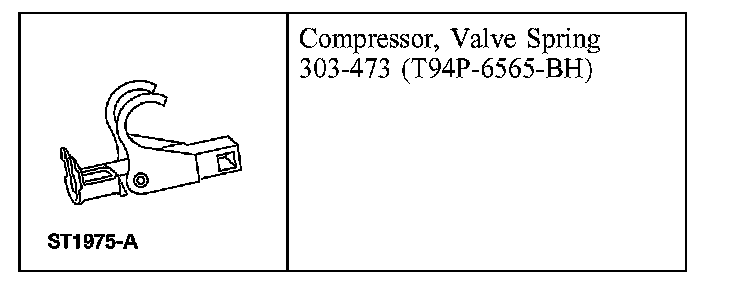

Special Tool(s)

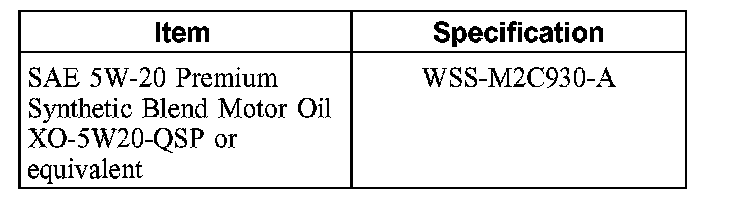

Material

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the LH and RH valve covers.
3. Remove the 6 spark plugs.
^ To install, tighten to 15 Nm (11 ft. lbs.).
4. Remove the RH splash shield.
^ To install, tighten to 9 Nm (80 inch lbs.).
5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the roller follower.

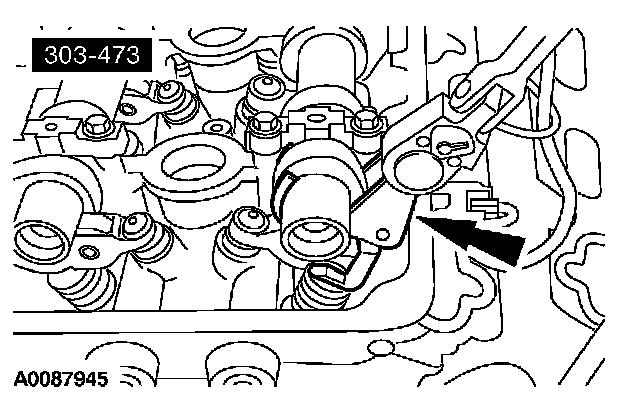

6. Using the special tool, remove the roller followers.

7. NOTE: Lubricate the camshaft followers with clean engine oil.

To install, reverse the removal procedure.
