Camshafts-LH
Camshafts-LHSEE TSB 06-3-5.

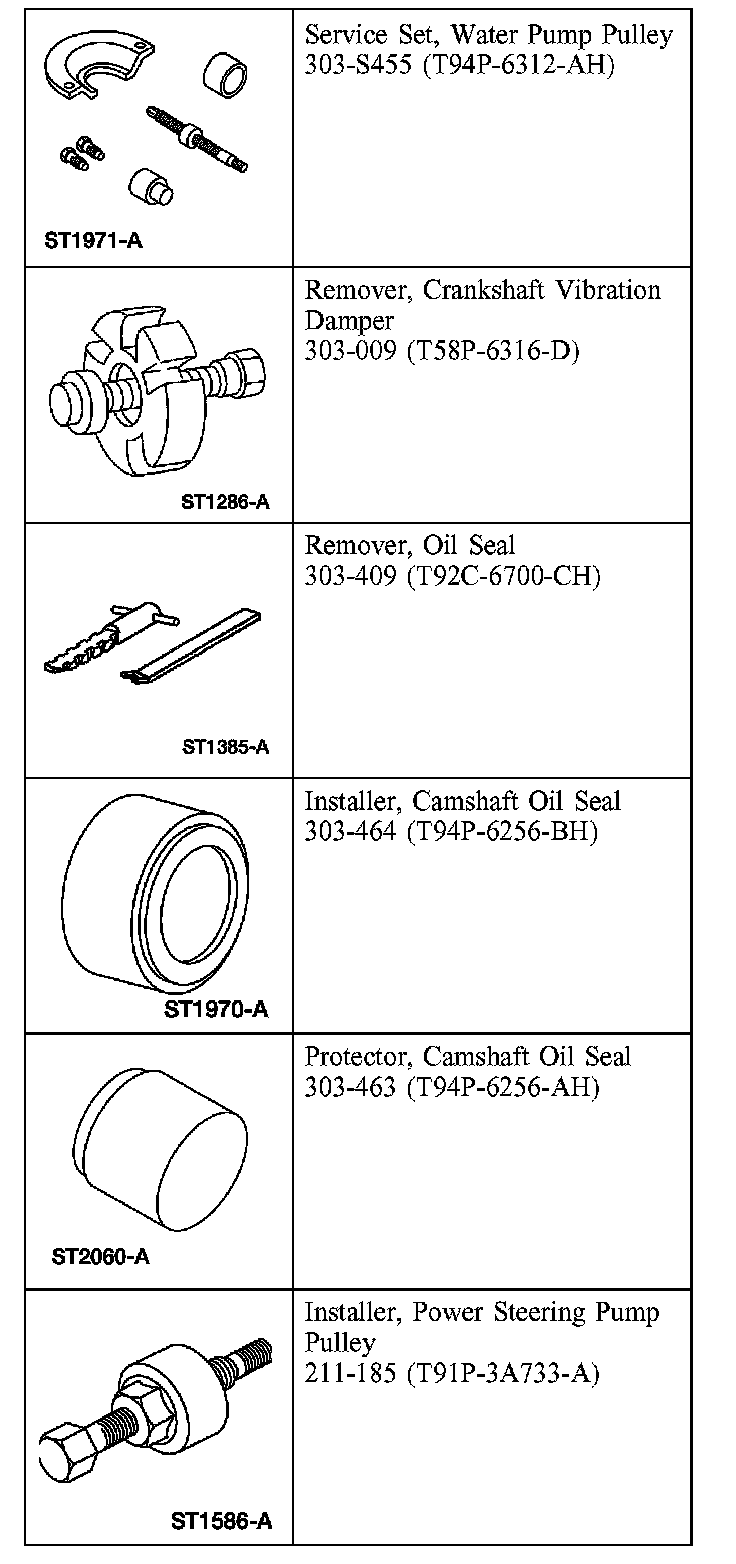

Special Tool(s)

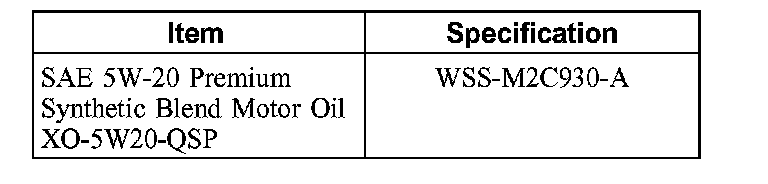

Material
Removal
1. Remove the coolant pump belt.
2. Remove the timing drive components.
3. CAUTION: The OEM pulley is pressed on 4.74 mm (0.18 inch) past flush of the end of the camshaft. The service pulley is pressed on flush to the end of the camshaft.

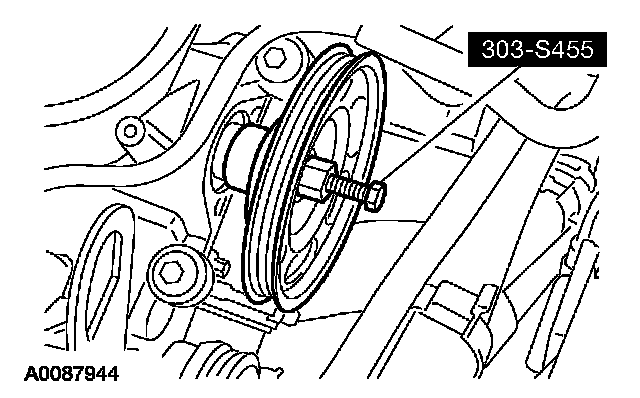

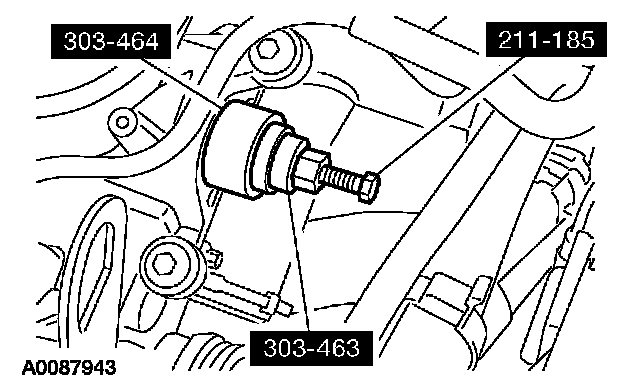

Using the special tools, remove and discard the coolant pump pulley.
4. NOTE: To make sure of correct sealing, do not scratch the camshaft.

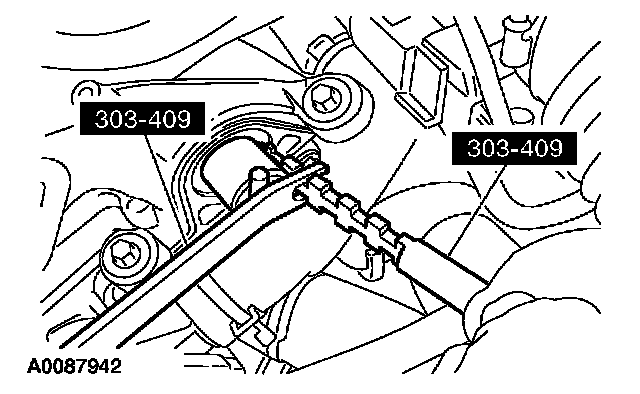

Using the special tools, remove and discard the camshaft oil seal.
5. CAUTION: Cylinder head camshaft journal caps and cylinder heads are numbered to verify that they are assembled in their original positions.

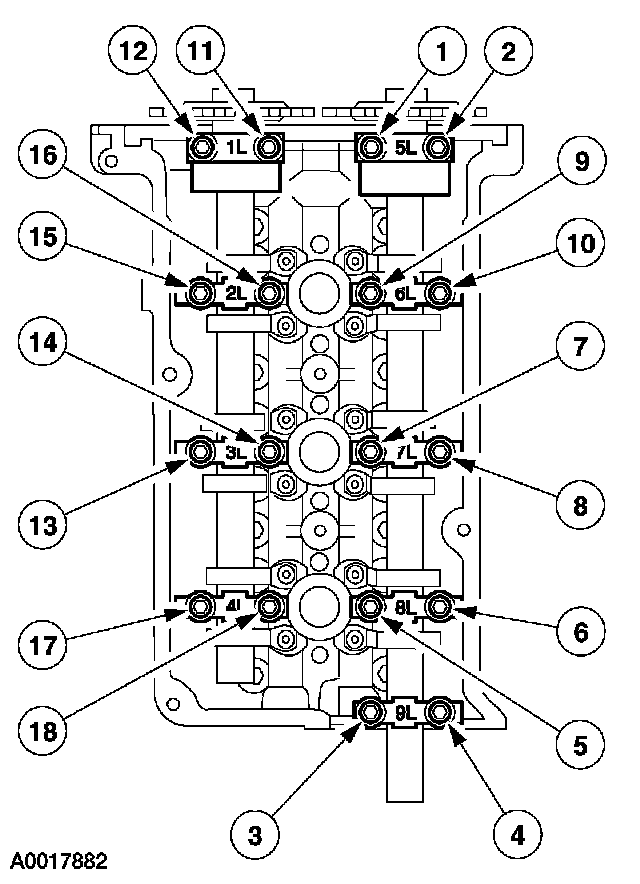

Loosen the LH camshaft bolts evenly in the sequence shown to allow the camshafts to rise from the cylinder head and remove the caps.
Installation SEE TSB 06-3-5.
1. Lubricate the camshafts with clean engine oil and carefully position the camshafts into the cylinder head.

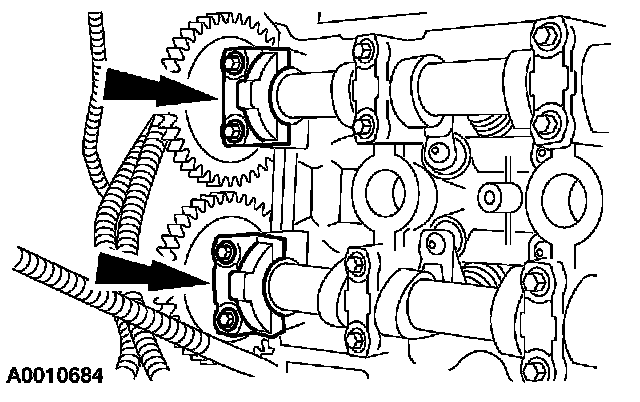

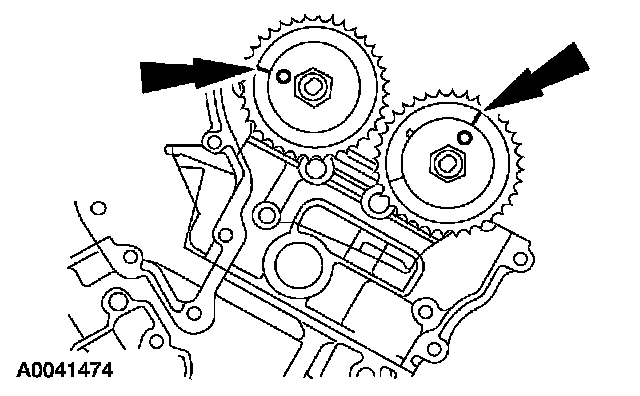

^ Align the camshafts as shown.
2. CAUTION: Do not install the camshaft journal thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps may occur.
Lubricate the bearing surfaces of the camshaft bearing caps with clean engine oil and install the bearing caps.
^ Loosely install the bolts.
3. Lubricate the bearing surfaces of the camshaft bearing thrust caps with clean engine oil and install the bearing thrust caps.
^ Loosely install the bolts.
4. Install the bolts, SEE TSB 06-3-5.

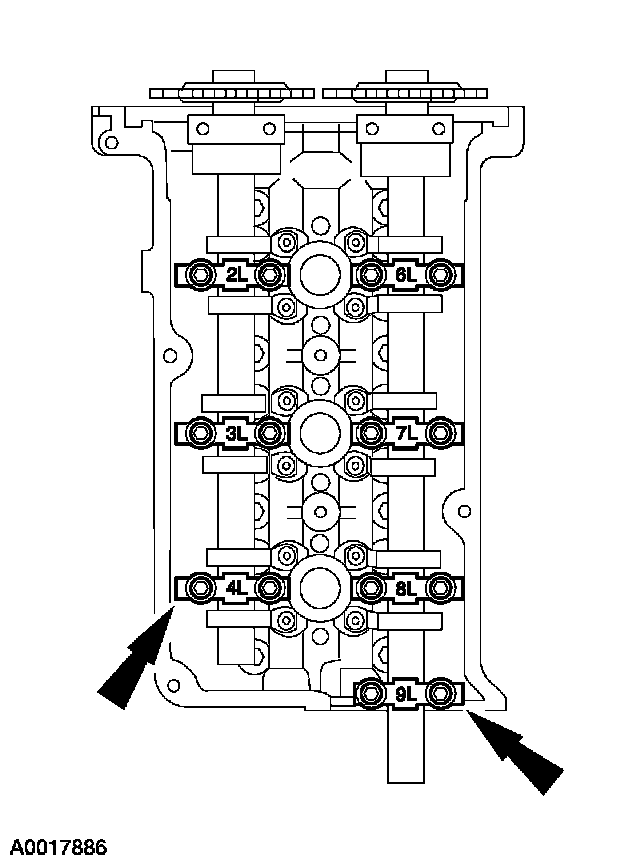

^ Tighten in the sequence shown to 10 Nm (89 inch lbs.).
5. NOTE: Lubricate the camshaft oil seal with clean engine oil.
Using the special tools, install the camshaft oil seal.
6. CAUTION: The OEM pulley is pressed on 4.74 mm (0.18 inch) past flush of the end of the camshaft. The service pulley is pressed on flush to the end of the camshaft.
Using the special tool, install a new service coolant pump pulley.
7. Install the timing drive components.
8. Install the coolant pump belt.
