Fan Shroud: Service and Repair

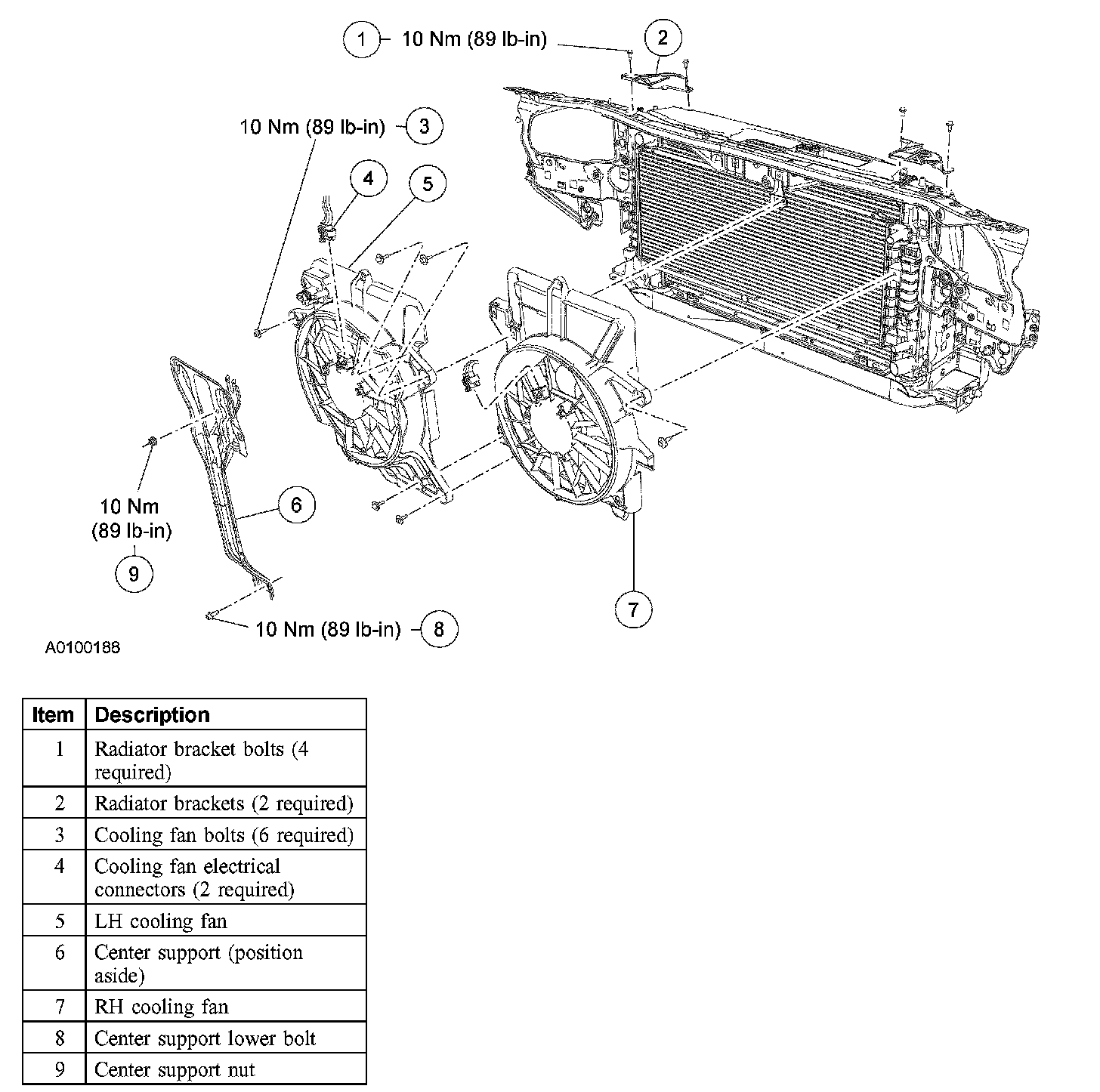

Cooling Fan Motor and Shroud





Removal and Installation
1. With vehicle in NEUTRAL, position it on a hoist.
2. Remove the radiator grille.
3. Remove the front impact severity sensor.
4. Remove the 4 bolts and the 2 radiator brackets.
^ To install, tighten to 10 Nm (89 inch lbs.).
5. Remove the center support lower bolt.
^ To install, tighten to 10 Nm (89 inch lbs.).
6. Remove the nut and the center support.
^ To install, tighten to 10 Nm (89 inch lbs.).
7. Disconnect the cooling fan electrical connectors
8. Remove the 6 cooling fan bolts.
^ To install, tighten to 10 Nm (89 inch lbs.).

9. NOTE: Remove the LH cooling fan first and slide the RH cooling fan to the left side to remove.

Remove the LH and the RH cooling fans.
10. To install, reverse the removal procedure.
