Clutch Pedal Position (CPP) Switch C2070

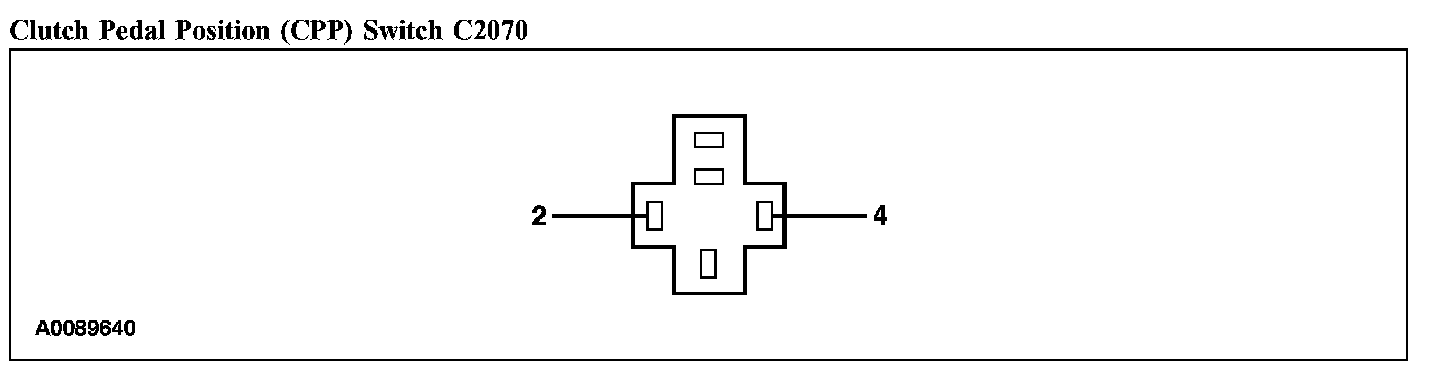

Clutch Pedal Position (CPP) Switch C2070 (Part 1):

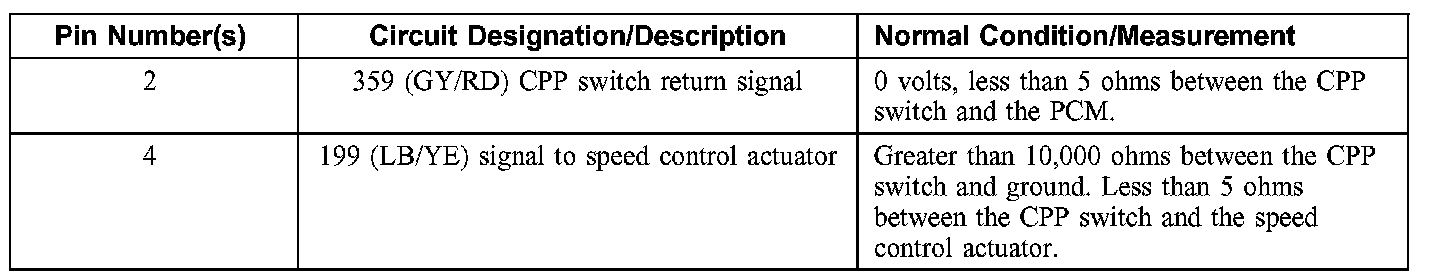

Clutch Pedal Position (CPP) Switch C2070 (Part 2):
