Parking Brake Cable: Adjustments

Parking Brake Cable Adjustment

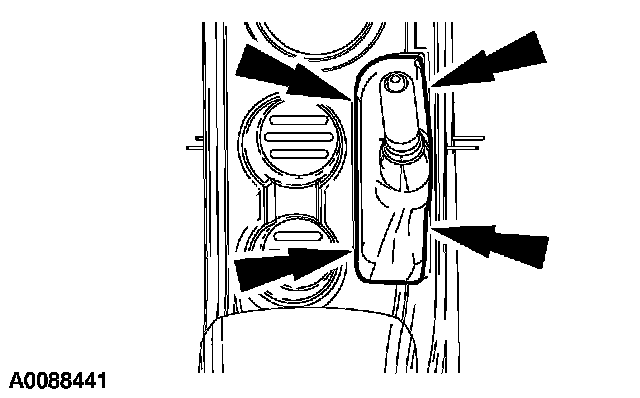

1. Release the parking brake control boot clips at the floor console by pressing inward on the base of the boot.
^ Pull the parking brake control boot up and over the lever.
2. Turn the parking brake control adjustment nut to adjust the parking brake control stroke.
^ Adjust the parking brake control until the parking brake control stroke is 5 notches when pulled.
3. Verify the parking brake is applied.
4. Install the parking brake control boot.
