Home >> Ford >> 2005 >> Escape 4WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Drum Brake System >> Brake Drum >> Diagrams

Brake Drum: Diagrams

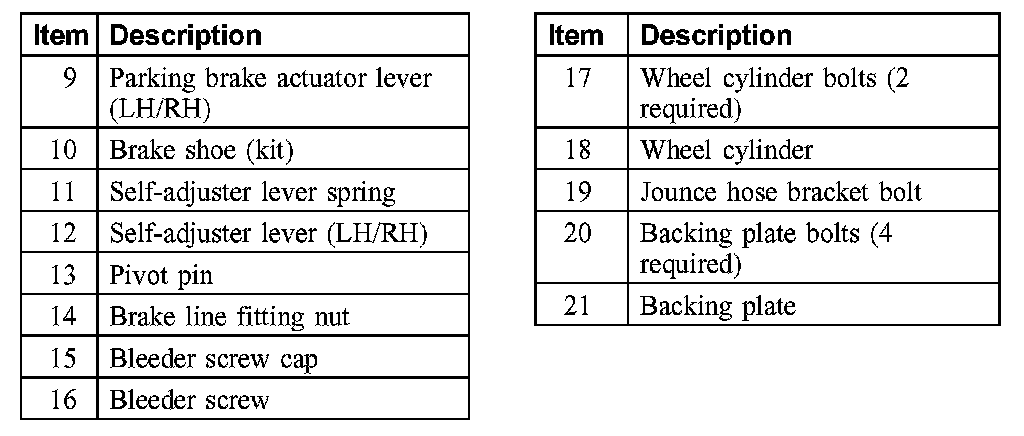

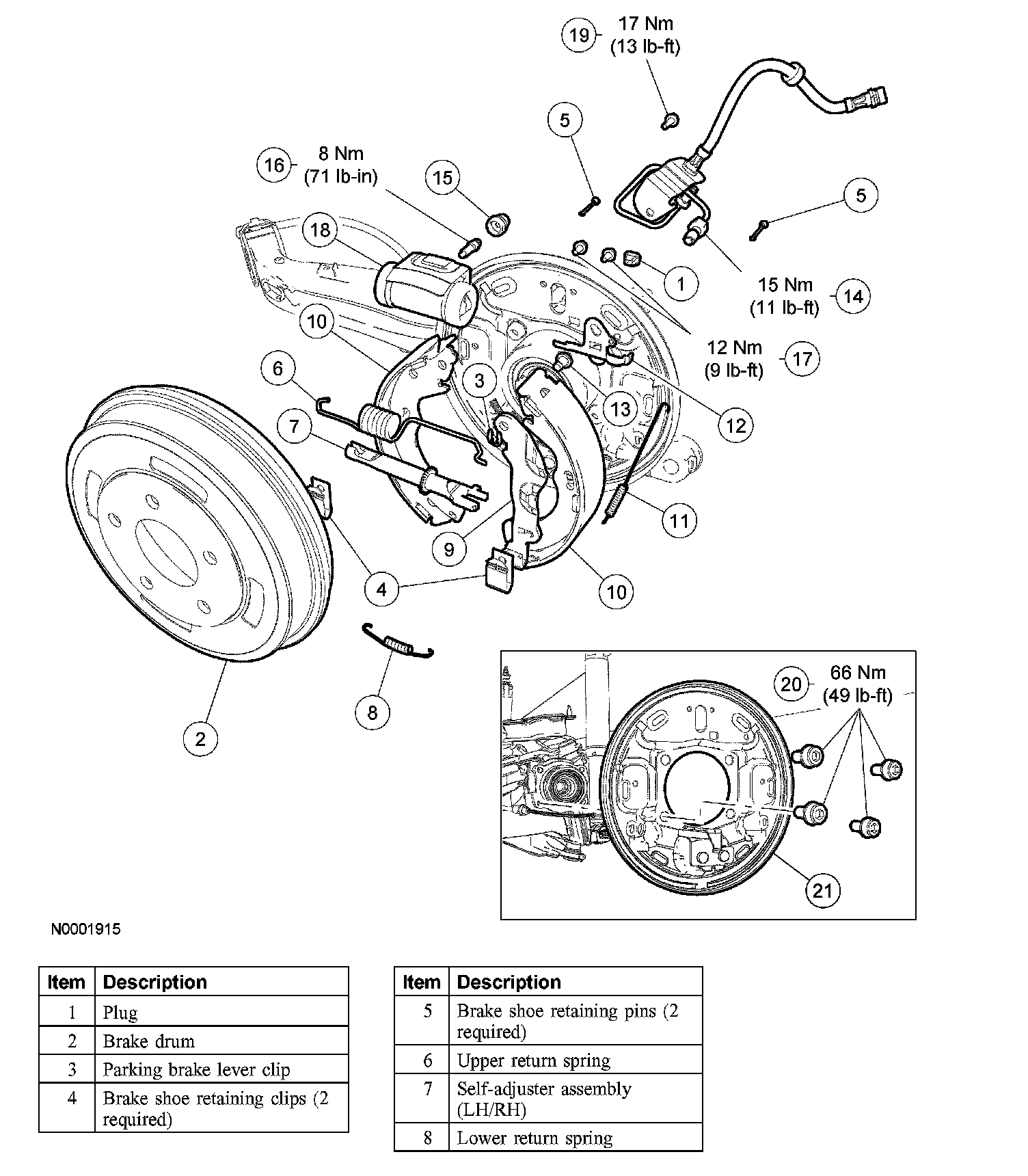

Drum Brake System-Exploded View
