Connector Circuit Reference

Connector Circuit Reference

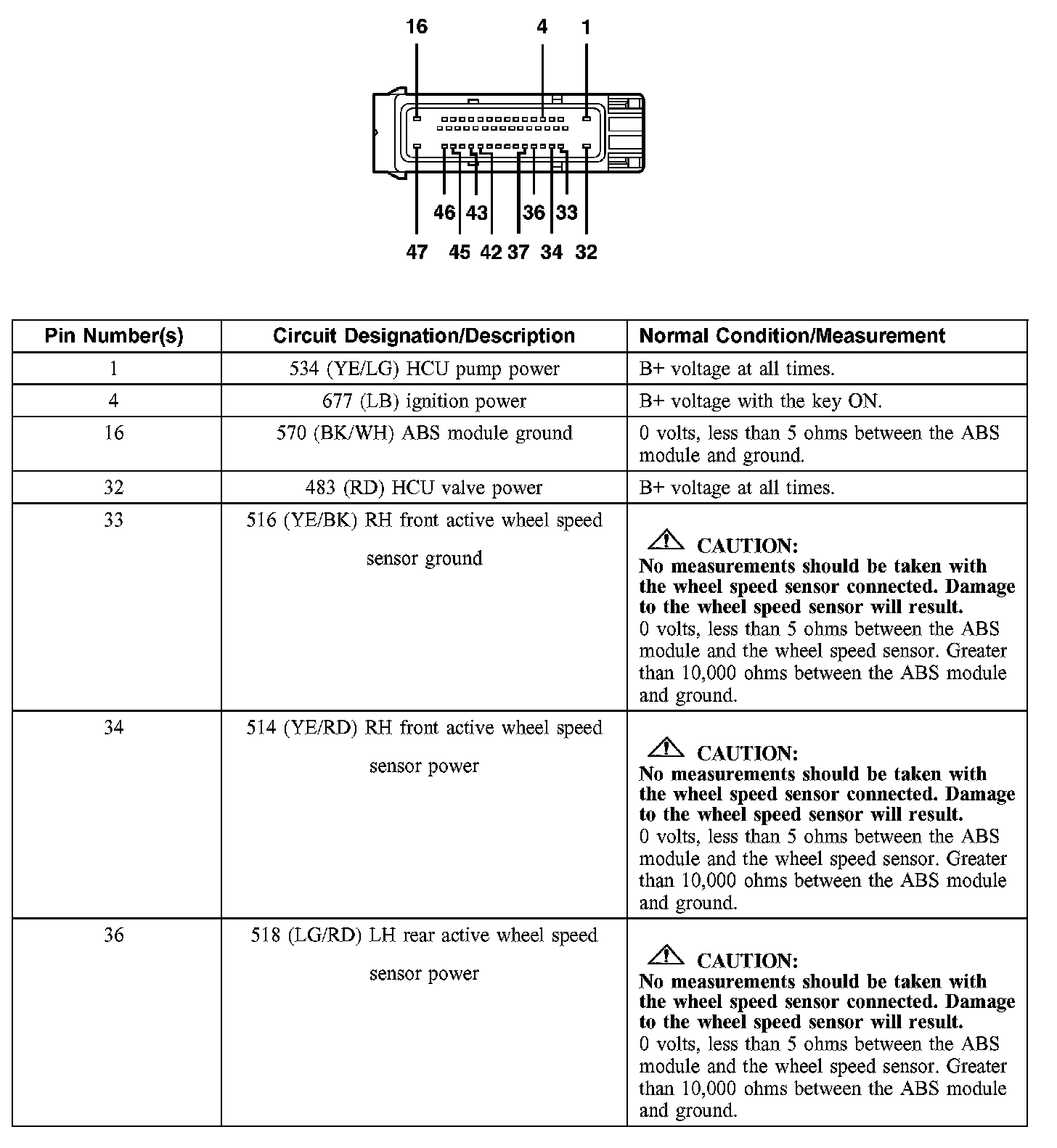

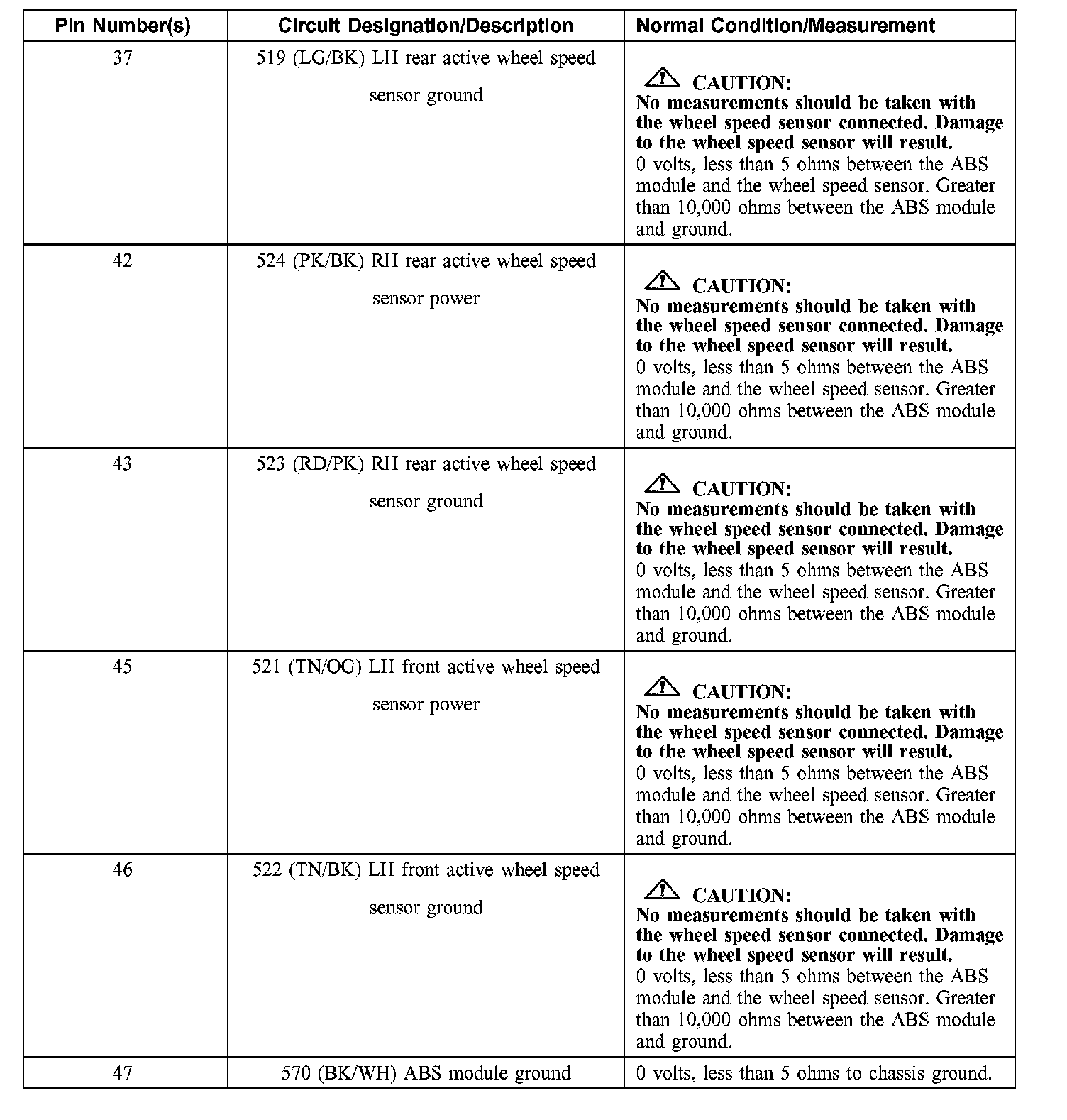

Anti-Lock Brake System (ABS) Module C155

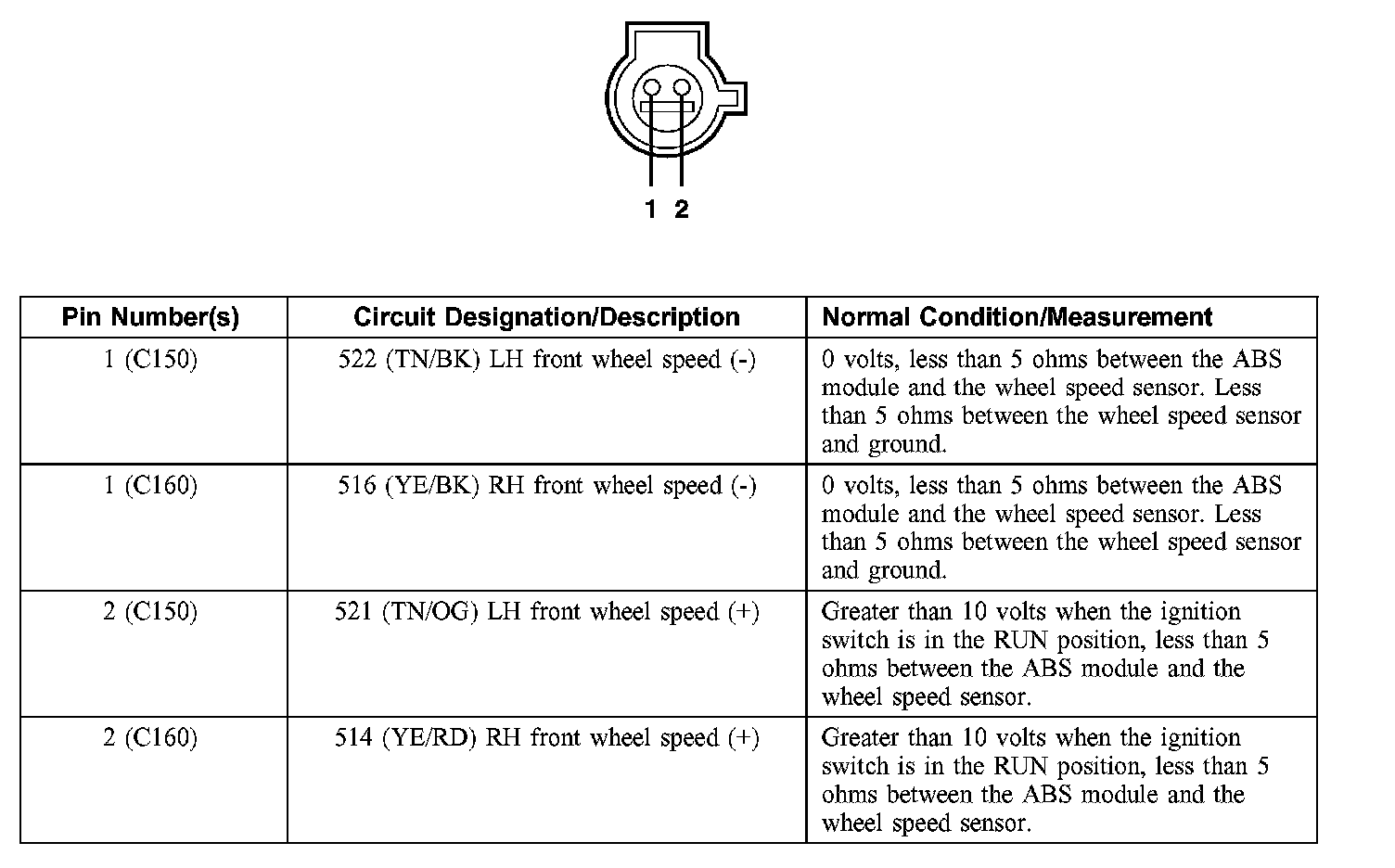

LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160

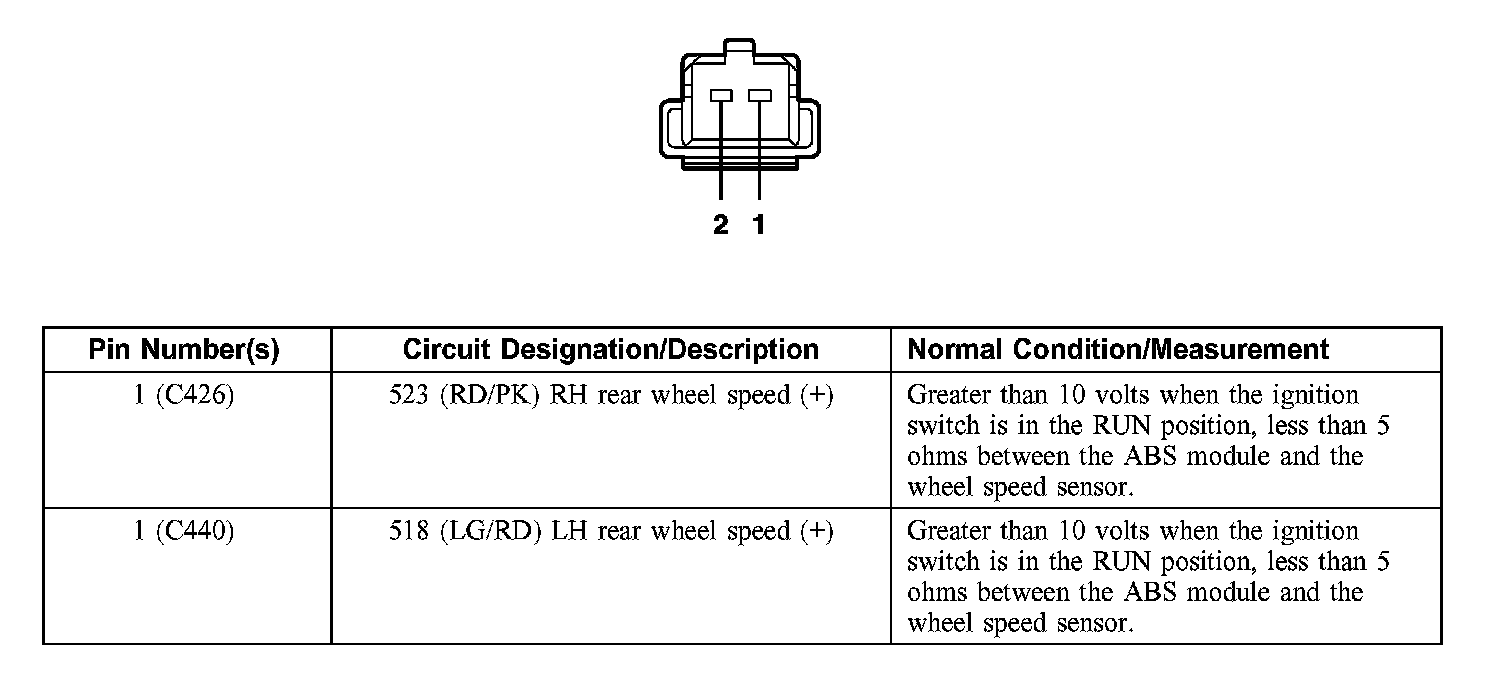

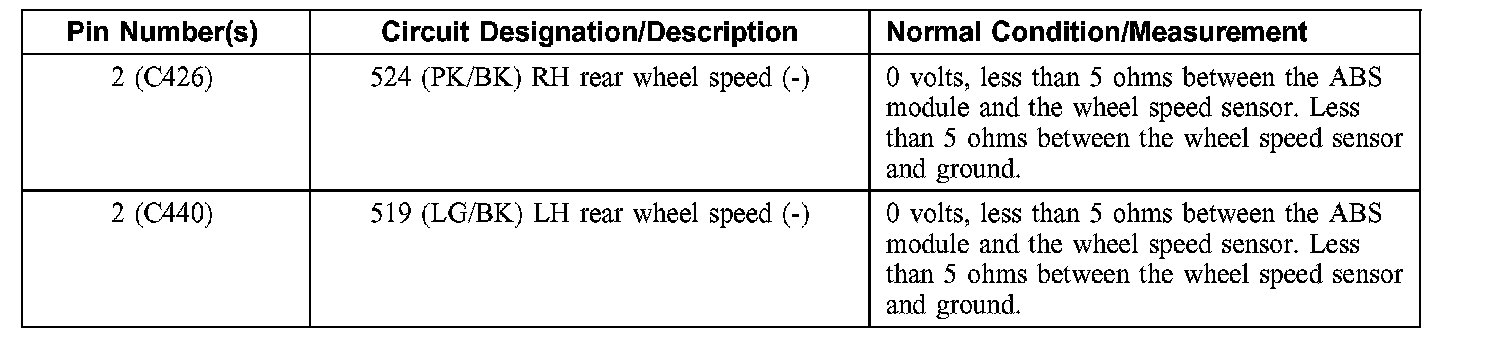

LH Rear Wheel Speed Sensor C440, RH Rear Wheel Speed Sensor C426
