Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Escape 4WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
Diagnostic Trouble Code Tests and Associated Procedures
B1342-B2900 / C1095-C1175:
C1233-C1900 / U1900-U2023:

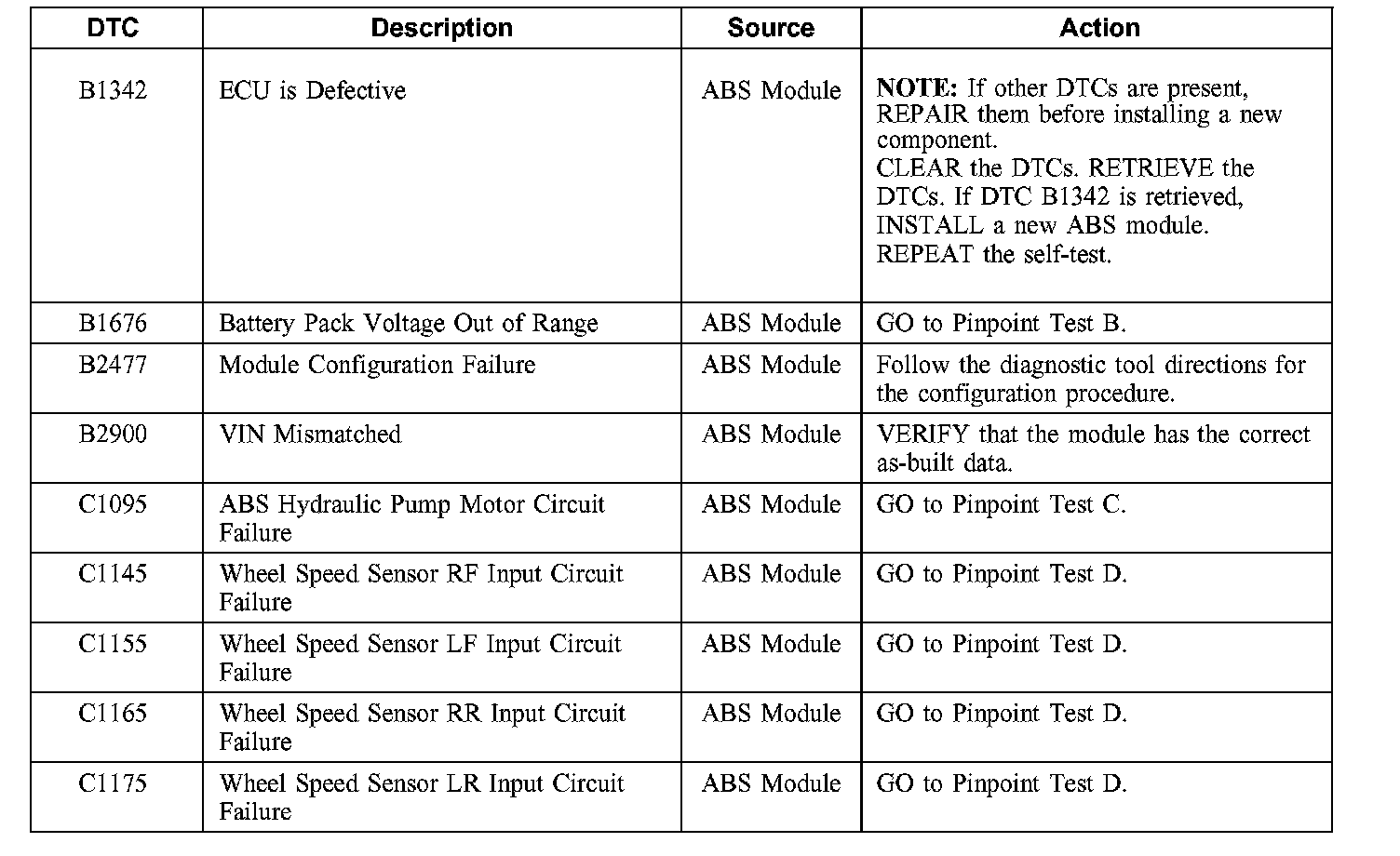

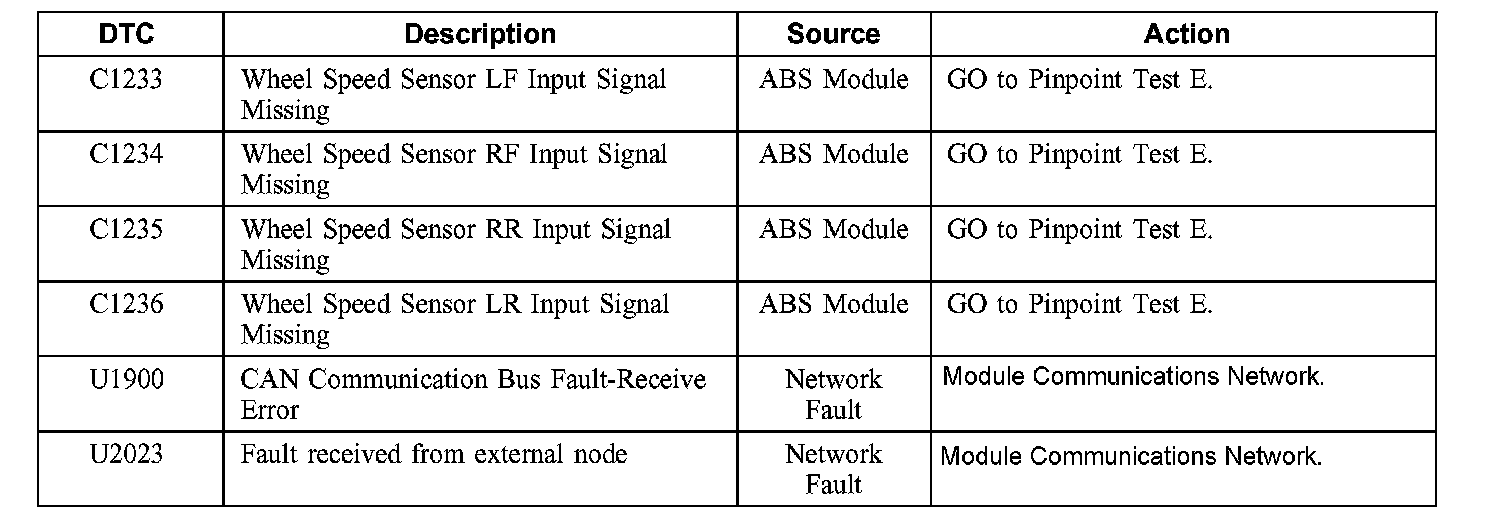

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
