Cowl Moulding / Trim: Service and Repair

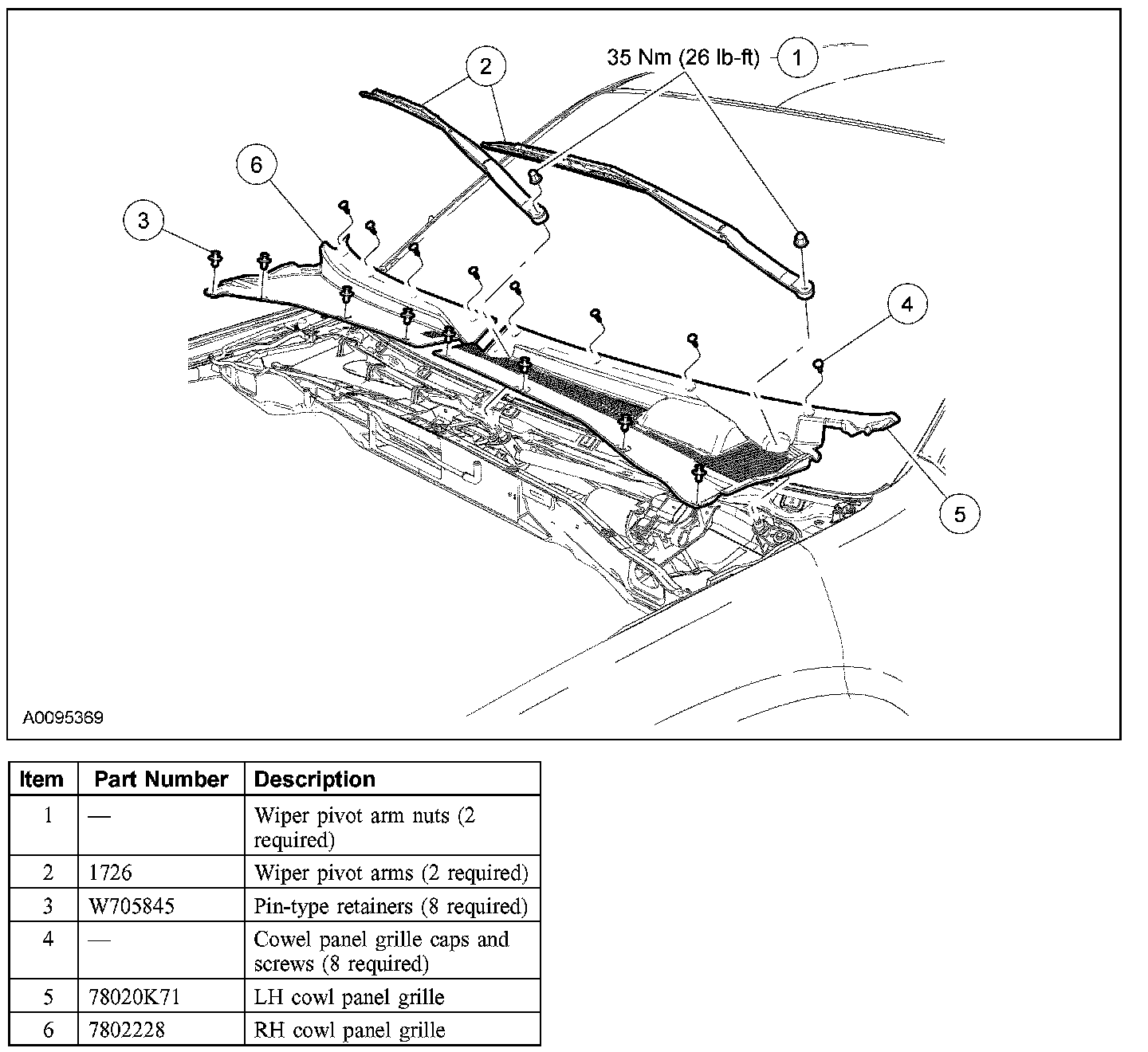

COWL PANEL GRILLE







Removal and Installation
1. Remove the 2 wiper pivot arms nuts.
- To install, tighten to 35 Nm (26 lb-ft).

2. Remove the LH and RH wiper pivot arms.
3. Remove the 8 cowl panel grille pin-type retainers.
4. Remove the 8 cowl panel grille caps and screws.
5. Remove the LH cowl panel grille.
6. Remove the RH cowl panel grille.
7. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
