Power Mirror Switch: Service and Repair

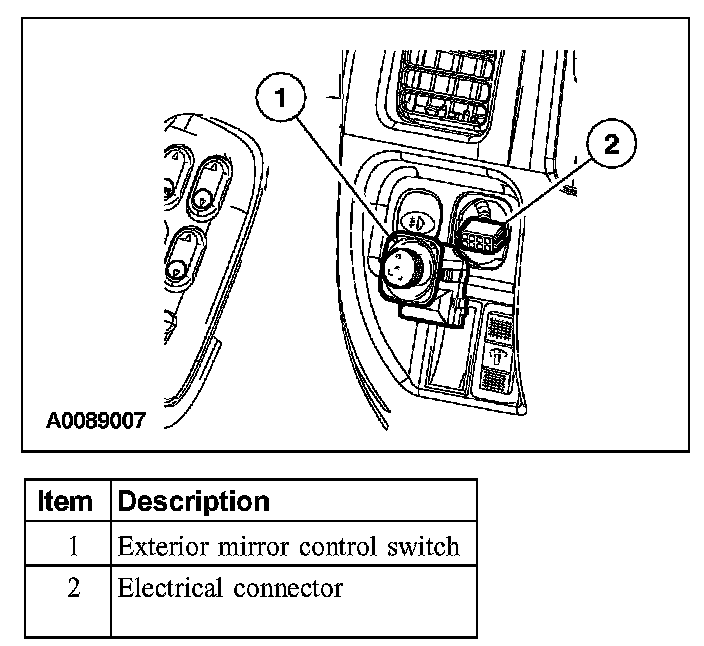

EXTERIOR MIRROR CONTROL SWITCH
Removal and Installation
1.
Remove the exterior mirror control switch.
-
Disconnect the electrical connector.
2.
To install, reverse the removal procedure.
