Test D: The Power Seat Does Not Make Full Travel

PINPOINT TEST D: THE POWER SEAT DOES NOT MAKE FULL TRAVEL

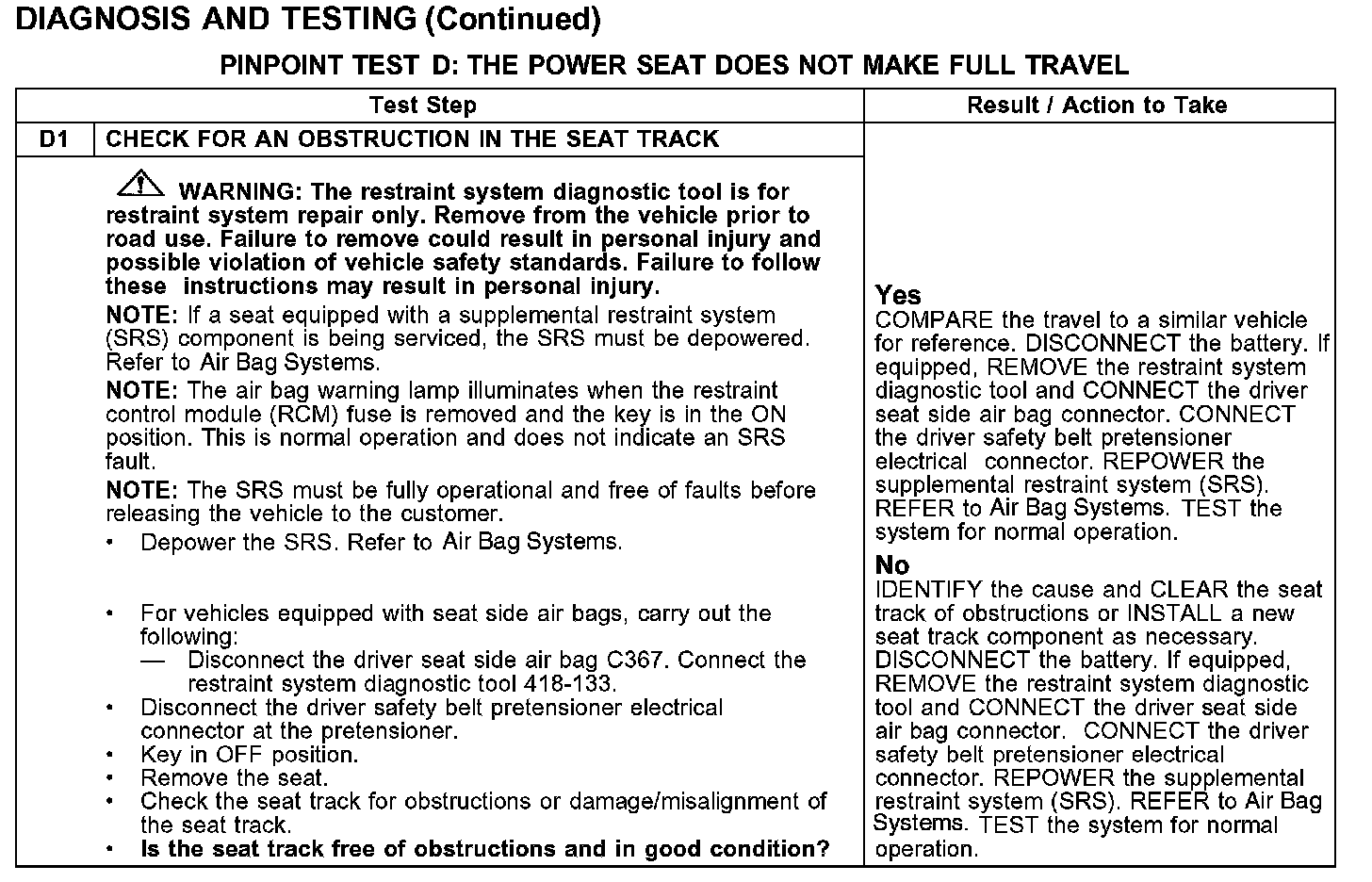

D1:

Normal Operation
The power seat should travel fully horizontal (forward/rearward) and vertical (front up/down and rear up/down).

Possible Causes
- obstructed seat track
- seat track motor and transmission assembly
- seat track
