Disassembly and Assembly

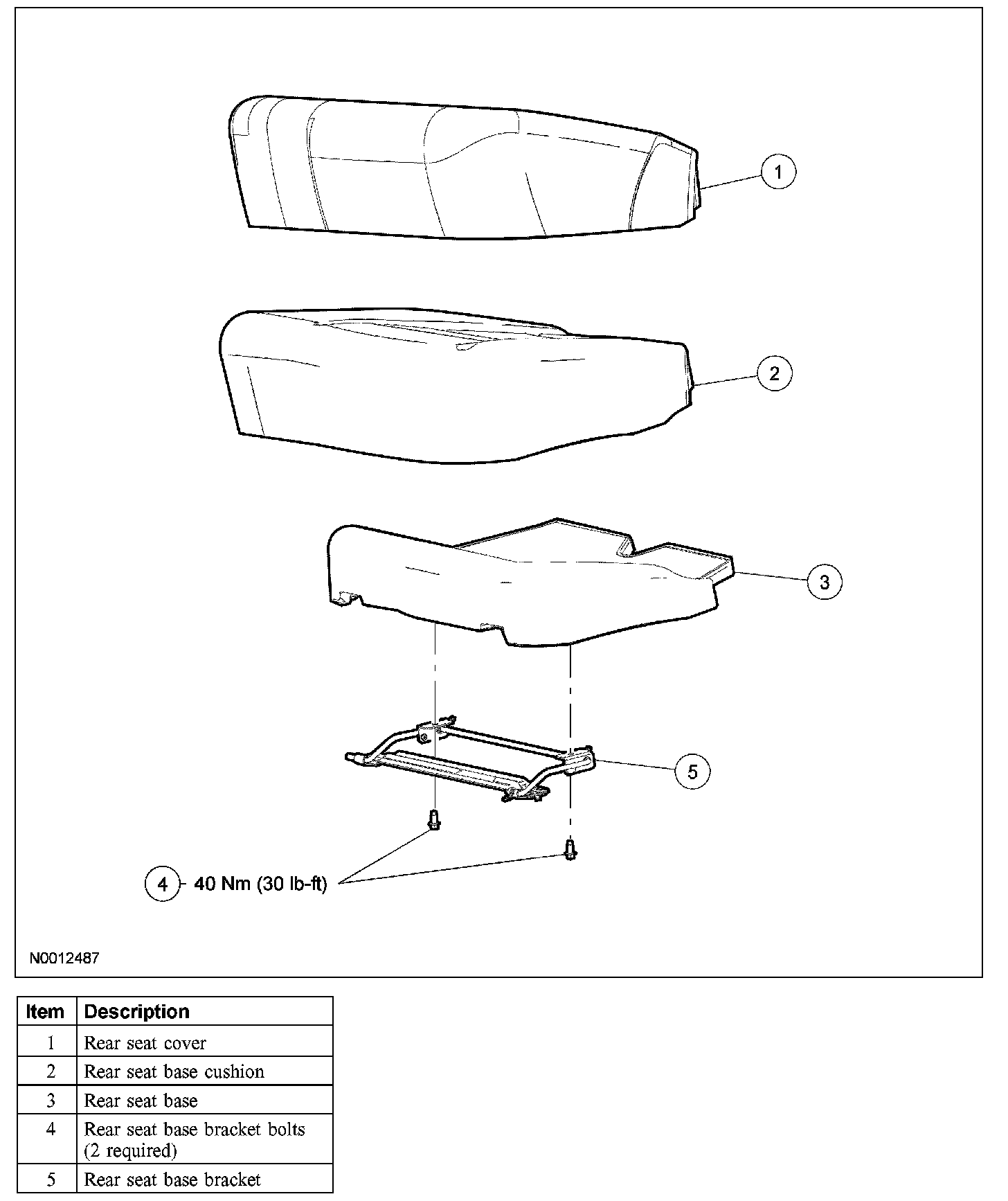

REAR SEAT CUSHION







Disassembly and Assembly
1. Remove the rear seat cushion.
2. Separate the J-strip and unzip the 2 zippers on each side of the cover and remove the rear seat cushion cover.
3. Remove the rear seat base cushion.
4. Remove the rear seat base.
5. Remove the 2 bolts and the rear seat base bracket.
- To install, tighten to 40 Nm (30 lb-ft).

6. To assemble, reverse the disassembly procedure.
