Liftgate Trim Panel

LIFTGATE TRIM PANEL







Removal and Installation

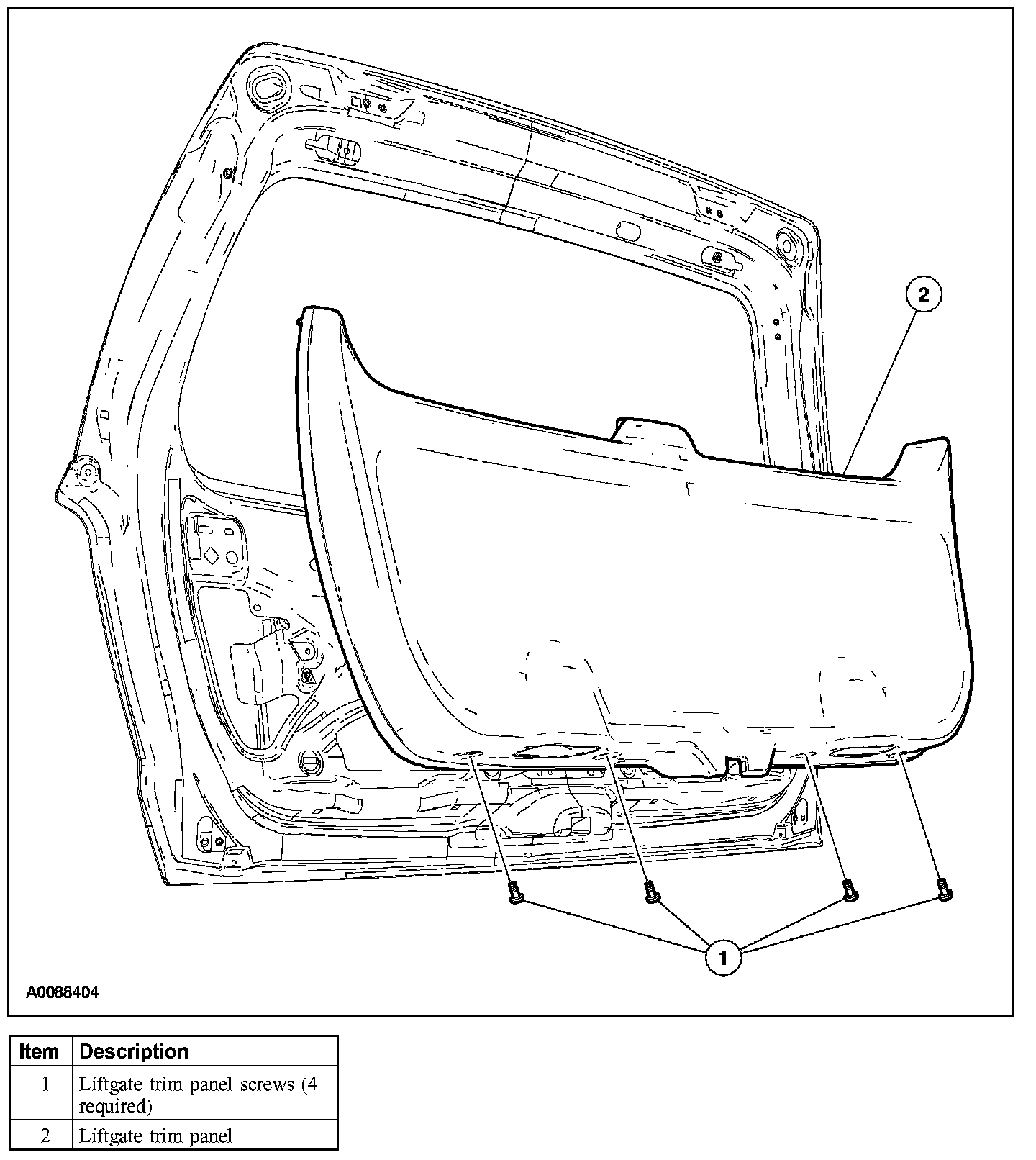

1. Remove the 4 screws and the liftgate trim panel.
2. To install, reverse the removal procedure.
