Hood Latch Release: Service and Repair

HOOD LATCH RELEASE HANDLE

Removal and Installation
1. Remove the hood latch.

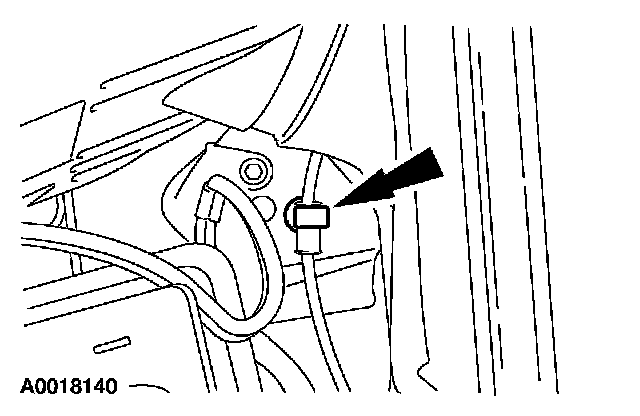

2. Remove the 3 hood latch release handle cable locators.
3. Remove the 2 hood latch release handle screws.
- To install, tighten to 6 Nm (53 lb-in).

4. NOTE: The hood latch release handle and cable assembly must be pulled through the dash panel into the passenger compartment.

Remove the hood latch release handle and cable assembly.

5. To install, reverse the removal procedure.
