Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

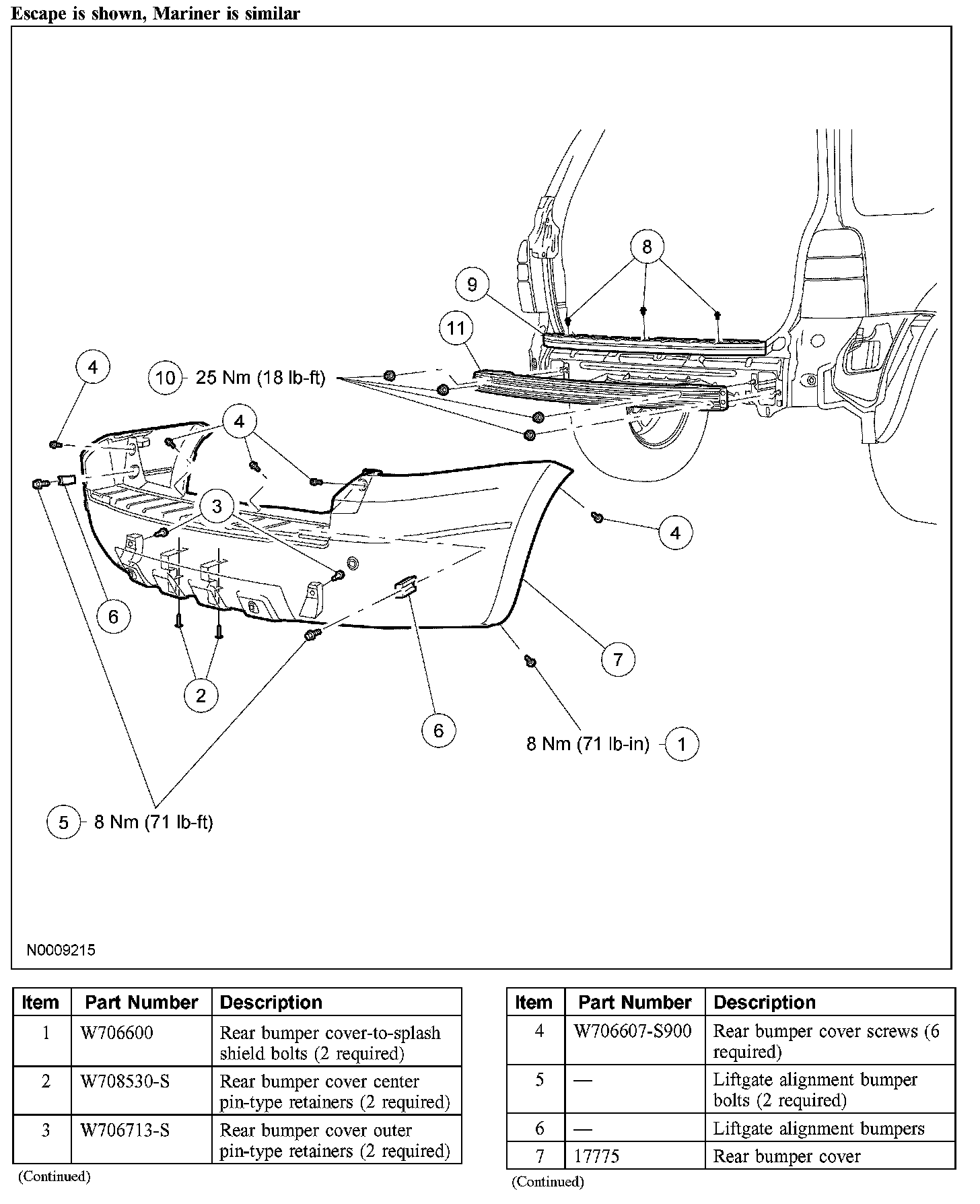

Escape Is Shown, Mariner Is Similar (Part 1):

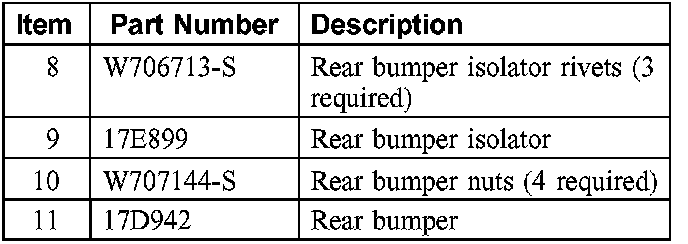

Escape Is Shown, Mariner Is Similar (Part 2):

Exploded Views

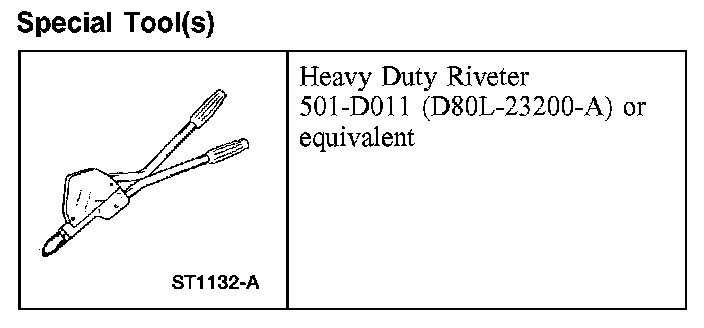

Special Tool(S):

Special Tool(s)

Removal and Installation
1. Remove the rear bumper cover.
2. Remove the 4 rear bumper nuts.
- To install, tighten to 25 Nm (18 lb-ft).

3. Remove the rear bumper.
4. If necessary, remove the rivets and the rear bumper isolator.
- Use the special tool to install the new rivets.

5. To install, reverse the removal procedure.
