Auxiliary Step / Running Board: Service and Repair

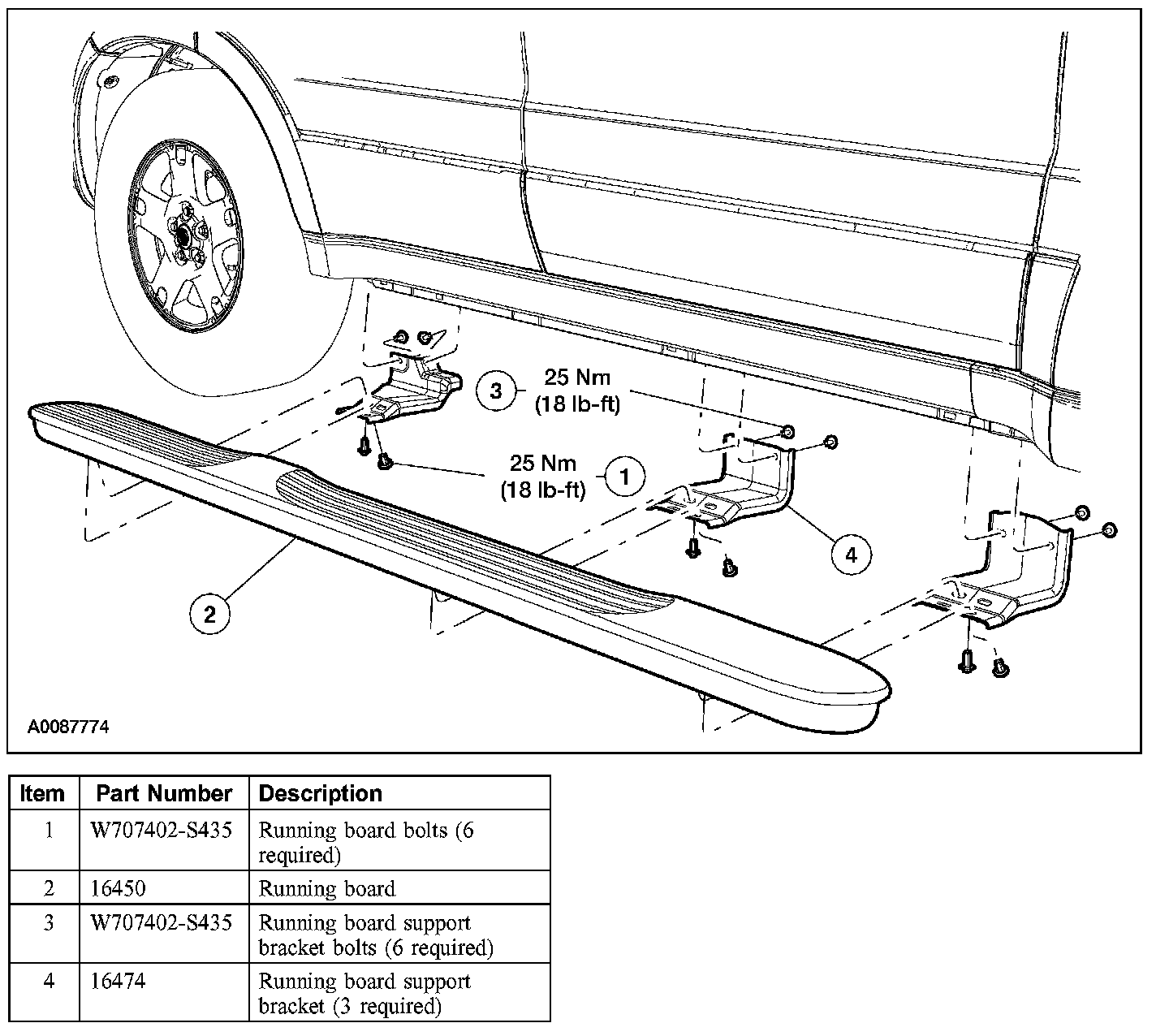

RUNNING BOARD







Removal and Installation
1. Remove the 6 running board bolts.
- To install, tighten to 25 Nm (18 lb-ft).

2. Remove the running board.
3. Remove the 6 running board support bracket bolts and the 3 running board support brackets.
- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
