Speaker Enclosure

SPEAKER ENCLOSURE

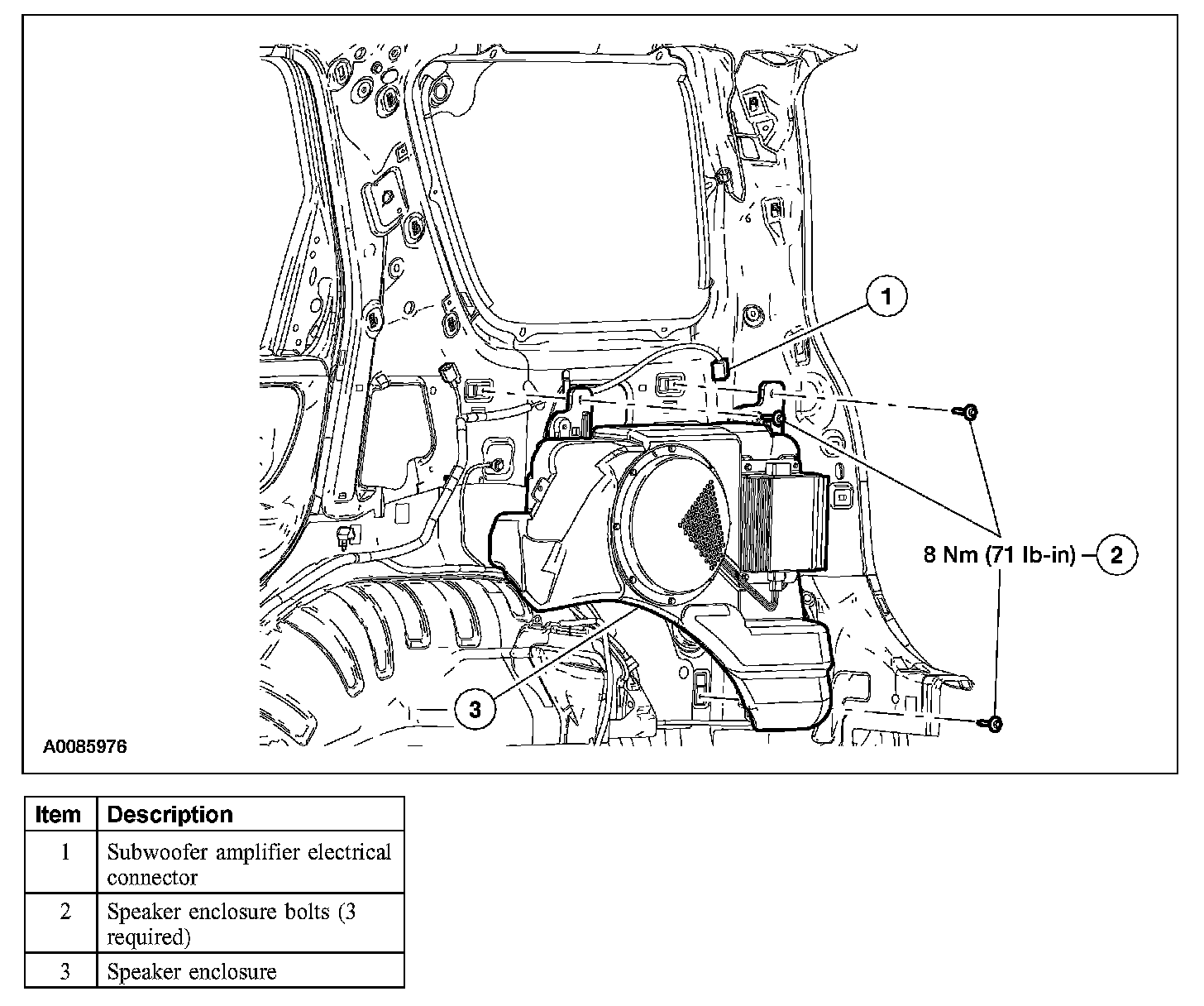

Removal and Installation
1. Remove the RH quarter trim panel.
2. Disconnect the subwoofer amplifier electrical connector.
3. Remove the 3 bolts and the speaker enclosure.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
